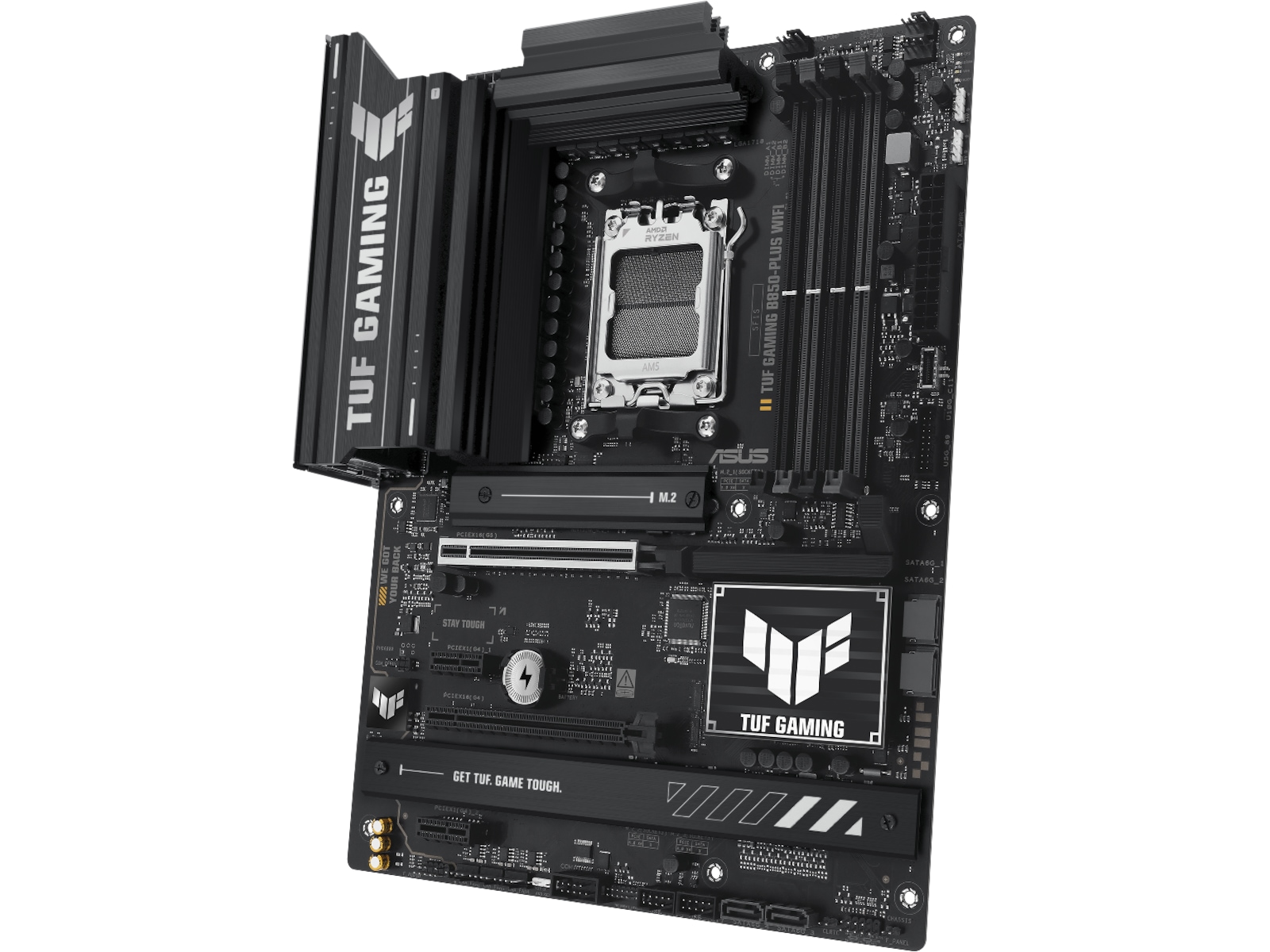

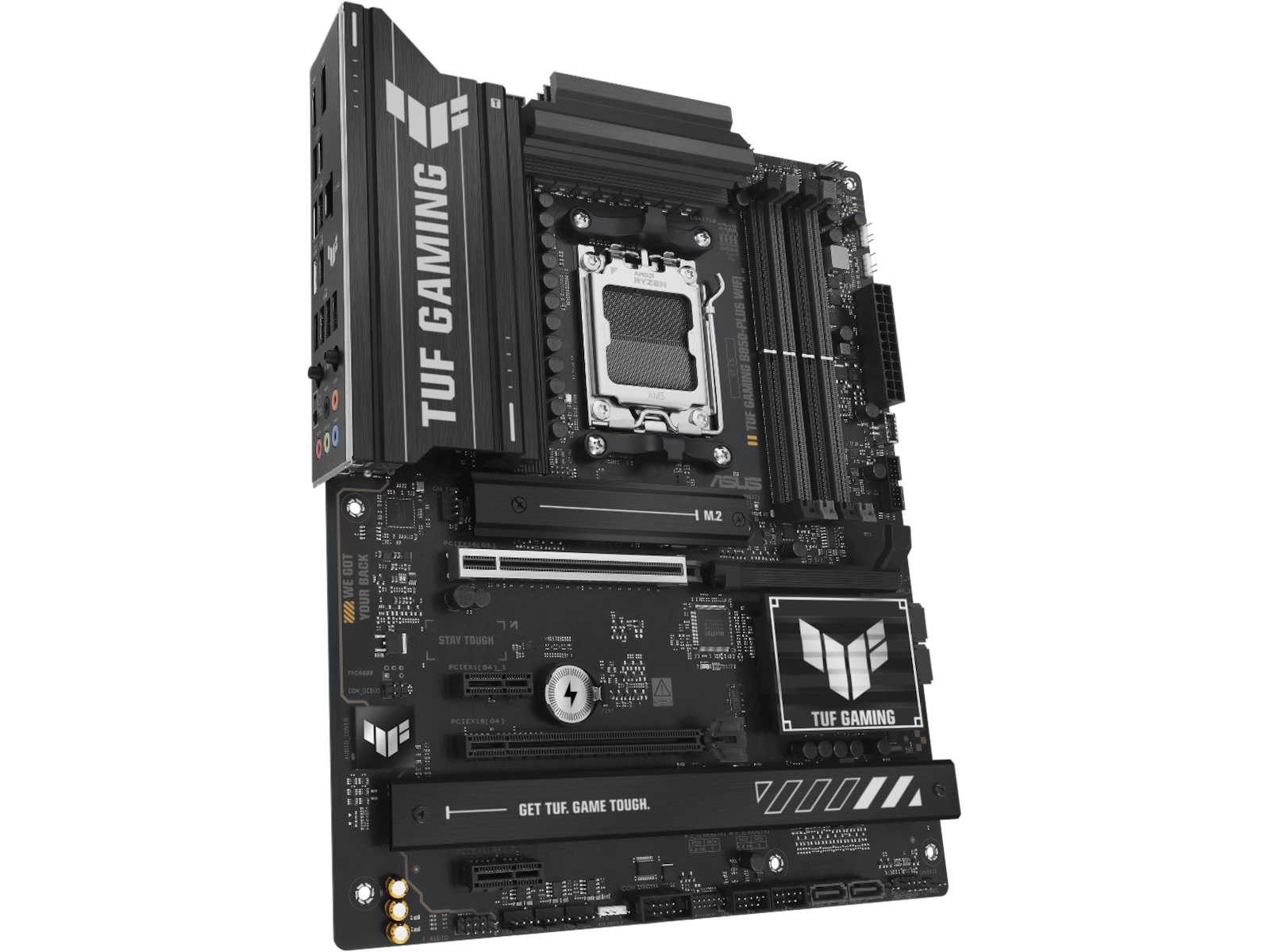

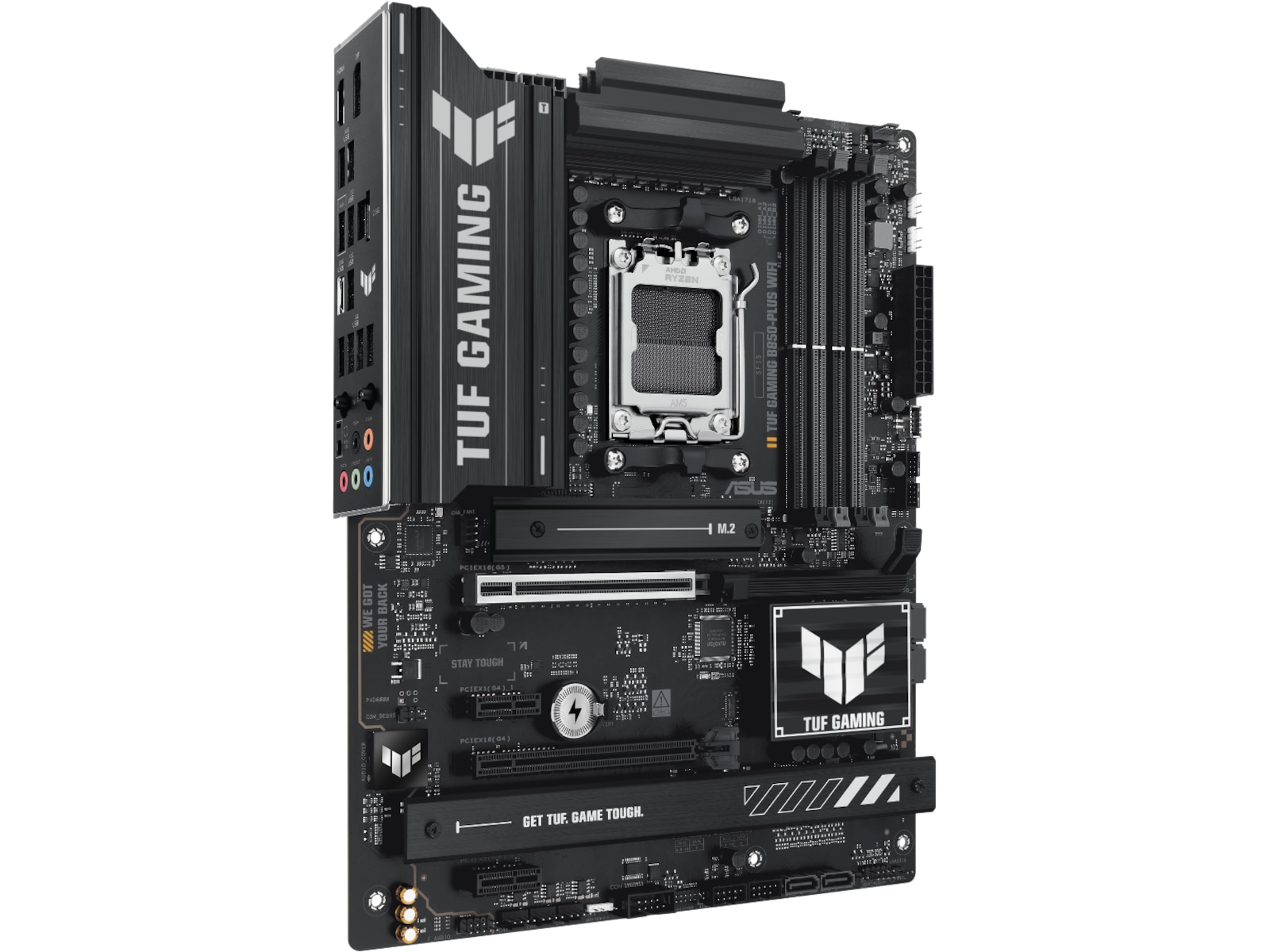

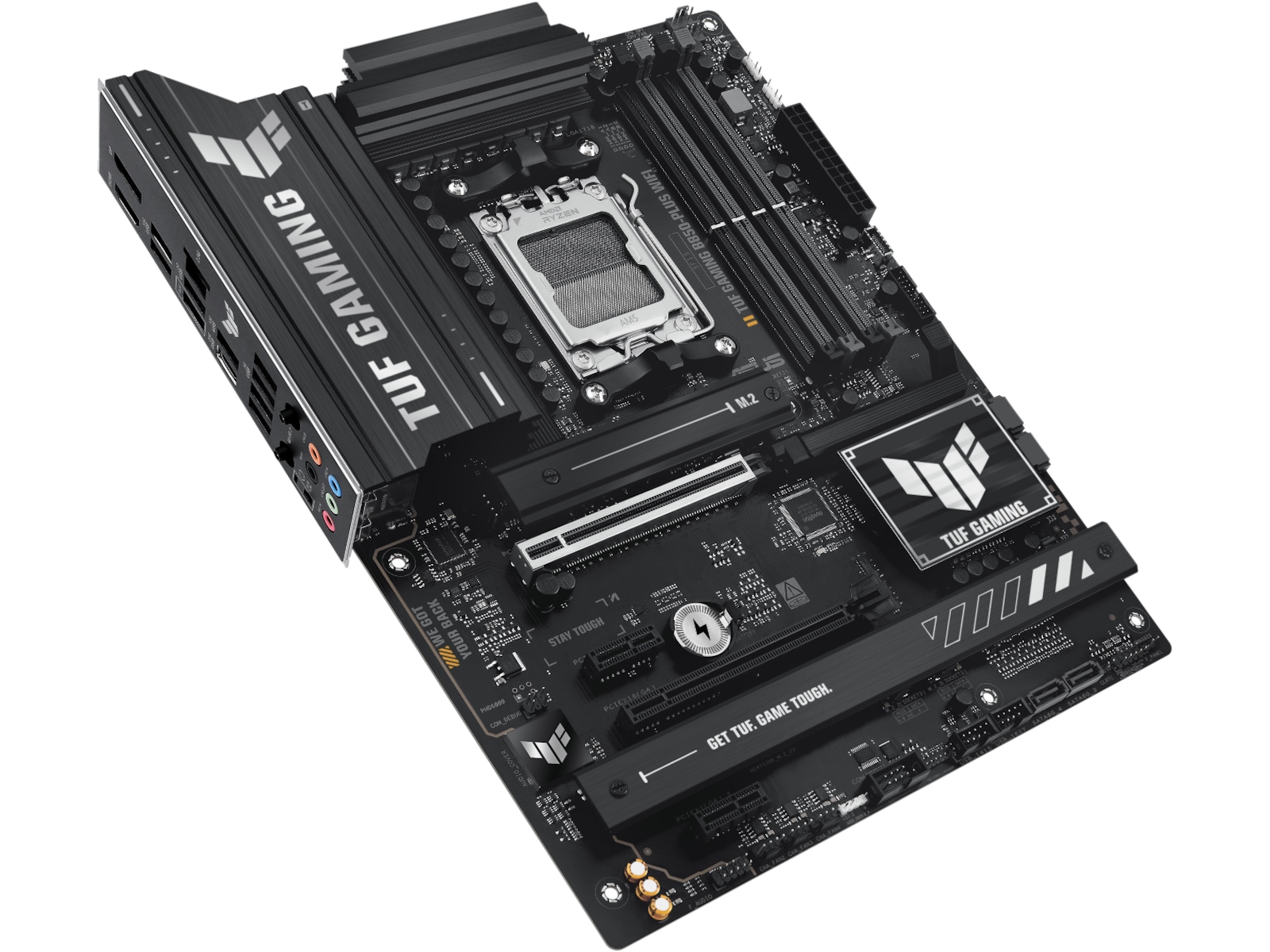

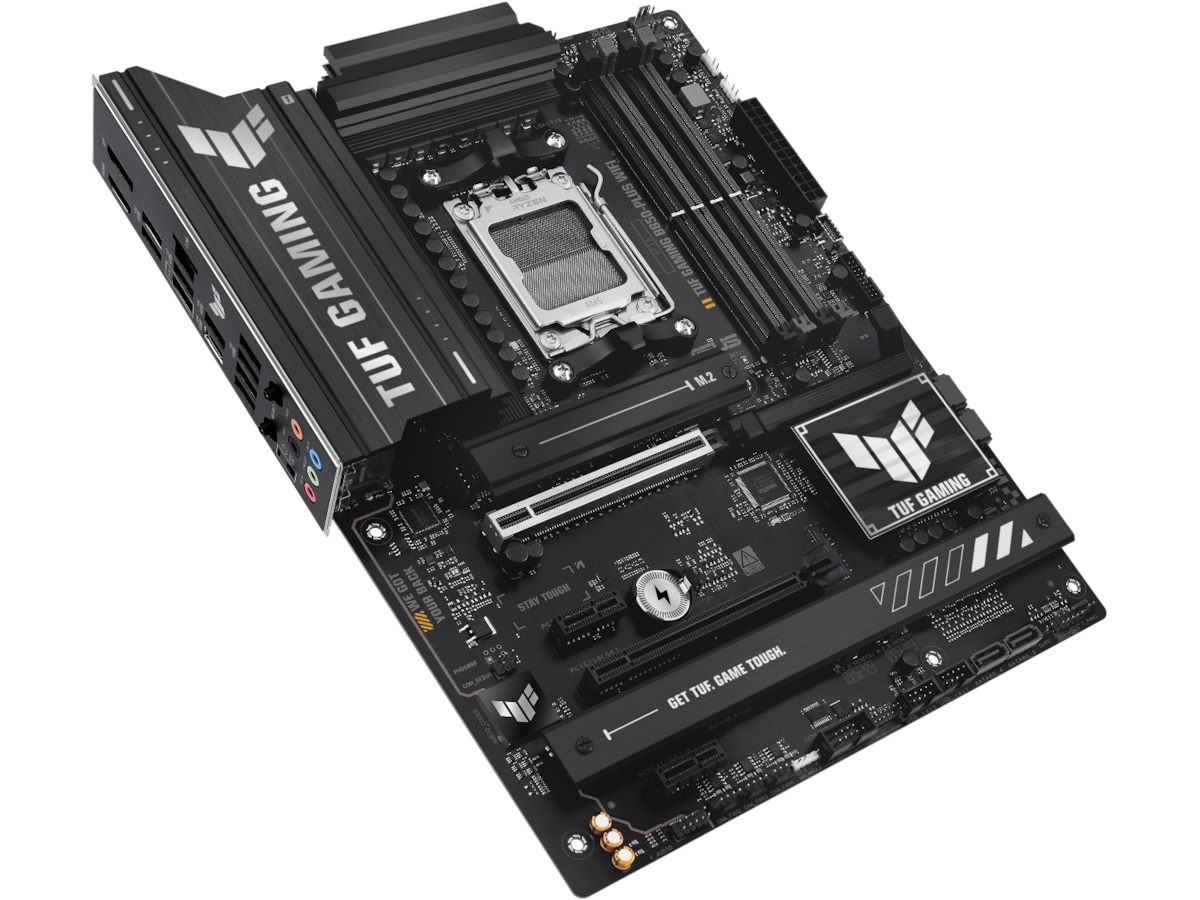

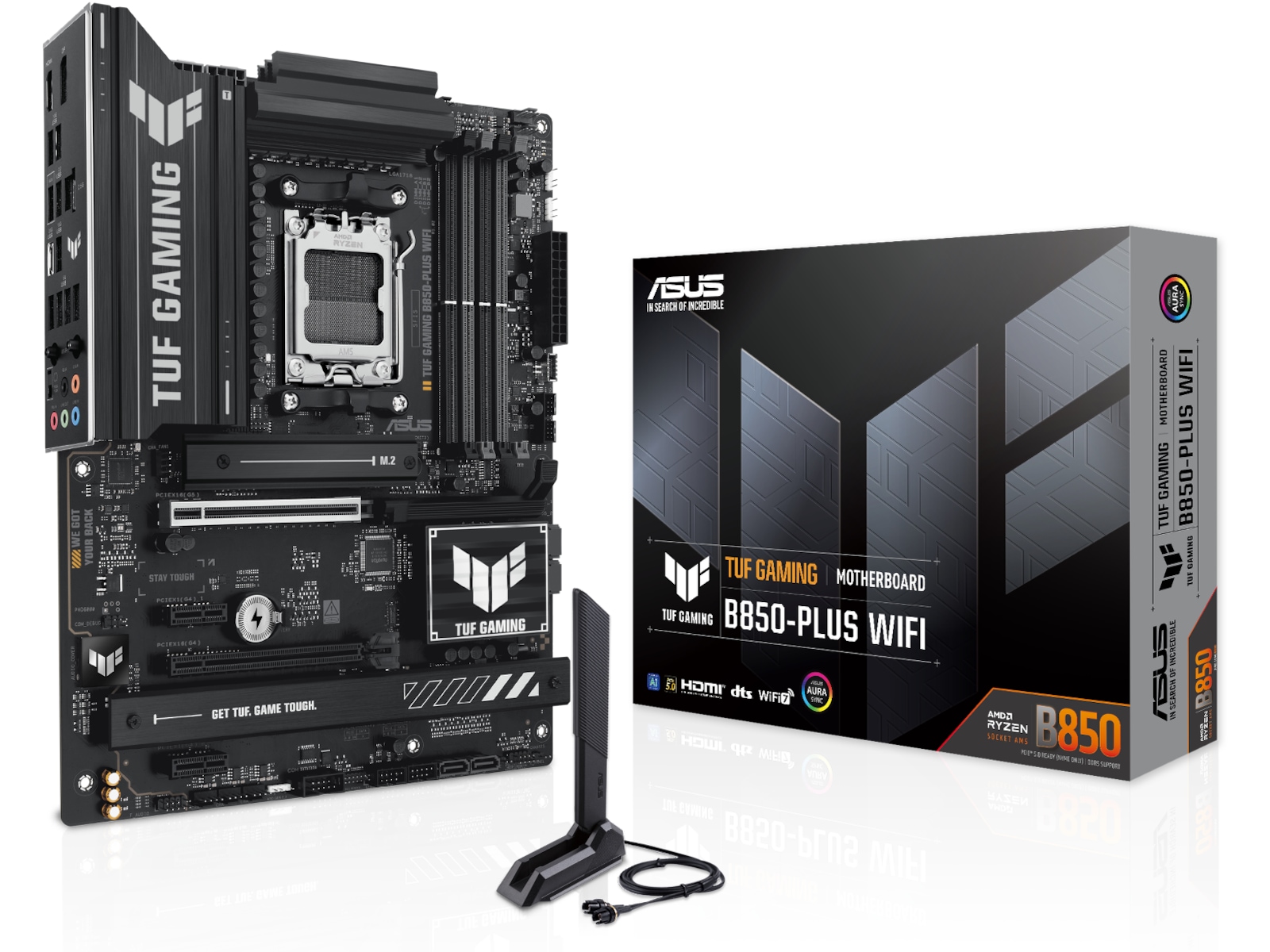

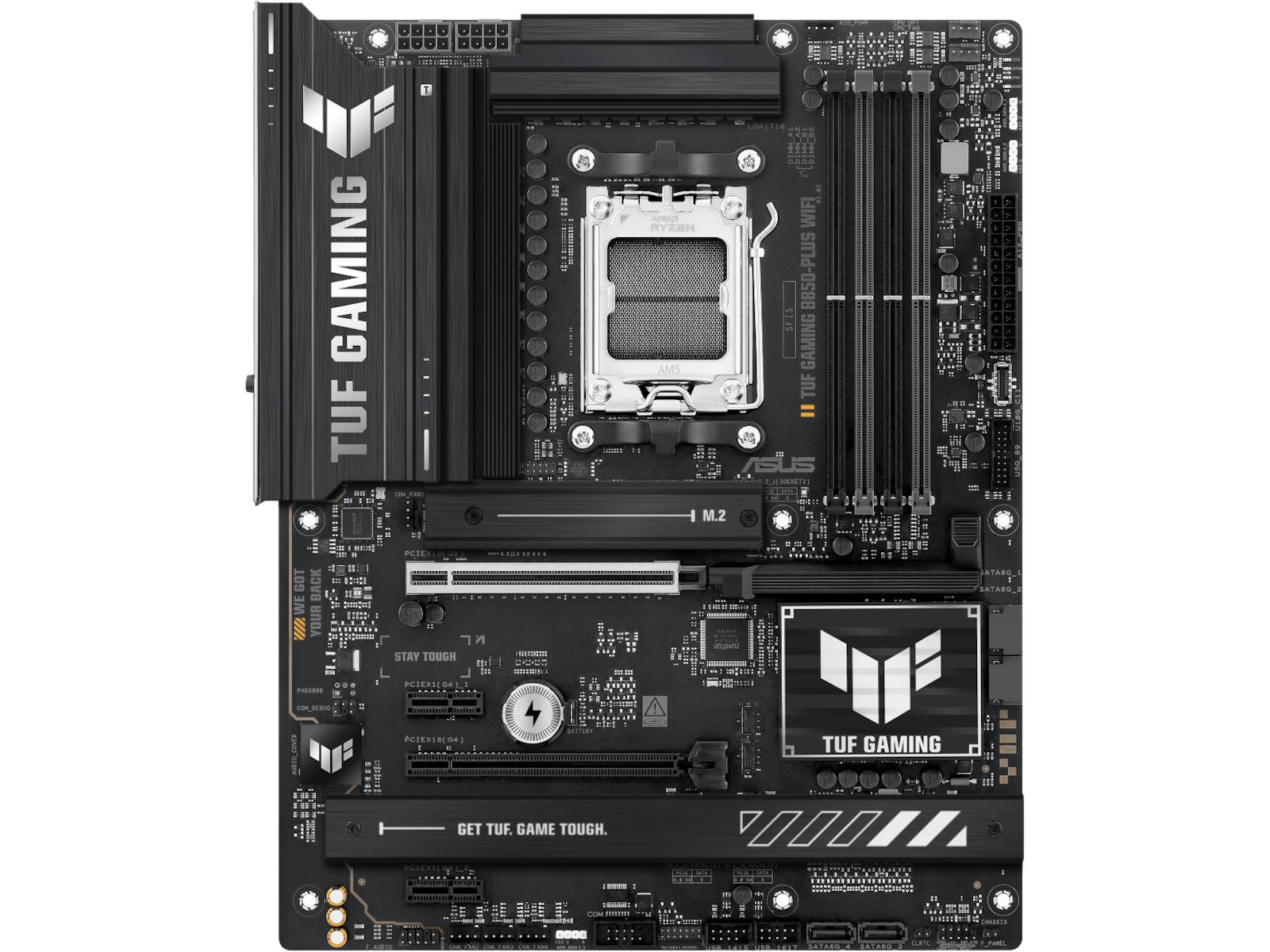

| Model | TUF GAMING B850-PLUS WIFI |
|---|---|
| Produktlinje | ASUS |
| Producentens garanti (måneder) | 36 |
| EAN | 4711387781609 |
| Processor-socket | Socket AM5 |
|---|---|
| RAM-hastighed understøttet | 4000 MHz (O.C.) |
| RAM Slots | 4 DIMM åbninger |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| Chipsættype | AMD B850 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Kompatible processorer | Ryzen |
| Kommentarer om kompatible processorer | Understøtter Ryzen 7000/8000/9000 Serien |
| Model | ATX |
| Understøttet RAM-integritetskon | Ikke-ECC, On-die ECC |
| Strømkontakter | 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | UEFI BIOS, ASUS EZ Flash 3 |
| Hardware egenskaber | DIY Friendly Design, Q-Slot, ASUS DIGI+ VRM, 80 A Power Stage, ASUS Q-Design, ASUS EZ DIY, M.2 Q-Latch, ASUS SafeDIMM, Savitech SV3H712 forstærker, ASUS OptiMem II, 5K Black Metallic Capacitors, ASUS Enhanced Memory Profile (AEMP), Præmonteret I/O-skjold, ASUS Extreme Engine Digi+, ASUS SafeSlot, 14+2+1 Phase Power Design, ASUS ProCool, Q-DIMM, ASUS TPU (TurboV Processing Unit), Audio jack detektions teknologi, ESD Guards, PCIe Slot Q-Release, ASUS Aura Sync, VRM kølelegemedesign, SupremeFX Shielding teknologi, CrashFree BIOS 3, Jack retasking, BIOS FlashBack-knap, Q-LED, Water Pump Header, BIOS FlashBack LED |
| Sov/ Vågn | Aktivering af LAN (wake on LAN = WOL), Vågn på PME |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 |
|---|---|
| Lagringsporte | 4 x SATA-600 (RAID), 3 x M.2 |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| USB/FireWire | USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Type | Lydkort |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Audio codec | Realtek ALC1220P |
| Overensstemmelsesstandarder | High Definition Audio, DTS Sound Unbound |
| Netværk controller | Intel I225-V |
|---|---|
| Netværk | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4 |
| Dataforbindelsesprotokol | 2.5 Gigabit Ethernet, IEEE 802.11g, IEEE 802.11ac, Fast Ethernet, Bluetooth 5.4, IEEE 802.11b, IEEE 802.11a, IEEE 802.11ax (Wi-Fi 6E), Ethernet, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, Gigabit Ethernet |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
|---|
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | EU RoHS, FCC Part 15 Class B, UKCA, VCCI Class B ITE, DisplayPort 1.4, JATE, EU REACH |

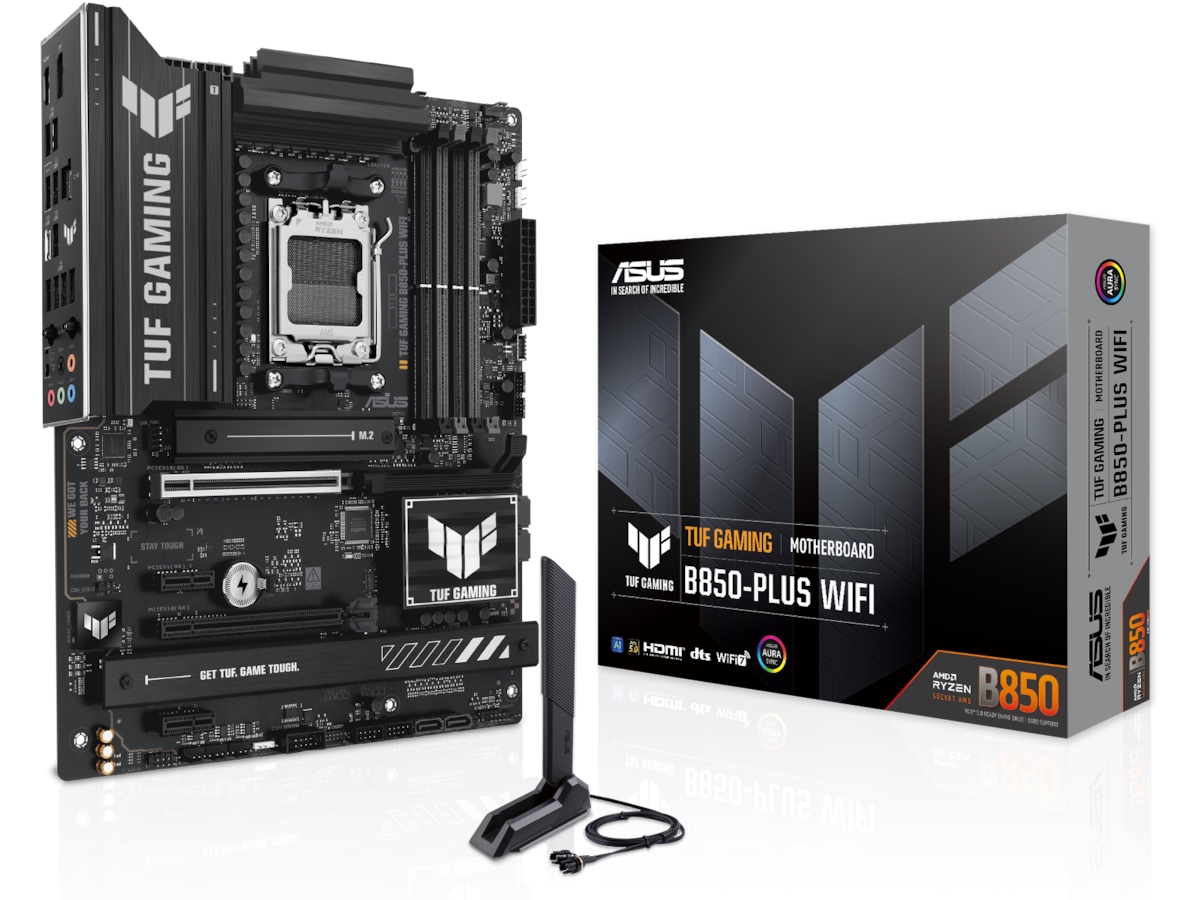

| Inkluderet tilbehør | 2 x M.2 gummipakke, ASUS Wi-Fi Q-antenna, TUF GAMING-mærkat |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi |
|---|
| Ekspansionsåbninger | 1 x PCIe 5.0 x16, 1 x M.2 socket (2280/22.110 M.2 Key M-åbning), 1 x CPU, 4 x DIMM 288-pins, 2 x M.2 socket (2280 M.2 Key M-åbning), 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1, 1 x PCIe 4.0 x16 (x8/x4 modus) |
|---|
| Grænseflade (lagring) | PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 |
|---|

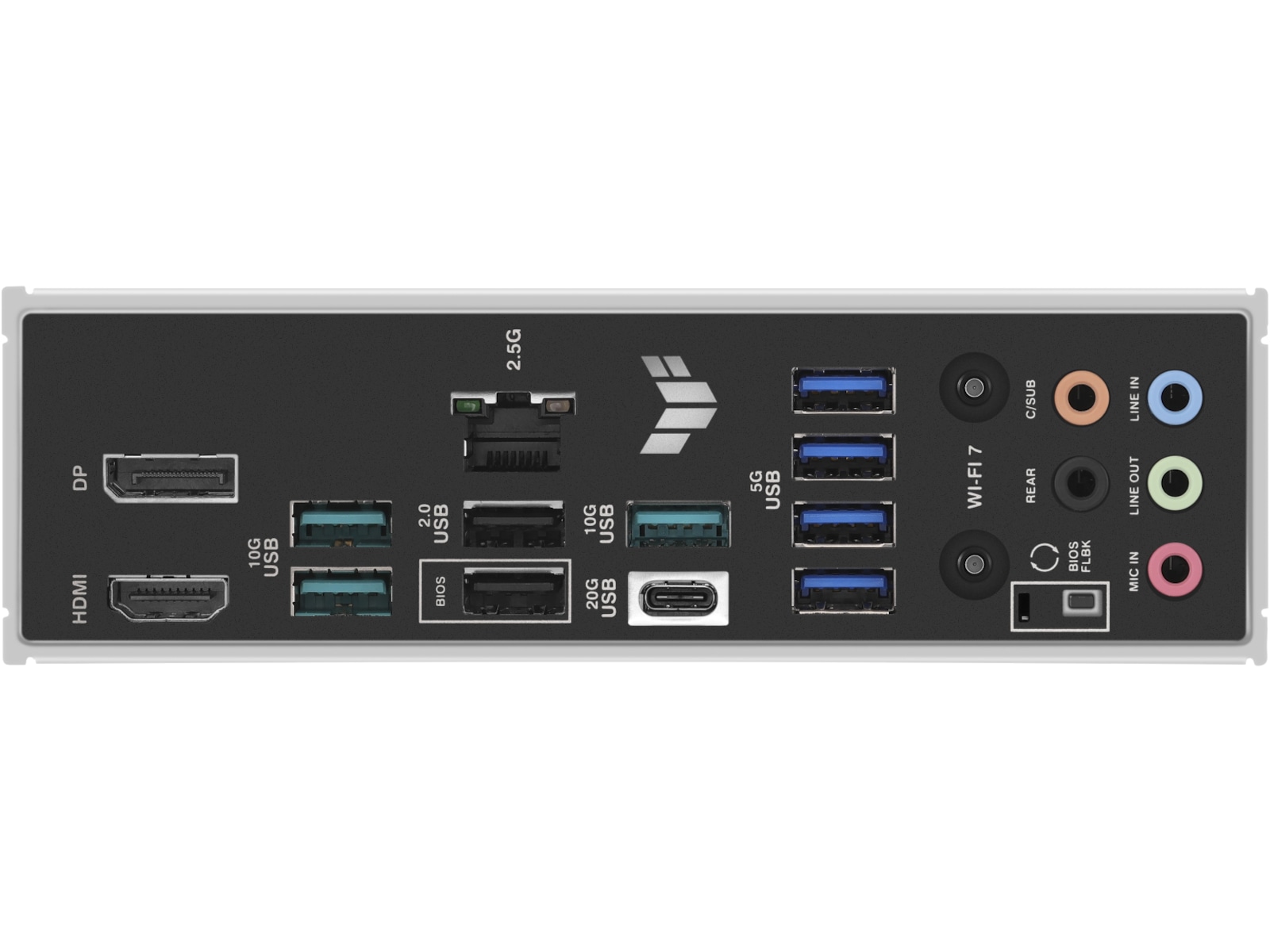

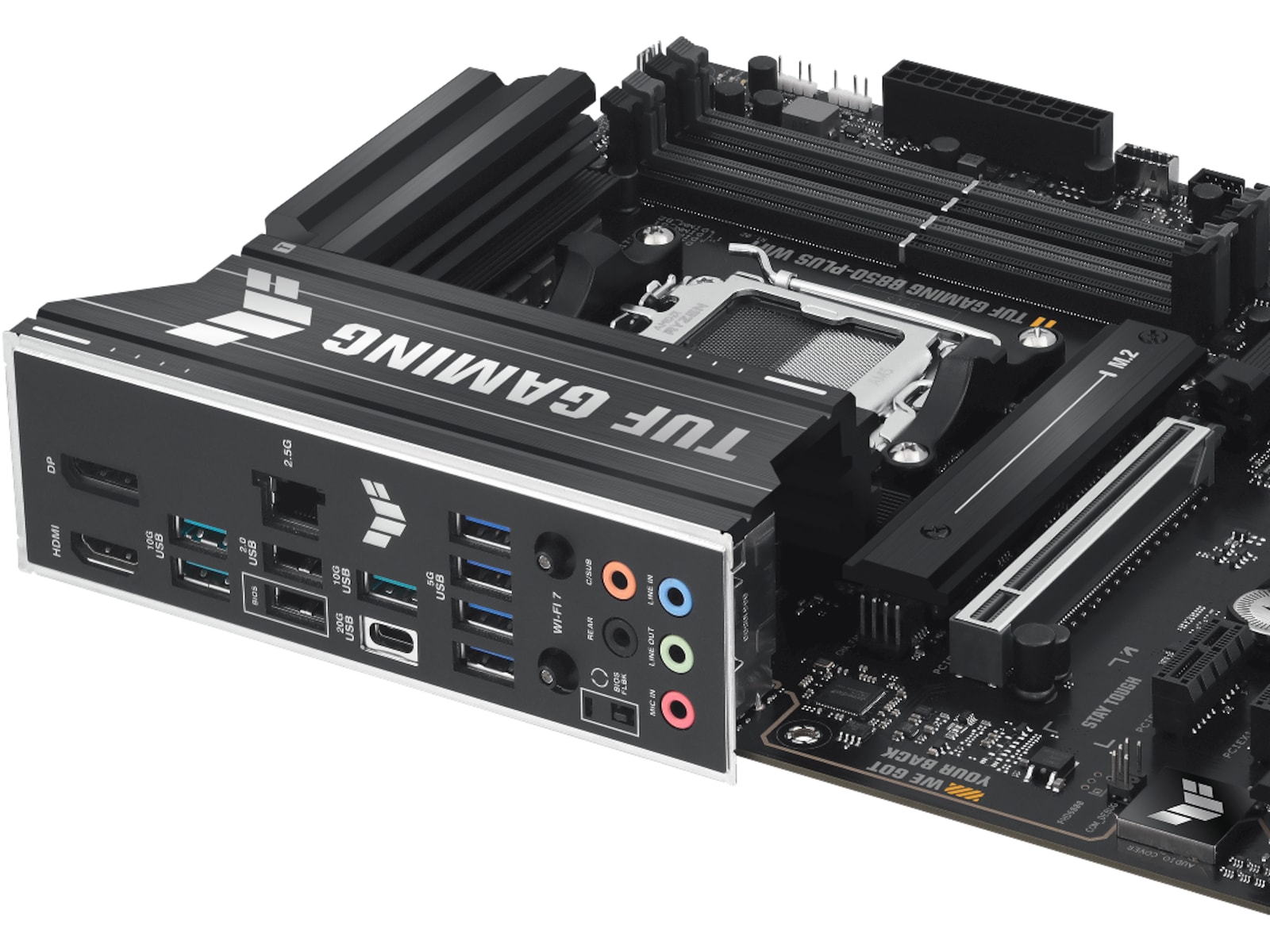

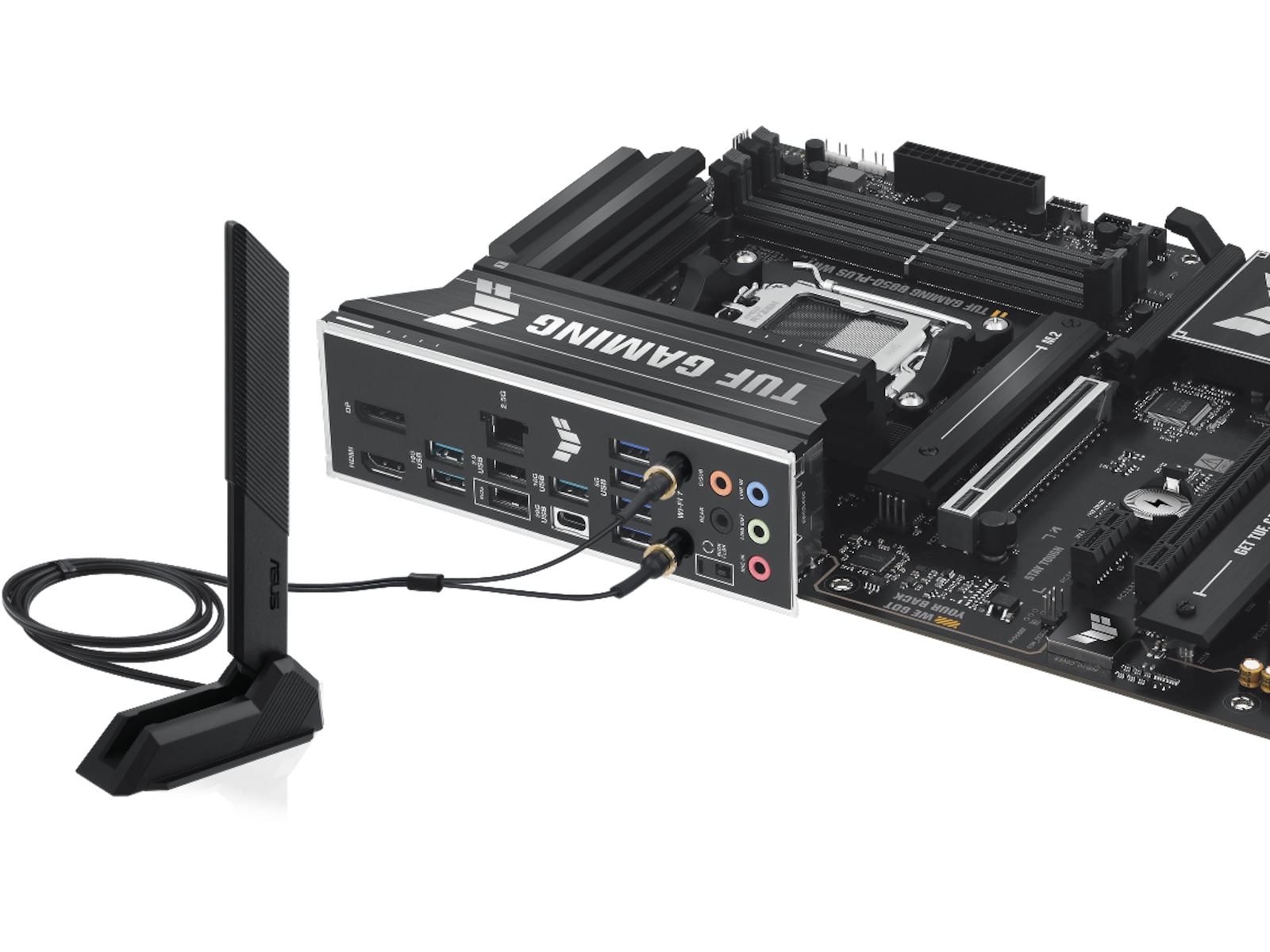

| Interface | 1 x USB-C 3.2 Gen2x2, 1 x HDMI, 1 x audio linje-ud - mini-jack, 3 x USB 3.2 Gen 2, 1 x DisplayPort, 2 x antenne, 1 x SPDIF-ud, 1 x LAN (2.5Gigabit Ethernet), 4 x USB 3.2 Gen 1, 1 x mikrofon - mini-jack, 2 x USB 2.0 |
|---|
| Interne interfaces | 1 x seriel - intern stik, 2 x USB 3.2 Gen 1 - intern stik, 1 x Thunderbolt - intern stik, 1 x audio - intern stik, 4 x USB 2.0 - intern stik, 1 x USB-C 3.2 Gen 2 - intern stik |
|---|
| Software inkluderet | ASUS AI Suite III, WinRAR, Armoury Crate, PC Cleaner, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS Turbo App, Sonic Studio III, Sonic Radar III, MyAsus |
|---|
