| Produktlinje | Gigabyte |
|---|---|

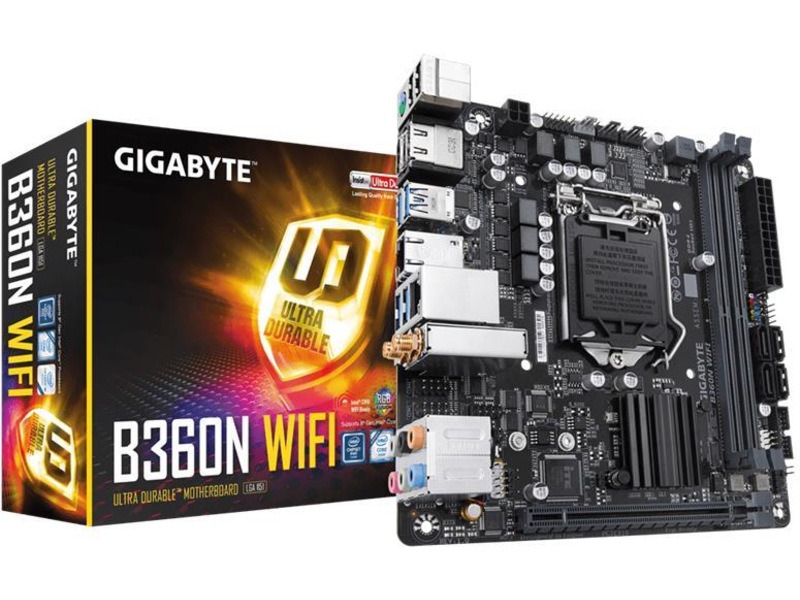

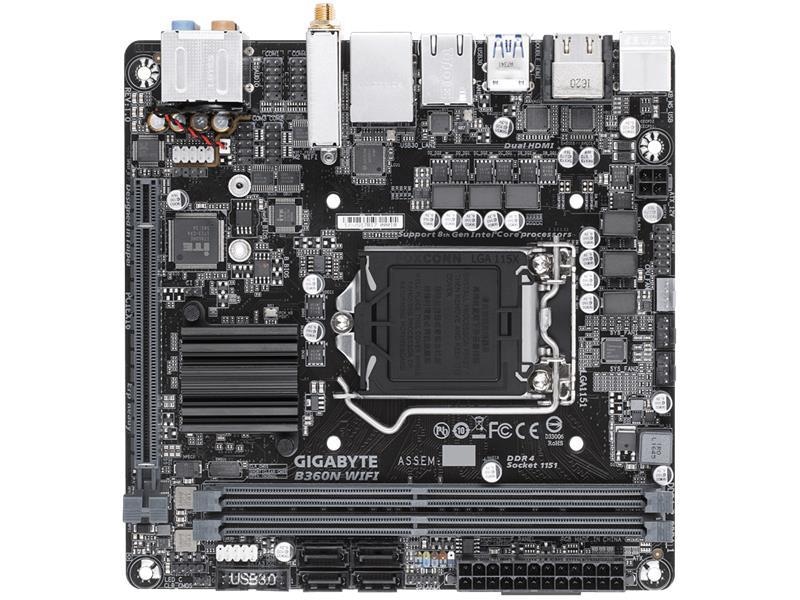

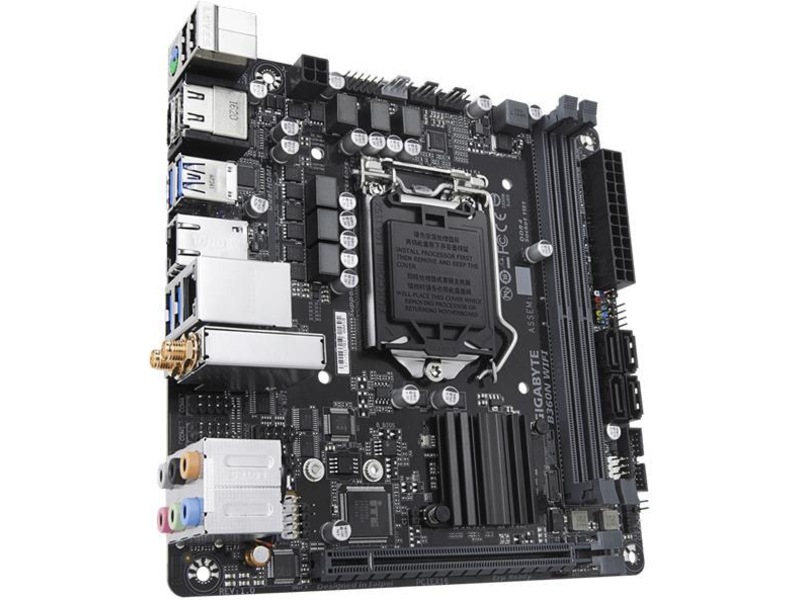

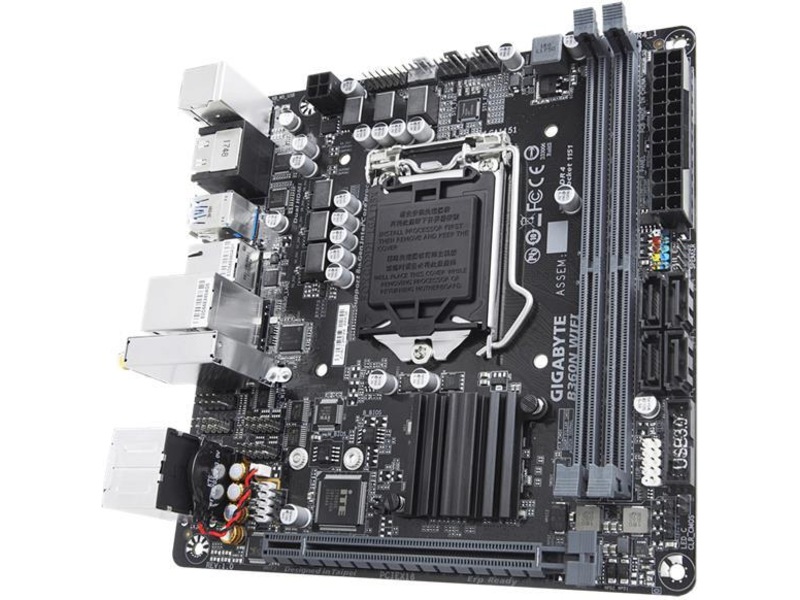

| Model | B360N WIFI |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331803360 |
| Processor-socket | LGA1151 Socket |
|---|---|
| Kommentarer om kompatible processorer | Understøtter 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron |
| Chipsættype | Intel B360 |
| RAM Slots | 2 DIMM slots |
| Model | Mini ITX |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Strømkontakter | 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| RAM-hastighed understøttet | 2133 MHz, 2400 MHz, 2666 MHz |
| Kompatible processorer | Core i7, Pentium, Core i5, Core i3, Celeron |
| Understøttet RAM-integritetskon | ECC (drift i ikke-ECC tilstand), Ikke-ECC |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Hardware egenskaber | Anti-Sulfur Design, Audio Noise Guard, Ultra Durable, Intel Optane Memory Ready, Game Boost, AutoGreen, On/Off Charge, CEC 2019 Ready, Q-Flash, 4K Ultra HD-klar, RGBW LED-stripsupport, GIGABYTE Double Locking Bracket, GIGABYTE Smart Fan 5 |
| BIOS-egenskaber | WfM 2.0 understøttet, DMI 2.7 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS, Dual BIOS |
| Hardwareovervågning | Takometer til CPU-blæser, Chassis temperatur, Systemspænding, Takometer til chassis-blæser, Beskyttelse mod CPU overophedning, CPU kernetemperatur |
| USB / FireWire portkonfiguration (samlekasser) | 2 x USB 3.1 Gen 1 + 2 x USB 2.0 |
|---|---|
| Lagringsporte | 4 x SATA-600, 1 x M.2 |
| USB/FireWire | USB 3.1 Gen 1 |
| USB / FireWire portkonfiguration (aktiv) | 4 x USB 3.1 Gen 1 + 2 x USB 2.0 |
| Lagring | M.2 åbning, Serial ATA-600 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Maks. allokeret RAM-størrelse | 1 GB |
|---|
| Type | Lydkort |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Overensstemmelsesstandarder | High Definition Audio |
| Audio codec | Realtek ALC887 |
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | Plug and Play, HDCP 2.2 |
| Egenskaber | Understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
|---|
| Netværk | 2 x Gigabit Ethernet, 802.11a/b/g/n/ac Wave 2, Bluetooth |
|---|---|
| Dataforbindelsesprotokol | IEEE 802.11b, Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11a, Fast Ethernet, Bluetooth 5.0, Ethernet, IEEE 802.11g |
| Ekspansionsåbninger | 1 x CPU, 1 x PCIe 3.0 x16, 2 x DIMM 288-pins |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA, SATA-600 / PCIe -stikforbindelser: 1 x M.2 |
|---|

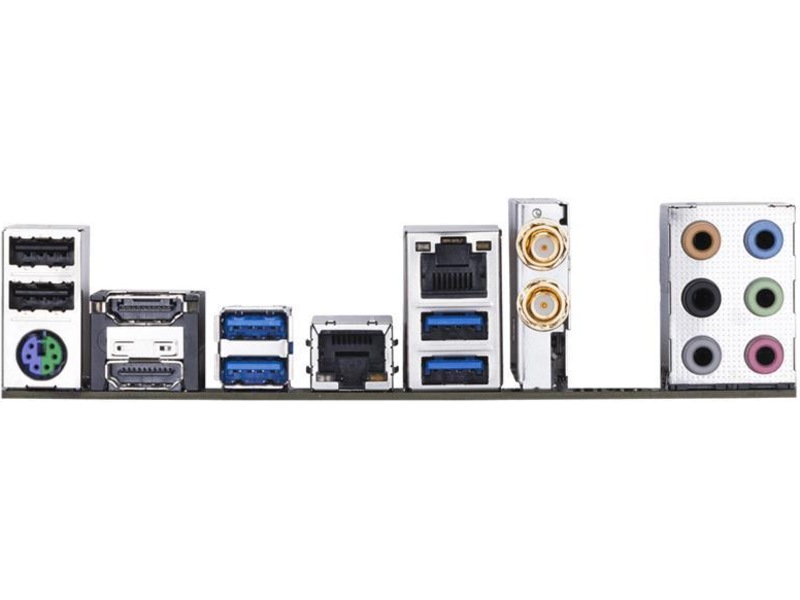

| Interface | 1 x audio linje-ud (sidesurround) - mini-jack, 1 x audio linje-ud - mini-jack, 1 x PS/2-tastatur/mus, 1 x audio linje-ud (bagtil) - mini-jack, 4 x USB 3.1 Gen 1, 2 x LAN (Gigabit Ethernet), 1 x mikrofon - mini-jack, 2 x HDMI, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 2 x USB 2.0, 1 x audio linje-ind - mini-jack |
|---|
| Interne interfaces | 1 x audio - intern stik, 4 x seriel - intern stik, 1 x højttaler - intern stik, 2 x USB 3.1 Gen 1 - intern stik, 2 x USB 2.0 - intern stik, 1 x SPDIF ud - intern stik |
|---|
| Software inkluderet | @BIOS, Smart TimeLock, GIGABYTE App Center, cFosSpeed, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE Fast Boot, GIGABYTE USB Blocker, GIGABYTE V-Tuner, Norton Internet Security, EasyTune, Cloud Station, GIGABYTE Smart Keyboard, Xpress Install, GIGABYTE Smart HUD, GIGABYTE 3D OSD |
|---|
