| Model | B450 AORUS PRO |
|---|---|
| Produktlinje | Gigabyte |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331803841 |
| Kommentarer om kompatible processorer | Understøtter 1. og 2. generation Ryzen/Ryzen med Radeon Vega Graphics |
|---|---|
| Processor-socket | Socket AM4 |
| Kompatible processorer | Ryzen |
| Model | ATX |
| Chipsættype | AMD B450 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| RAM Slots | 4 DIMM åbninger |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC (drift i ikke-ECC tilstand) |
| RAM-hastighed understøttet | 2933 MHz, 2133 MHz, 2400 MHz, 3200 MHz (O.C.), 2667 MHz |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | DMI 2.7 support, UEFI BIOS, SMBIOS 2.7 support, WfM 2.0 understøttet, ACPI 5.0 support, Dual BIOS |
| Hardwareovervågning | CPU kernetemperatur, Systemspænding, Takometer til chassis-blæser, Chassis temperatur, CPU kerne-spænding, Takometer til CPU-blæser, Beskyttelse mod CPU overophedning |
| Hardware egenskaber | AMD StoreMI technology, Solid Pin Power Connectors, Audio Noise Guard, GIGABYTE Double Locking Bracket, Q-Flash, AMD Quad CrossFireX-teknologisupport, Ultra Durable PCIe Armor, On/Off Charge, RGB FUSION, Ultra Durable, CEC 2019 Ready, RGBW/-UV LED-stripsupport, Præmonteret I/O-skjold, AMD CrossFireX-teknologisupport, 8+3 Phase Hybrid Digital PWM, AutoGreen, M.2 Thermal Guard |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C Gen 2 + 1 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 2 x USB 3.1 Gen 1 + 4 x USB 2.0 |
| Lagringsporte | 6 x SATA-600 (RAID), 2 x M.2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB 3.1 Gen 2, USB 3.1 Gen 1, USB-C Gen2 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Audio | High Definition Audio (8 kanaler) |
|---|---|
| Type | Lydkort |
| Audio codec | Realtek ALC1220-VB |
| Overensstemmelsesstandarder | High Definition Audio |
| Netværk | Gigabit Ethernet |
|---|---|
| Dataforbindelsesprotokol | Ethernet, Gigabit Ethernet, Fast Ethernet |
| Produkttype | Bundkort |
|---|
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Intel Extreme Memory Profiles (XMP) |
|---|
| Ekspansionsåbninger | 1 x PCIe 2.0 x1, 1 x PCIe 3.0 x16, 1 x CPU, 4 x DIMM 288-pins, 1 x PCIe 2.0 x16 (x1 modus), 1 x PCIe 2.0 x16 (x4 tilstand (x2 tilstand enhver PCI Express 2.0 x1 åbning er optaget)) |
|---|
| Grænseflade (lagring) | SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2, PCIe 3.0 -stikforbindelser: 1 x M.2, SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 |
|---|

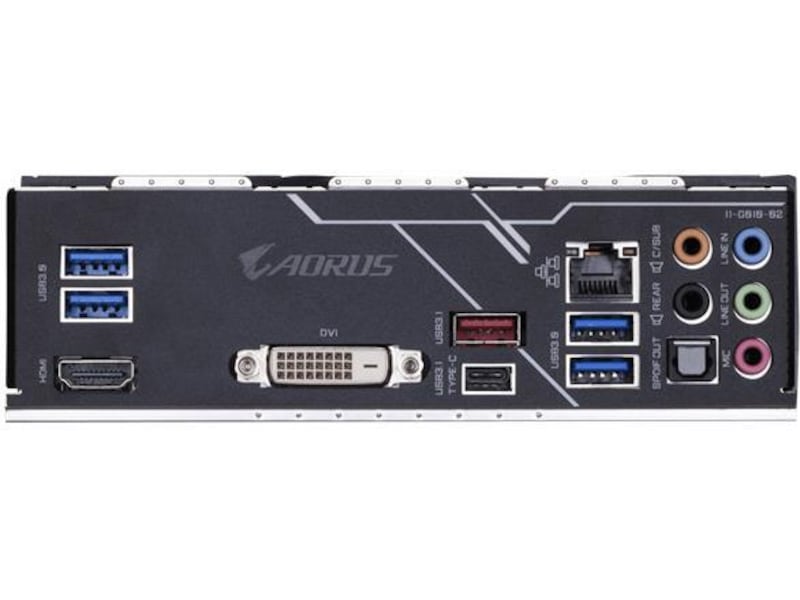

| Interface | 1 x audio linje-ud (bagtil) - mini-jack, 1 x USB 3.1 Gen 2, 1 x LAN (Gigabit Ethernet), 1 x audio linje-ud - mini-jack, 1 x audio linje-ind - mini-jack, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x HDMI, 4 x USB 3.1 Gen 1, 1 x mikrofon - mini-jack, 1 x DVI-D, 1 x TOSLINK |
|---|
| Interne interfaces | 4 x USB 2.0 - intern stik, 1 x SPDIF ud - intern stik, 2 x USB 3.1 Gen 1 - intern stik, 1 x audio - intern stik |
|---|
| Software inkluderet | cFosSpeed, GIGABYTE Smart HUD, GIGABYTE V-Tuner, EasyTune, GIGABYTE App Center, @BIOS, GIGABYTE Smart Keyboard, Smart TimeLock, GIGABYTE Smart Survey, GIGABYTE Fast Boot, Xpress Install, GIGABYTE USB Blocker, GIGABYTE 3D OSD, GIGABYTE Smart Backup, Cloud Station, GIGABYTE Smart Fan 5, Norton Internet Security |
|---|
