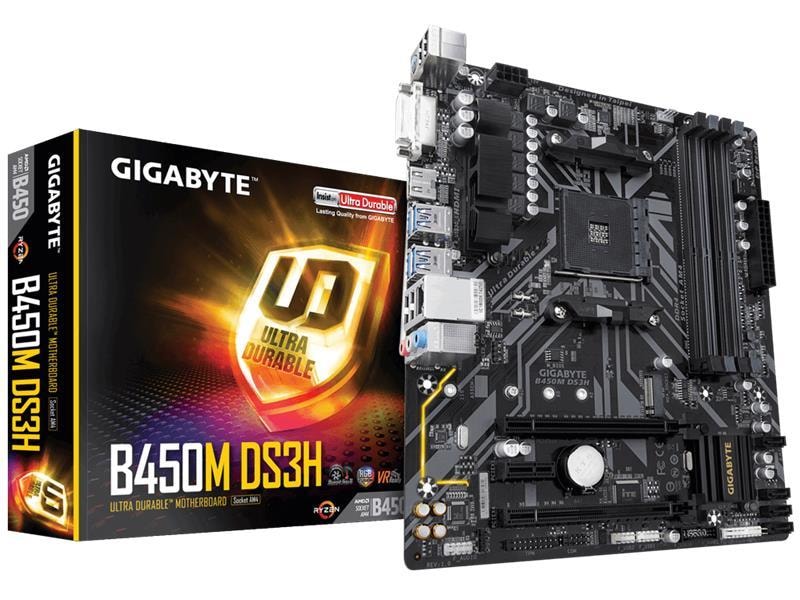

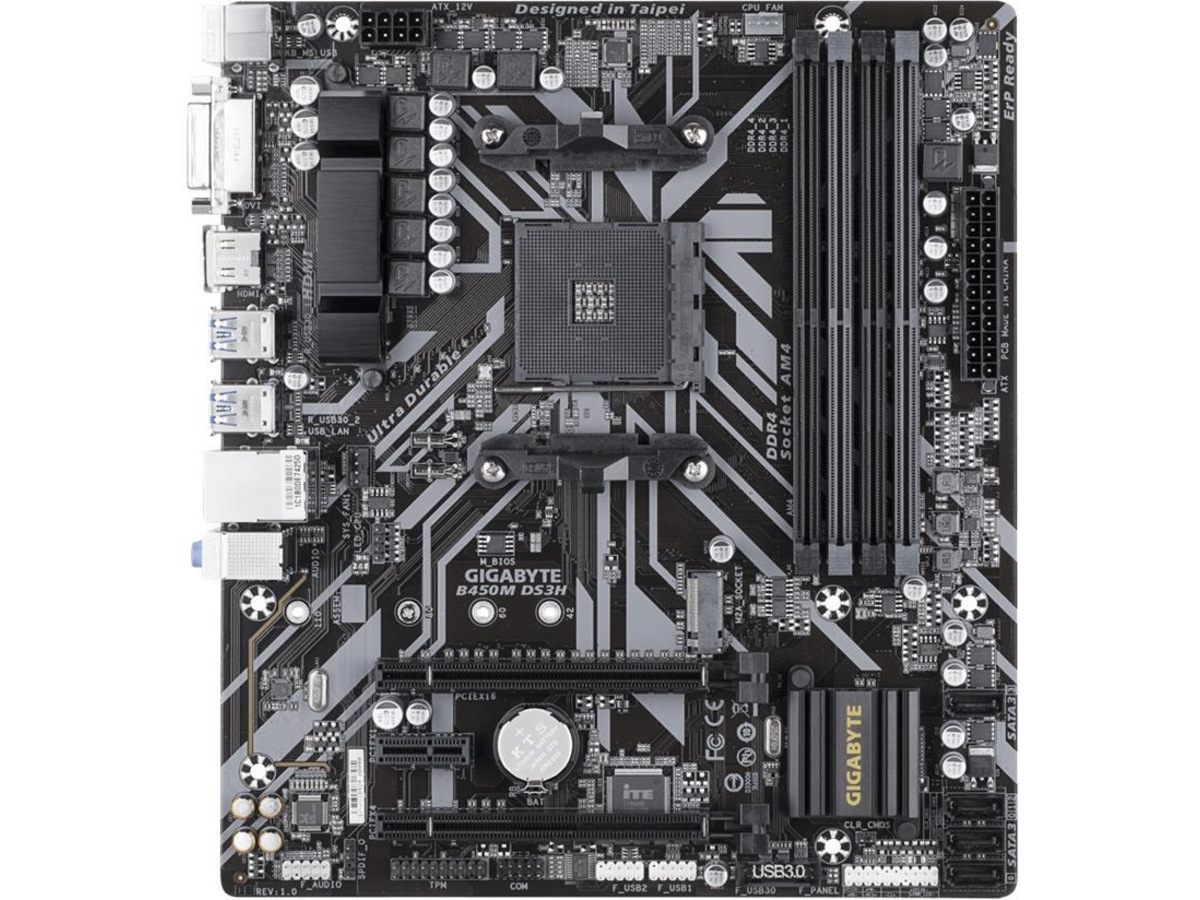

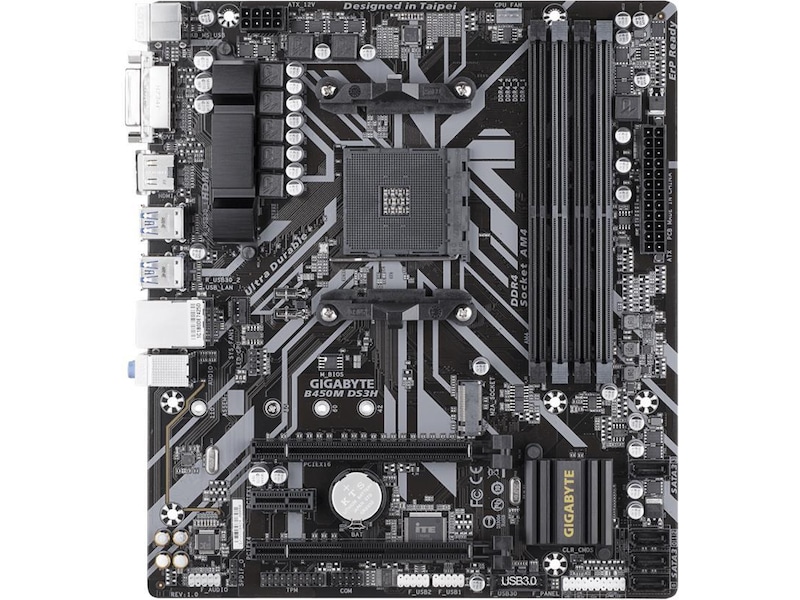

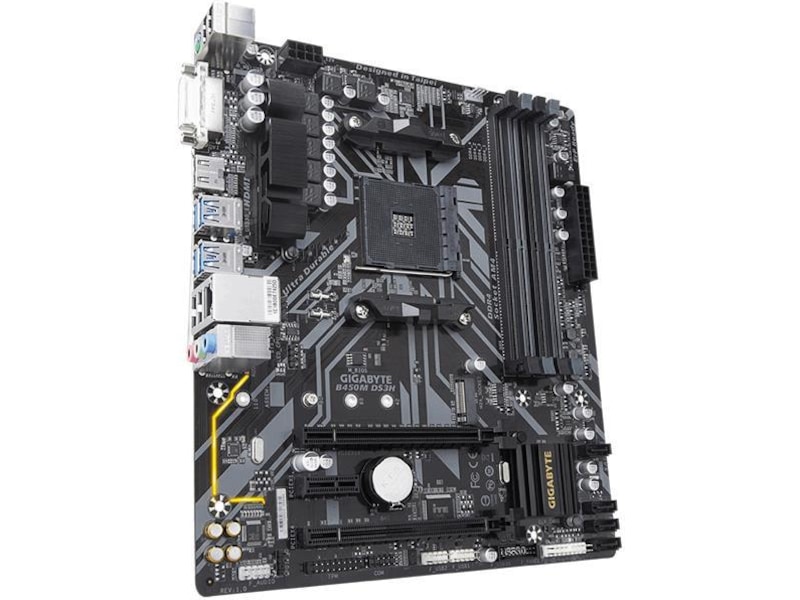

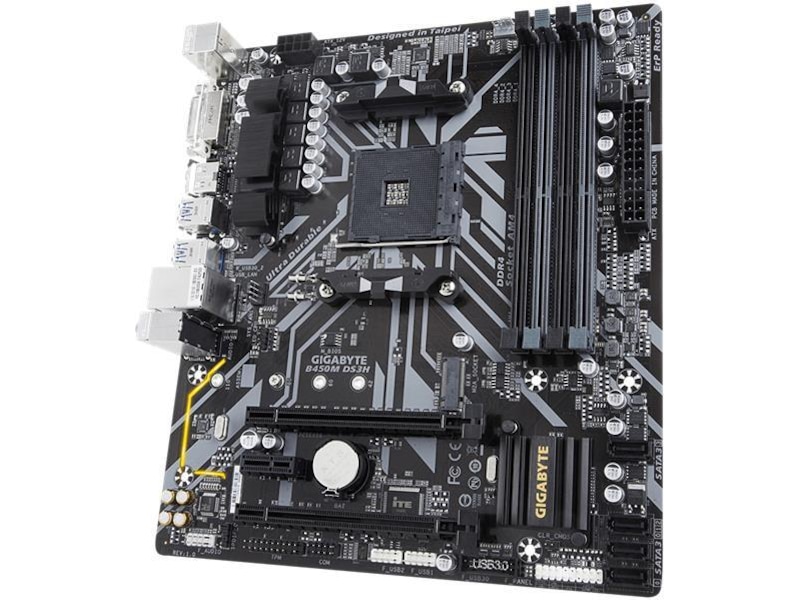

| Model | B450M DS3H |
|---|---|
| Produktlinje | Gigabyte |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331803827 |
| Processor-socket | Socket AM4 |
|---|---|
| Kommentarer om kompatible processorer | Understøtter 1. og 2. generation Ryzen/Ryzen med Radeon Vega Graphics |
| Chipsættype | AMD B450 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| RAM Slots | 4 DIMM åbninger |
| Model | Micro ATX |
| Kompatible processorer | Ryzen |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Strømkontakter | 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor |
| Understøttet RAM-integritetskon | ECC (drift i ikke-ECC tilstand), Ikke-ECC |
| RAM-hastighed understøttet | 3200 MHz (O.C.), 2133 MHz, 2667 MHz, 2400 MHz, 2933 MHz |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | WfM 2.0 understøttet, SMBIOS 2.7 support, UEFI BIOS, ACPI 5.0 support, DMI 2.7 support |
| Hardware egenskaber | AMD Quad CrossFireX-teknologisupport, RGB FUSION, AMD CrossFireX-teknologisupport, 4+3 Hybrid Digital PWM, AutoGreen, RGBW LED-stripsupport, Ultra Durable, Anti-Sulfur Design, All-Solid Capacitor motherboard Design, AMD StoreMI technology, On/Off Charge, GIGABYTE Double Locking Bracket, Glass Fabric PCB, Solid Pin Power Connectors, CEC 2019 Ready, Audio Noise Guard med Path Lighting, Q-Flash |

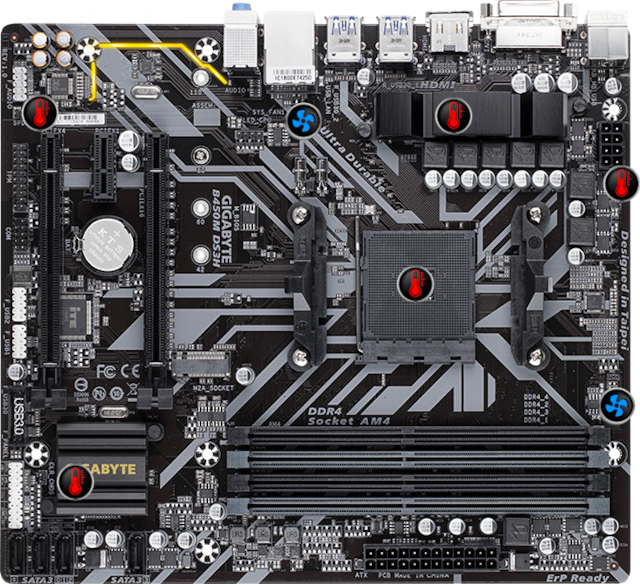

| Hardwareovervågning | Systemspænding, Takometer til CPU-blæser, Chassis temperatur, CPU kerne-spænding, Takometer til chassis-blæser, Beskyttelse mod CPU overophedning, CPU kernetemperatur |
| USB / FireWire portkonfiguration (aktiv) | 4 x USB 3.1 Gen 1 + 4 x USB 2.0 |
|---|---|
| USB/FireWire | USB 3.1 Gen 1 |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire portkonfiguration (samlekasser) | 2 x USB 3.1 Gen 1 + 4 x USB 2.0 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Maks. allokeret RAM-størrelse | 2 GB |
|---|
| Audio codec | Realtek ALC887 |
|---|---|
| Type | Lydkort |
| Audio | High Definition Audio (8 kanaler) |
| Overensstemmelsesstandarder | High Definition Audio |
| Netværk | Gigabit Ethernet |
|---|---|
| Dataforbindelsesprotokol | Fast Ethernet, Gigabit Ethernet, Ethernet |
| Produkttype | Bundkort |
|---|
| Egenskaber | Understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
|---|
| Ekspansionsåbninger | 1 x CPU, 1 x PCIe 2.0 x1, 1 x PCIe 2.0 x16 (x4-modus), 4 x DIMM 288-pins, 1 x PCIe 3.0 x16 |
|---|
| Grænseflade (lagring) | SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 |
|---|

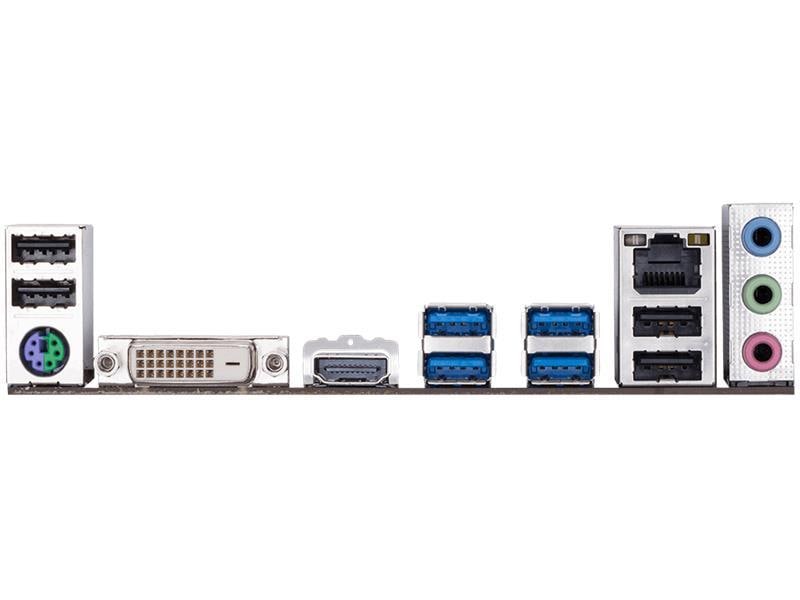

| Interface | 4 x USB 3.1 Gen 1, 1 x PS/2-tastatur/mus, 1 x mikrofon - mini-jack, 4 x USB 2.0, 1 x LAN (Gigabit Ethernet), 1 x DVI-D, 1 x HDMI, 1 x audio linje-ud - mini-jack, 1 x audio linje-ind - mini-jack |
|---|
| Interne interfaces | 1 x SPDIF ud - intern stik, 1 x seriel - intern stik, 1 x audio - intern stik, 2 x USB 3.1 Gen 1 - intern stik, 4 x USB 2.0 - intern stik |
|---|
| Software inkluderet | GIGABYTE Smart Backup, @BIOS, GIGABYTE Smart Fan 5, GIGABYTE Smart Keyboard, GIGABYTE Fast Boot, GIGABYTE 3D OSD, GIGABYTE USB Blocker, Smart TimeLock, GIGABYTE V-Tuner, cFosSpeed, Norton Internet Security, Cloud Station, Xpress Install, GIGABYTE App Center, EasyTune |
|---|
