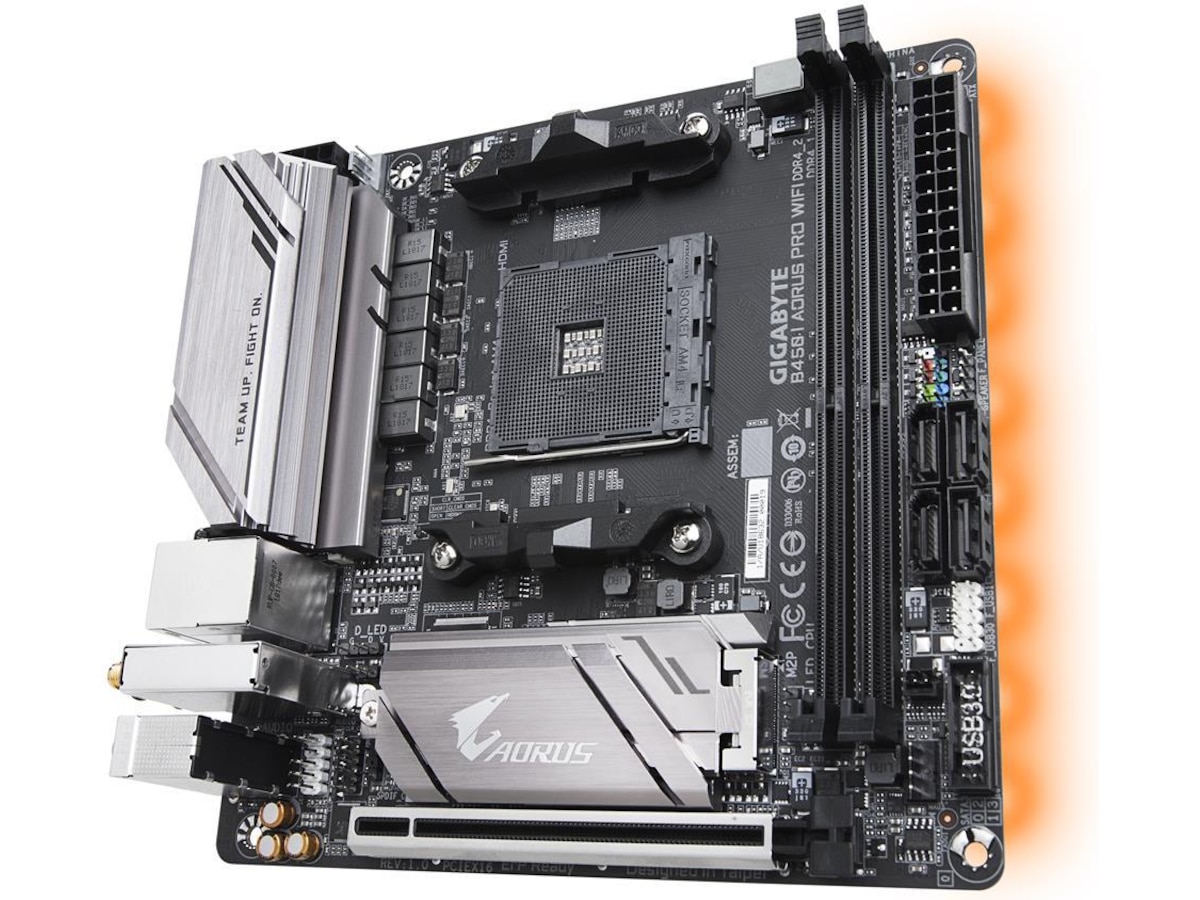

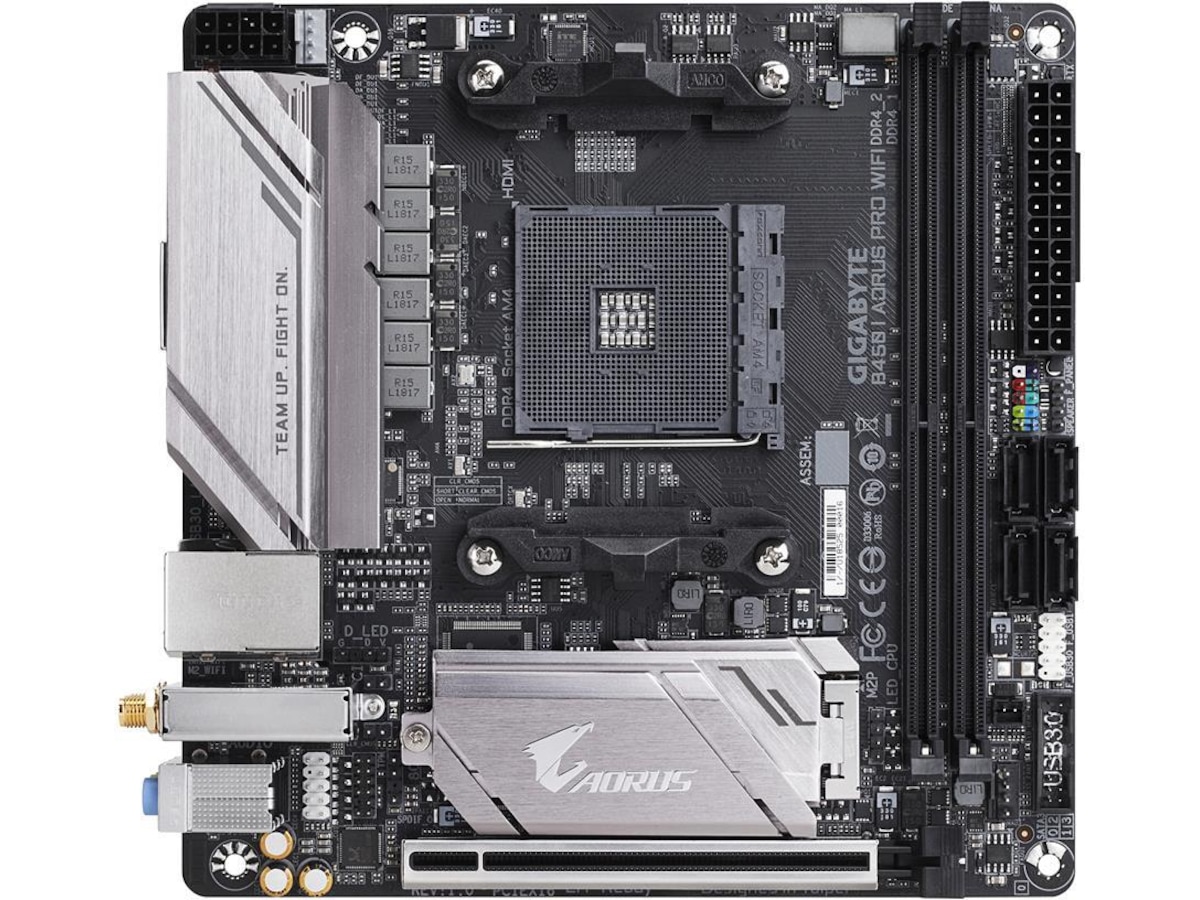

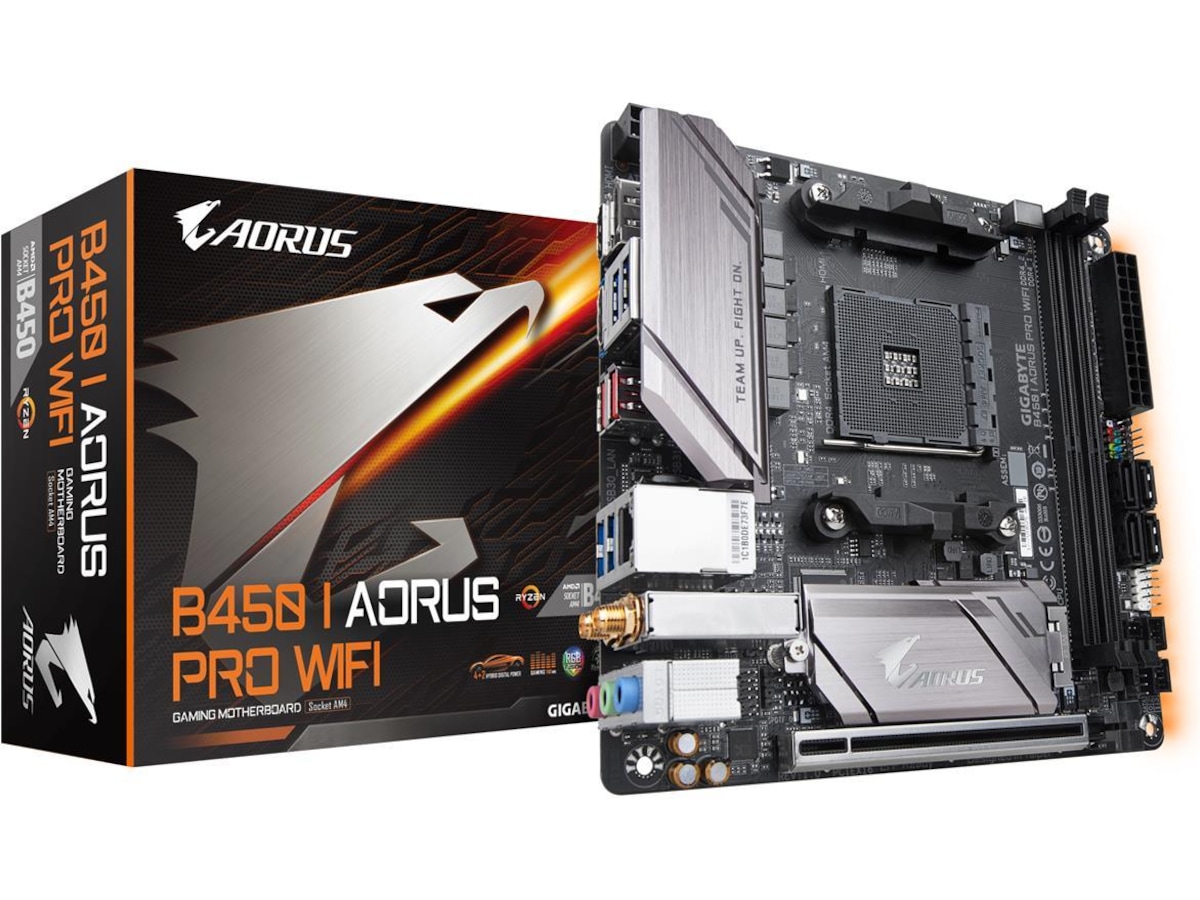

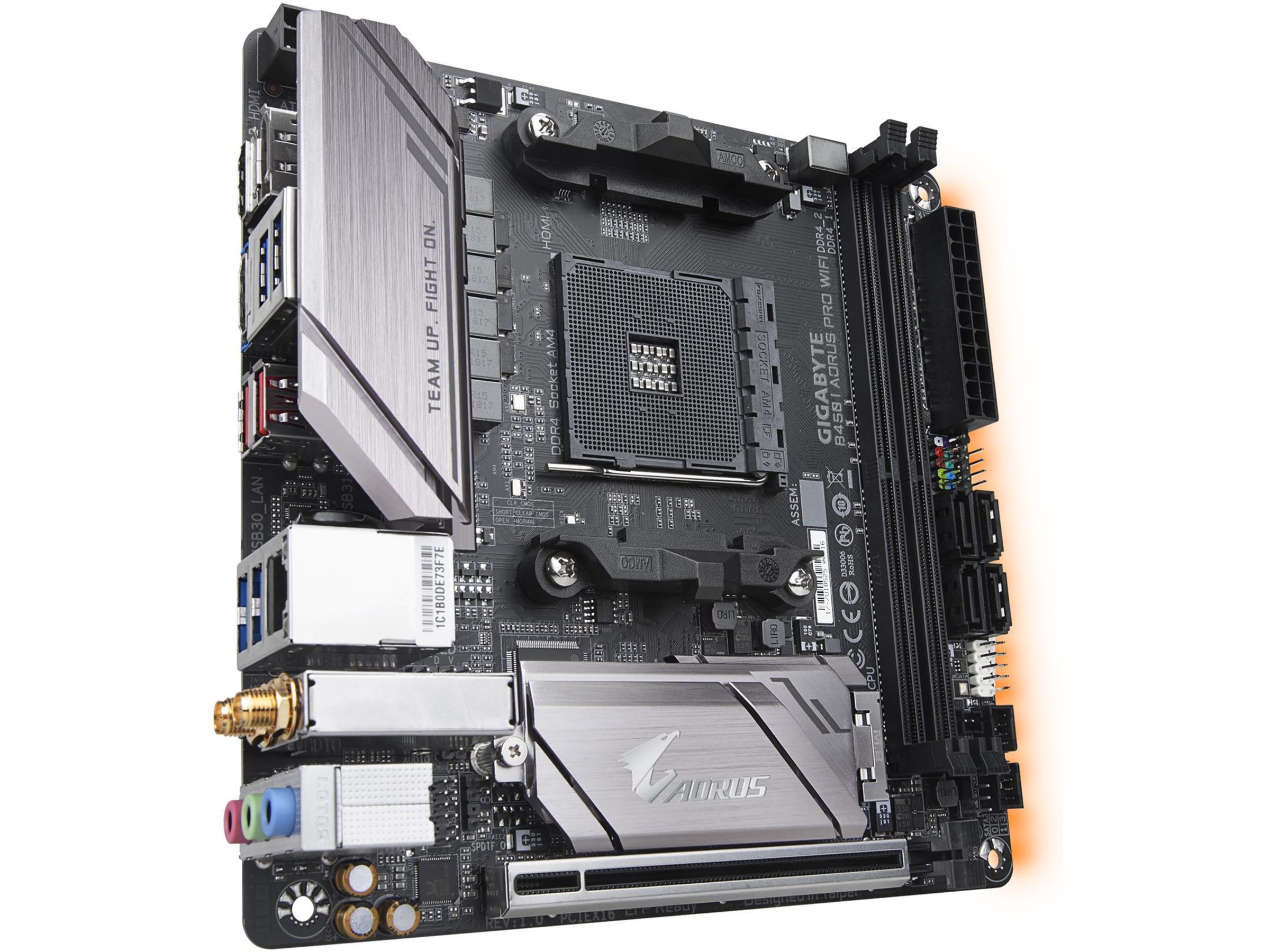

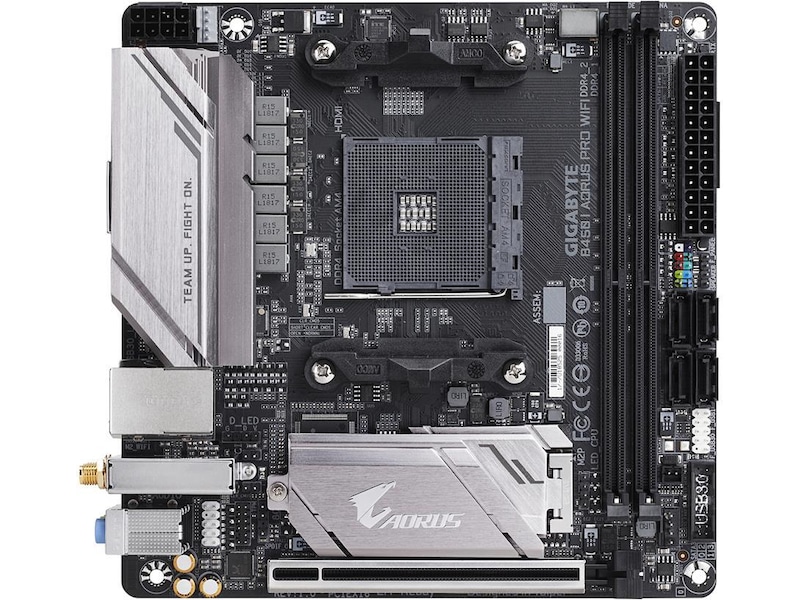

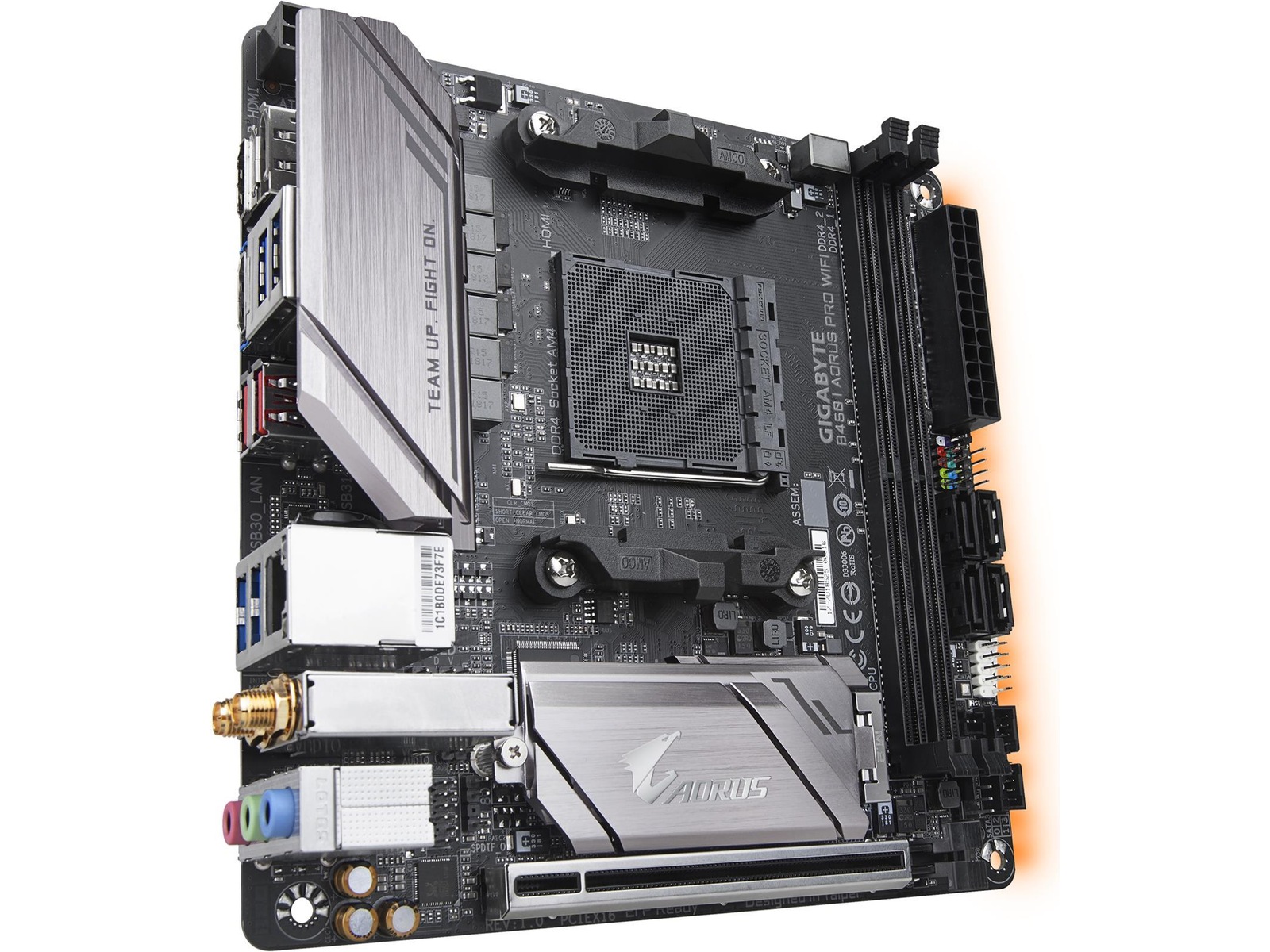

| Model | B450 I AORUS PRO WIFI |
|---|---|
| Produktlinje | Gigabyte |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331803988 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
|---|---|
| Processor-socket | Socket AM4 |
| RAM Slots | 2 DIMM slots |
| Kommentarer om kompatible processorer | Understøtter 1. og 2. generation Ryzen/Ryzen med Radeon Vega Graphics |
| Model | Mini ITX |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Kompatible processorer | Ryzen |
| Chipsættype | AMD B450 |
| Understøttet RAM-integritetskon | ECC (drift i ikke-ECC tilstand), Ikke-ECC |
| RAM-hastighed understøttet | 2667 MHz, 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz (O.C.) |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Hardwareovervågning | Chassis temperatur, Systemspænding, CPU kerne-spænding, Takometer til chassis-blæser, Beskyttelse mod CPU overophedning, Takometer til CPU-blæser, CPU kernetemperatur |
| BIOS-egenskaber | WfM 2.0 understøttet, DMI 2.7 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS |
| Hardware egenskaber | On/Off Charge, Q-Flash, GIGABYTE Double Locking Bracket, RGBW LED-stripsupport, Ultra Durable PCIe Armor, 4+2 Phase Power Design, Solid Pin Power Connectors, CEC 2019 Ready, AMD StoreMI technology, RGB FUSION, AutoGreen, M.2 Thermal Guard |
| USB / FireWire portkonfiguration (samlekasser) | 2 x USB 3.1 Gen 1 + 2 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 2 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2 |
| USB/FireWire | USB 3.1 Gen 1, USB 3.1 Gen 2 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Audio | High Definition Audio (8 kanaler) |
|---|---|
| Audio codec | Realtek ALC1220-VB |
| Type | Lydkort |
| Overensstemmelsesstandarder | High Definition Audio |
| Produkttype | Bundkort |
|---|
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Intel Extreme Memory Profiles (XMP) |
|---|
| Netværk | Gigabit Ethernet, Bluetooth, 802.11a/b/g/n/ac Wave 2 |
|---|---|
| Dataforbindelsesprotokol | IEEE 802.11g, Fast Ethernet, Bluetooth 5.0, IEEE 802.11ac Wave 2, Gigabit Ethernet, Ethernet, IEEE 802.11n, IEEE 802.11a, IEEE 802.11b |
| Ekspansionsåbninger | 1 x CPU, 2 x DIMM 288-pins, 1 x M.2 socket, 1 x PCIe 3.0 x16 |
|---|
| Grænseflade (lagring) | SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 |
|---|

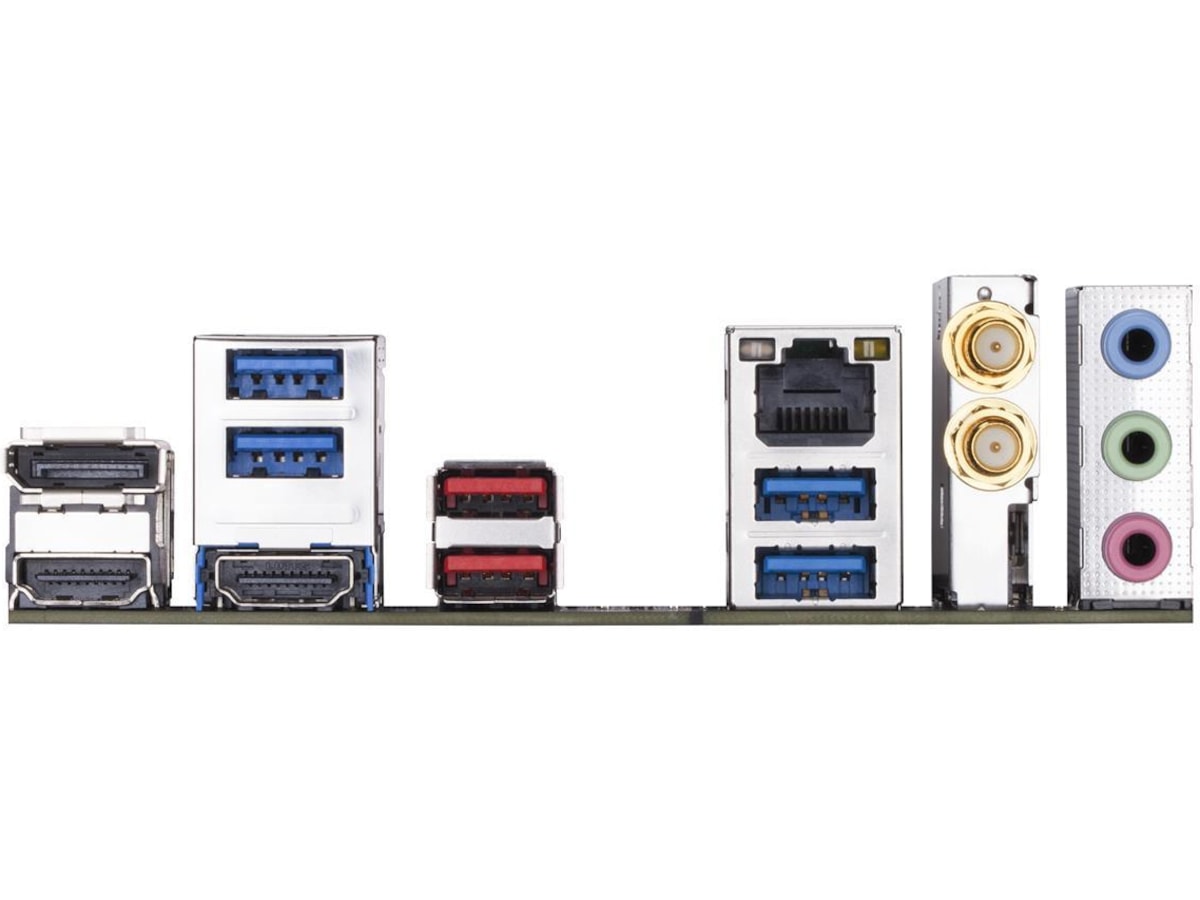

| Interface | 1 x audio linje-ind - mini-jack, 1 x audio linje-ud - mini-jack, 4 x USB 3.1 Gen 1, 1 x DisplayPort, 2 x HDMI, 1 x LAN (Gigabit Ethernet), 2 x USB 3.1 Gen 2, 1 x mikrofon - mini-jack |
|---|
| Interne interfaces | 1 x audio - intern stik, 1 x højttaler - intern stik, 2 x USB 2.0 - intern stik, 2 x USB 3.1 Gen 1 - intern stik, 1 x SPDIF ud - intern stik |
|---|
| Software inkluderet | GIGABYTE Fast Boot, GIGABYTE Smart Keyboard, cFosSpeed, GIGABYTE V-Tuner, Smart TimeLock, GIGABYTE Smart Fan 5, EasyTune, GIGABYTE App Center, GIGABYTE 3D OSD, Xpress Install, @BIOS, Norton Internet Security, GIGABYTE Smart Backup, GIGABYTE Smart Survey, Cloud Station, GIGABYTE Smart HUD, GIGABYTE USB Blocker |
|---|
