| Produktlinje | MSI |
|---|---|

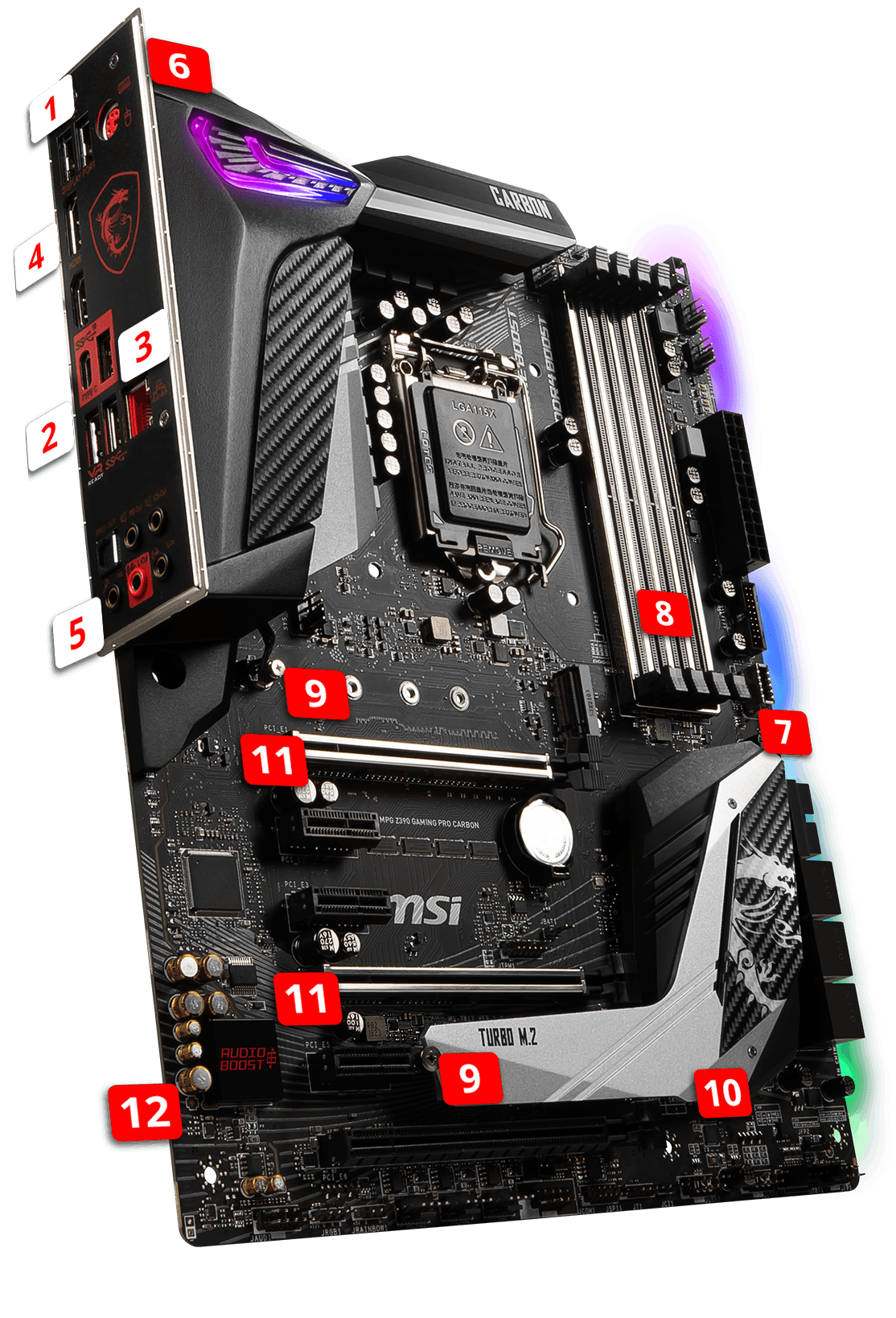

| Model | MPG Z390 GAMING PRO CARBON |
| Producentens garanti (måneder) | 36 |
| EAN | 4719072596477 |
| Kommentarer om kompatible processorer | Understøtter 9th og 8th Generation Intel Core/Pentium Gold/Celeron |
|---|---|
| Understøttet RAM-integritetskon | Ikke-ECC |
| Chipsættype | Intel Z390 |
| Processor-socket | LGA1151 Socket |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Model | ATX |
| RAM Slots | 4 DIMM åbninger |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Kompatible processorer | Core i9, Core i3, Core i5, Pentium Gold, Celeron, Core i7 |
| Strømkontakter | 4-pin ATX12V konnektor, 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor |
| RAM-hastighed understøttet | 3000 MHz (O.C.), 4400 MHz (O.C.), 2800 MHz (O.C.), 3866 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 4266 MHz (O.C.), 4300 MHz (O.C.), 3333 MHz (O.C.), 4000 MHz (O.C.), 3466 MHz (O.C.), 2133 MHz, 4200 MHz (O.C.), 3600 MHz (O.C.), 3300 MHz (O.C.), 2400 MHz, 2666 MHz, 4133 MHz (O.C.), 3733 MHz (O.C.) |
| BIOS-egenskaber | MSI ClickBIOS 5 |
|---|---|
| Hardware egenskaber | AMD 3-vejs CrossFireX teknologisupport, Turbo M.2, Game Boost, Nahimic 3 Sound Technology, MSI Mystic Light, M.2 Shield FROZR, Intel Optane Memory Ready, NVIDIA 2-way SLI Technology Support, MSI Audio Boost 4, Præmonteret I/O-skjold, MSI Steel Armor, Double ESD Protection, MSI Core Boost |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C Gen 2 + 4 x USB 3.1 Gen 1 + 4 x USB 2.0 |
|---|---|
| Lagringsporte | 6 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C Gen 2 + 3 x USB 3.1 Gen 2 + 2 x USB 2.0 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| USB/FireWire | USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Type | Lydkort |
| Audio codec | Realtek ALC1220P-VB2 |
| Netværk | Gigabit Ethernet |
|---|---|
| Netværk controller | Intel I219V |
| Dataforbindelsesprotokol | Fast Ethernet, Gigabit Ethernet, Ethernet |
| Produkttype | Bundkort |
|---|
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
|---|
| Ekspansionsåbninger | 3 x PCIe 3.0 x16 (x16/x0/x4, x8/x8/x4 tilstande), 3 x PCIe 3.0 x1, 1 x CPU, 4 x DIMM 288-pins |
|---|
| Grænseflade (lagring) | SATA-600 / PCIe 3.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1, SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|
| Interface | 2 x USB 2.0, 1 x DisplayPort, 3 x USB 3.1 Gen 2, 1 x mikrofon - mini-jack, 1 x audio linje-ud - mini-jack, 1 x audio linje-ud (bagtil) - mini-jack, 1 x LAN (Gigabit Ethernet), 1 x TOSLINK, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x USB-C Gen2, 1 x audio linje-ind - mini-jack, 1 x HDMI, 1 x PS/2-tastatur/mus |
|---|
| Interne interfaces | 1 x audio - intern stik, 4 x USB 2.0 - intern stik, 4 x USB 3.1 Gen 1 - intern stik, 1 x seriel - intern stik, 1 x USB-C Gen2 - intern stik |
|---|
| Medfølgende ledninger | 1 x SLI bro, Seriel ATA kabel |
|---|
| Software inkluderet | MSI Dragon Center, Drivers & Utilities, MSI Gaming LAN Manager |
|---|
