| Produktlinje | MSI |
|---|---|

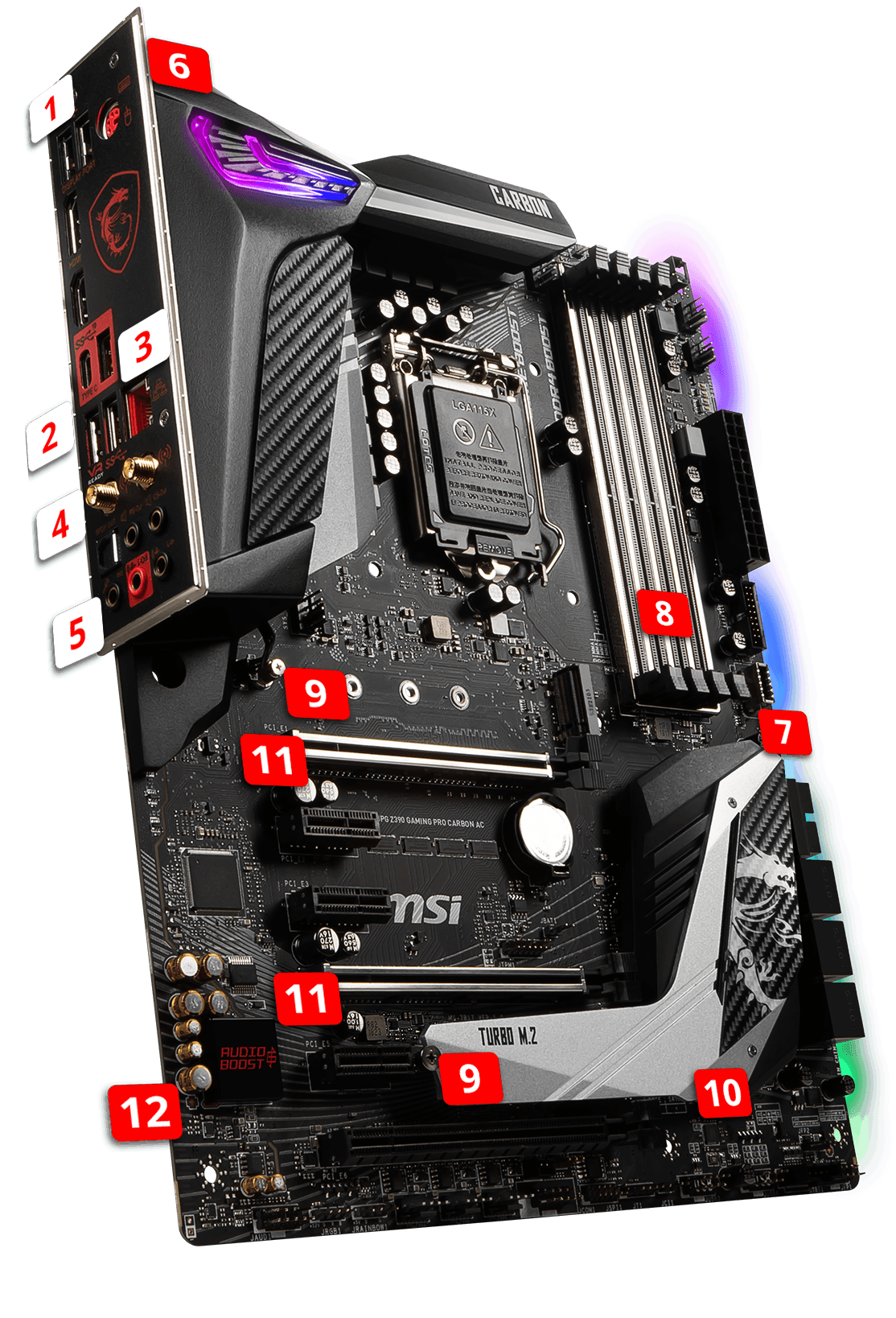

| Model | MPG Z390 GAMING PRO CARBON AC |
| Producentens garanti (måneder) | 36 |
| EAN | 4719072595029 |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
|---|---|
| Understøttet RAM-integritetskon | Ikke-ECC |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Chipsættype | Intel Z390 |
| RAM Slots | 4 DIMM åbninger |
| Processor-socket | LGA1151 Socket |
| Model | ATX |
| Kommentarer om kompatible processorer | Understøtter 9th og 8th Generation Intel Core/Pentium Gold/Celeron |
| Strømkontakter | 4-pin ATX12V konnektor, 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor |
| RAM-hastighed understøttet | 4200 MHz (O.C.), 3866 MHz (O.C.), 3200 MHz (O.C.), 2133 MHz, 3300 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 4266 MHz (O.C.), 2800 MHz (O.C.), 4400 MHz (O.C.), 4000 MHz (O.C.), 4300 MHz (O.C.), 3733 MHz (O.C.), 3000 MHz (O.C.), 2666 MHz, 2400 MHz, 3600 MHz (O.C.), 3400 MHz (O.C.), 4133 MHz (O.C.) |
| Kompatible processorer | Core i9, Core i7, Core i3, Core i5, Pentium Gold, Celeron |
| BIOS-egenskaber | MSI ClickBIOS 5 |
|---|---|

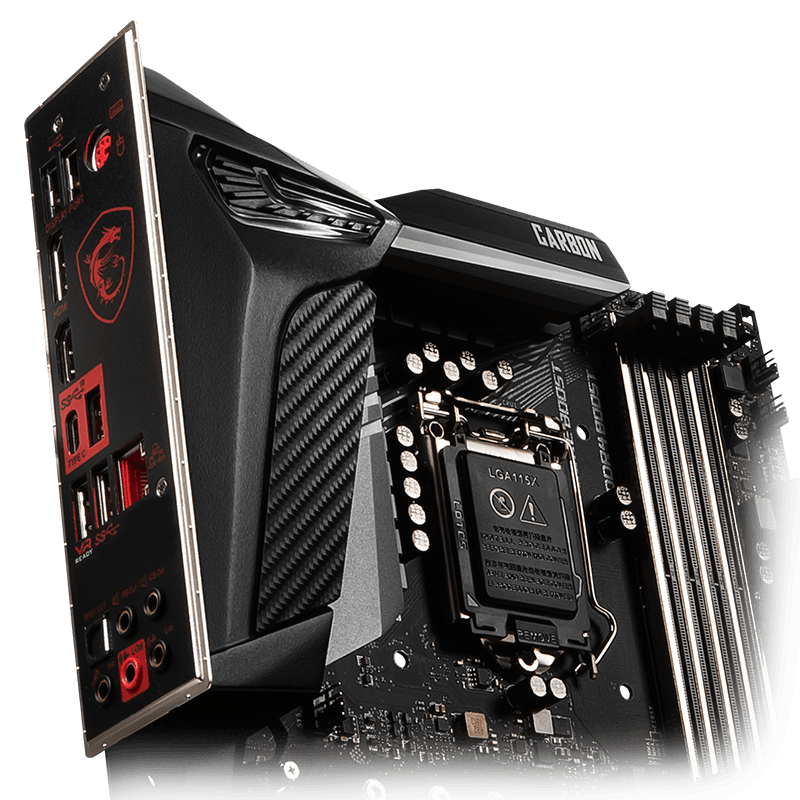

| Hardware egenskaber | MSI Mystic Light, Game Boost, Turbo M.2, Intel Optane Memory Ready, MSI Audio Boost 4, MSI Core Boost, Nahimic 3 Sound Technology, Double ESD Protection, AMD 3-vejs CrossFireX teknologisupport, NVIDIA 2-way SLI Technology Support, MSI Steel Armor, Præmonteret I/O-skjold, M.2 Shield FROZR |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C Gen 2 + 4 x USB 3.1 Gen 1 + 4 x USB 2.0 |
|---|---|
| Lagringsporte | 6 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C Gen 2 + 3 x USB 3.1 Gen 2 + 2 x USB 2.0 |
| USB/FireWire | USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Type | Lydkort |
|---|---|
| Audio codec | Realtek ALC1220P-VB2 |
| Audio | High Definition Audio (8 kanaler) |
| Overensstemmelsesstandarder | High Definition Audio |
| Netværk controller | Intel I219V / Intel Wireless-AC 9560 |
|---|---|
| Netværk | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Dataforbindelsesprotokol | Fast Ethernet, IEEE 802.11b, Gigabit Ethernet, IEEE 802.11g, Bluetooth 3.0, Bluetooth 2.1, IEEE 802.11a, Bluetooth 5.0, Bluetooth 2.1 EDR, IEEE 802.11ac, Ethernet, Bluetooth 4.0, IEEE 802.11n |
| Produkttype | Bundkort |
|---|
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
|---|
| Ekspansionsåbninger | 3 x PCIe 3.0 x16 (x16/x0/x4, x8/x8/x4 tilstande), 4 x DIMM 288-pins, 1 x CPU, 3 x PCIe 3.0 x1 |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 3.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 |
|---|
| Interface | 2 x USB 2.0, 1 x TOSLINK, 1 x audio linje-ind - mini-jack, 1 x LAN (Gigabit Ethernet), 1 x DisplayPort, 1 x HDMI, 1 x PS/2-tastatur/mus, 1 x USB-C Gen2, 3 x USB 3.1 Gen 2, 1 x audio linje-ud - mini-jack, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x mikrofon - mini-jack, 1 x audio linje-ud (bagtil) - mini-jack |
|---|
| Interne interfaces | 1 x audio - intern stik, 4 x USB 2.0 - intern stik, 4 x USB 3.1 Gen 1 - intern stik, 1 x USB-C Gen2 - intern stik, 1 x seriel - intern stik |
|---|
| Medfølgende ledninger | Seriel ATA kabel, 1 x SLI bro |
|---|
| Software inkluderet | Drivers & Utilities, MSI Gaming LAN Manager, MSI Dragon Center |
|---|
