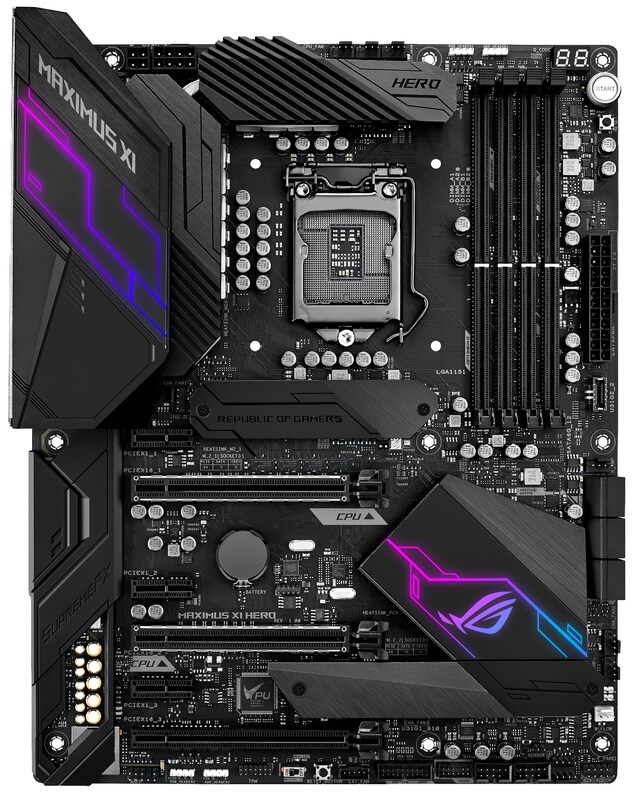

| Model | ROG MAXIMUS XI HERO |
|---|---|
| Produktlinje | ASUS |
| Producentens garanti (måneder) | 36 |
| EAN | 4718017127707 |
| Model | ATX |
|---|---|
| Kommentarer om kompatible processorer | Understøtter 9th og 8th Generation Intel Core/Pentium Gold/Celeron |
| Processor-socket | LGA1151 Socket |
| Chipsættype | Intel Z390 |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| RAM Slots | 4 DIMM åbninger |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| RAM-hastighed understøttet | 4133 MHz (O.C.), 2133 MHz, 3200 MHz (O.C.), 2800 MHz (O.C.), 4266 MHz (O.C.), 3300 MHz (O.C.), 2400 MHz, 3866 MHz (O.C.), 3600 MHz (O.C.), 3000 MHz (O.C.), 3733 MHz (O.C.), 2666 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 4400 MHz (O.C.), 4000 MHz (O.C.), 3333 MHz (O.C.) |
| Kompatible processorer | Core i7, Pentium Gold, Core i3, Core i9, Celeron, Core i5 |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 4-pin ATX12V konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Sov/ Vågn | Aktivering af LAN (wake on LAN = WOL) |
| BIOS-egenskaber | ACPI 6,1 support, ASUS EZ Flash 3, SMBIOS 3,1 support, UEFI BIOS, DMI 3,0 support, USB BIOS Flashback |
| Hardware egenskaber | Q-Code, ASUS Extreme Tweaker, LANGuard, C.P.R. (CPU Parameter Recall), MemOK! II, ASUS TPU (TurboV Processing Unit), NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, BUPDATER, ASUS Extreme Engine Digi+, Mem TweakIt, SupremeFX Shielding teknologi, Q-LED, Sonic Studio Link, ROG Armor, Preboot eXecution Environment (PXE), Intel Optane Memory Ready, Audio jack detektions teknologi, ASUS Q-Design, Armoury Crate, Sonic Studio III, ASUS Q-Connector, Q-DIMM, ASUS DIGI+ VRM, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 4, Jack retasking, Onboard Button, Sonic Radar III, CrashFree BIOS 3, Præmonteret I/O-skjold, AMD 3-vejs CrossFireX teknologisupport, Dual Intelligent Processors 5, AURA RGB Lighting Control, GameFirst, Clear CMOS Button, ASUS OptiMem II |
| USB / FireWire portkonfiguration (aktiv) | 4 x USB 3.1 Gen 2 + 6 x USB 3.1 Gen 1 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB 3.1 Gen 2 + 2 x USB 3.1 Gen 1 + 2 x USB 2.0 |
| Lagringsporte | 6 x SATA-600 (RAID), 2 x M.2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB 3.1 Gen 2, USB-C Gen2, USB 3.1 Gen 1 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Audio codec | SupremeFX (S1220) |
|---|---|
| Type | Lydkort |
| Audio | High Definition Audio (8 kanaler) |
| Overensstemmelsesstandarder | High Definition Audio |
| Netværk controller | Intel I219V |
|---|---|
| Netværk | Gigabit Ethernet |
| Dataforbindelsesprotokol | Fast Ethernet, Ethernet, Gigabit Ethernet |
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | Plug and Play |
| Inkluderet tilbehør | RGB (RGBW) LED strip-forlængerkabel, 1 x M.2 skrue, ROG stor mærkat, RGB Addressable LED-forlængerkabel, ROG-coastere |
| Egenskaber | Intel Extreme Memory Profiles (XMP), Dobbelt kanal hukommelses arkitektur |
|---|
| Ekspansionsåbninger | 2 x PCIe 3.0 x16 (x16, x8/x8, x8/x4/x4 tilstande), 3 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 tilstand (x2 tilstand hvis 1 x SATA optaget)), 1 x CPU, 4 x DIMM 288-pins |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2, PCIe 3.0 -stikforbindelser: 1 x M.2 |
|---|
| Interface | 1 x mikrofon - mini-jack, 3 x USB 3.1 Gen 2, 1 x audio linje-ind - mini-jack, 2 x USB 3.1 Gen 1, 1 x HDMI, 2 x USB 2.0, 1 x audio linje-ud (bagtil) - mini-jack, 1 x LAN (Gigabit Ethernet), 1 x DisplayPort, 1 x USB-C Gen2, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x TOSLINK, 1 x audio linje-ud - mini-jack, 1 x PS/2-tastatur/mus |
|---|
| Interne interfaces | 2 x USB 3.1 Gen 1 - intern stik, 4 x USB 2.0 - intern stik, 1 x USB 3.1 Gen 2 - intern stik, 1 x audio - intern stik |
|---|
| Medfølgende ledninger | 1 x SLI bro, 4 x Seriel ATA kabel |
|---|
| Software inkluderet | ASUS AI Suite III, Drivers & Utilities, ROG CPU-Z, ASUS EZ Flash 3, ASUS AI Charger, ASUS ROG RAMCache III, ROG GameFirst V |
|---|
