| Produktlinje | ASUS |
|---|---|

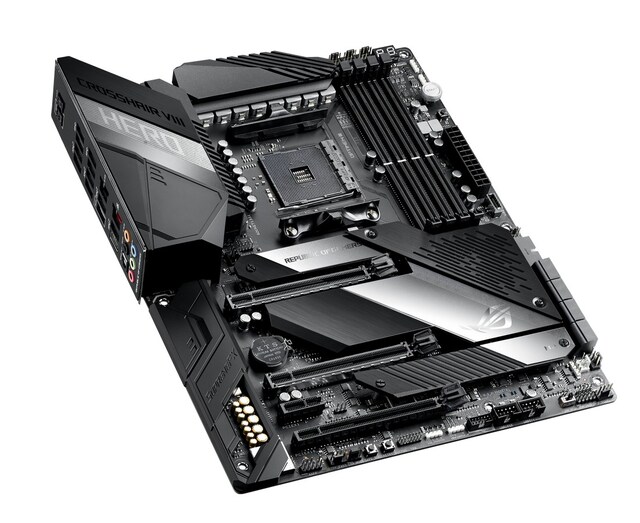

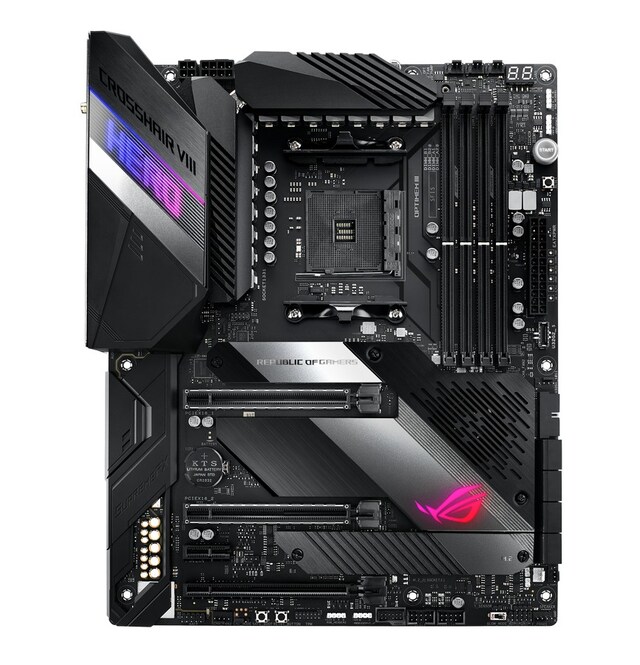

| Model | ROG Crosshair VIII Hero (WI-FI) |
| Producentens garanti (måneder) | 36 |
| EAN | 4718017378505 |
| Understøttet RAM-integritetskon | ECC |
|---|---|
| Chipsættype | AMD X570 |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Processor-socket | Socket AM4 |
| Kommentarer om kompatible processorer | Understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics |
| Model | ATX |
| Kompatible processorer | Ryzen |
| RAM Slots | 4 DIMM åbninger |
| RAM-hastighed understøttet | 3866 MHz (O.C.), 4400 MHz (O.C.), 3733 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 2800 MHz, 4800 MHz (O.C.), 3400 MHz (O.C.), 4600 MHz (O.C.), 2400 MHz, 3000 MHz, 4133 MHz (O.C.), 3466 MHz (O.C.), 4000 MHz (O.C.), 3600 MHz (O.C.), 2666 MHz, 2133 MHz, 2933 MHz |
| Strømkontakter | 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor, 4-pin ATX12V konnektor |
| Sov/ Vågn | Aktivering af LAN (wake on LAN = WOL) |
|---|---|
| BIOS-type (Basic Input/Output System) | AMI |
| Hardware egenskaber | ASUS ROG Extreme OC, Armoury Crate, ASUS Q-Connector, Clear CMOS Button, AMD CrossFireX-teknologisupport, ASUS SafeSlot, Dual Intelligent Processors 5, ProCool II Power Connector, AMD StoreMI technology, Q-Slot, Præmonteret I/O-skjold, CrashFree BIOS 3, C.P.R. (CPU Parameter Recall), ASUS Extreme Tweaker, Preboot eXecution Environment (PXE), AMD 3-vejs CrossFireX teknologisupport, ASUS Extreme Engine Digi+, M.2 kølelegeme, ESS ES9023P, Sonic Studio III, Q-DIMM, GameFirst, SupremeFX Shielding teknologi, ASUS Aura Sync, LANGuard, NVIDIA 3-way SLI Technology Support, ASUS OptiMem III, ASUS Node, Q-LED, 10K Black Metallic Capacitors, Sonic Radar III, PowIRstage IR3555 MOSFETs, Q-Code, MicroFine Alloy Chokes, ASUS Q-Design |
| BIOS-egenskaber | UEFI BIOS, SMBIOS 3,2 support, ASUS EZ Flash 3, ACPI 6,2 support, BIOS FlashBack, WfM 2.0 understøttet |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C Gen 2 + 7 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 |

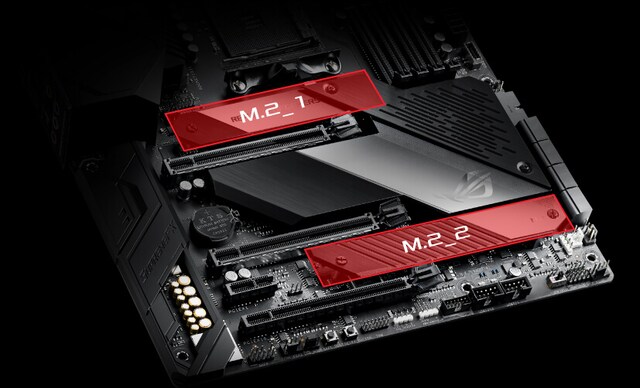

| Lagringsporte | 8 x SATA-600 (RAID), 2 x M.2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB-C Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 |
| Egenskaber | Dobbelt kanal hukommelses arkitektur |
|---|
| Type | Ingen |
|---|
| Audio | High Definition Audio (8 kanaler) |
|---|---|
| Type | Lydkort |

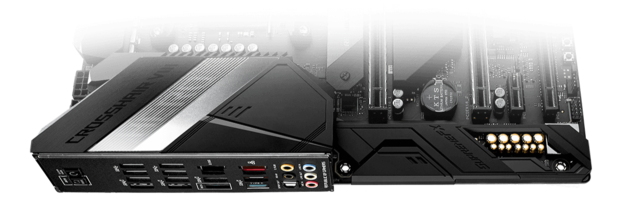

| Audio codec | SupremeFX |
| Overensstemmelsesstandarder | DTS Sound Unbound, High Definition Audio |
| Netværk controller | Intel I211-AT / Realtek RTL8125-CG / Intel AX200 |
|---|---|
| Netværk | Bluetooth, 2.5 Gigabit Ethernet, Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Dataforbindelsesprotokol | IEEE 802.11g, Bluetooth 5.0, 802.11ax, Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11b, Fast Ethernet, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, Gigabit Ethernet |
| Medfølgende ledninger | 4 x Seriel ATA kabel |
|---|
| Produkttype | Bundkort |
|---|---|
| Inkluderet tilbehør | ROG-takkekort, Ekstern antenne, RGB (RGBW) LED strip-forlængerkabel, 1 x M.2 skrue, ROG-coastere, ROG stor mærkat, Q-Connector, RGB Addressable LED-forlængerkabel |
| Ekspansionsåbninger | 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 tilstande (med 3. Generation Ryzen CPU), PCIe 3.0 x16/x0, x8/x8 tilstande (med 2. Generation Ryzen CPU), PCIe 3.0 x8/x0 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics)), 1 x PCIe 4.0 x16, 4 x DIMM 288-pins, 1 x CPU, 1 x PCIe 4.0 x1 |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2 |
|---|
| Interface | 4 x USB 3.2 Gen 1, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x LAN (Gigabit Ethernet), 1 x audio linje-ud - mini-jack, 7 x USB 3.2 Gen 2, 1 x audio linje-ind - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 1 x audio linje-ud (bagtil) - mini-jack, 1 x TOSLINK, 1 x USB-C Gen2, 1 x mikrofon - mini-jack |
|---|
| Interne interfaces | 1 x USB 3.2 Gen 2 - intern stik, 2 x USB 3.2 Gen 1 - intern stik, 4 x USB 2.0 - intern stik, 1 x audio - intern stik |
|---|
| Software inkluderet | RAMdisk, ROG CPU-Z, ASUS AI Charger, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, ROG GameFirst V, ASUS AI Suite III, Drivers & Utilities |
|---|
