| Produktlinje | Gigabyte |
|---|---|
| Model | X570 AORUS ULTRA |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331806415 |
| Kompatible processorer | Ryzen |
|---|---|
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Kommentarer om kompatible processorer | Understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics |
| RAM Slots | 4 DIMM åbninger |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Processor-socket | Socket AM4 |
| Chipsættype | AMD X570 |
| Model | ATX |
| RAM-hastighed understøttet | 2133 MHz, 3866 MHz (O.C.), 3600 MHz (O.C.), 2667 MHz, 4266 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 4000 MHz (O.C.), 3466 MHz (O.C.), 3200 MHz, 3800 MHz (O.C.), 4300 MHz (O.C.), 3733 MHz (O.C.), 3400 MHz (O.C.), 4400 MHz (O.C.), 4133 MHz (O.C.), 2400 MHz, 2933 MHz |
| Understøttet RAM-integritetskon | ECC, Ikke-ECC |
| Strømkontakter | 4-pin ATX12V konnektor, 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | SMBIOS 2.7 support, Dual BIOS, ACPI 5.0 support, UEFI BIOS, WfM 2.0 understøttet, DMI 2.7 support |

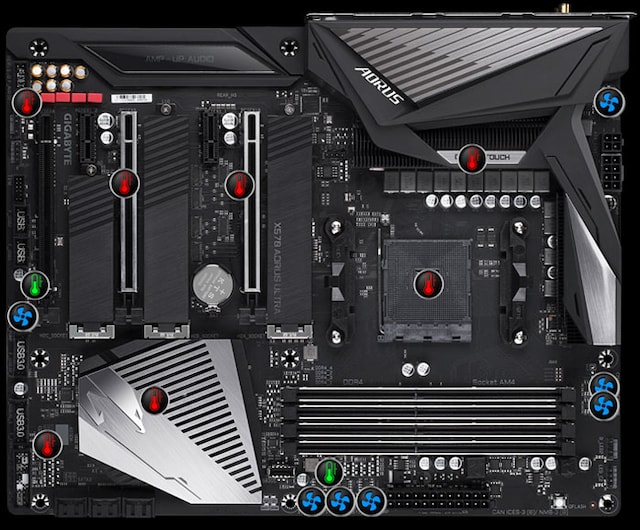

| Hardwareovervågning | Beskyttelse mod CPU overophedning, CPU kerne-spænding, CPU kernetemperatur, Chassis temperatur, Takometer til CPU-blæser, Vandkølings-flowrate, Takometer til chassis-blæser, Systemspænding |
| Hardware egenskaber | Solid Pin Power Connectors, AMD StoreMI technology, NVIDIA Quad SLI Technology Support, AMD CrossFireX-teknologisupport, Præmonteret I/O-skjold, AutoGreen, Q-Flash Plus, Ultra Durable Memory Armor, RGB FUSION 2.0, 12+2 Phase Power Design, Ultra Durable PCIe Armor, AMD Quad CrossFireX-teknologisupport, GIGABYTE Double Locking Bracket, On/Off Charge, NVIDIA 2-way SLI Technology Support, GIGABYTE Smart Fan 5, M.2 Thermal Guard, Fins-Array Heatsink & Direct Touch Heatpipe |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 |

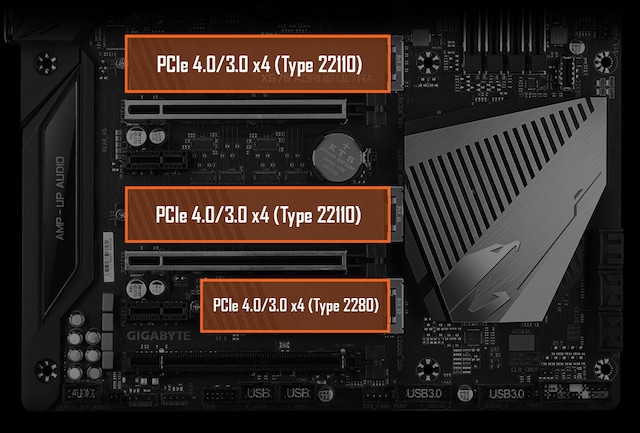

| Lagringsporte | 6 x SATA-600 (RAID), 3 x M.2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB 3.2 Gen 1, USB-C Gen2, USB 3.2 Gen 2 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Maks. allokeret RAM-størrelse | 16 GB |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Audio codec | Realtek ALC1220-VB |
| Type | Lydkort |
| Produkttype | Bundkort |
|---|
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
|---|
| Netværk | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
|---|---|
| Dataforbindelsesprotokol | IEEE 802.11n, IEEE 802.11ac, Fast Ethernet, IEEE 802.11b, Gigabit Ethernet, Ethernet, IEEE 802.11g, Bluetooth 5.0, 802.11ax, IEEE 802.11a |
| Ekspansionsåbninger | 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 tilstande (med 3. Generation Ryzen CPU), PCIe 3.0 x16/x0, x8/x8 tilstande (med 2. Generation Ryzen CPU), PCIe 3.0 x8/x0 tilstand (med Ryzen CPU med Radeon Vega Graphics/2. Generation Ryzen CPU med Radeon Graphics)), 2 x PCIe 4.0 x1, 1 x CPU, 4 x DIMM 288-pins, 1 x PCIe 4.0 x16 (x4-modus) |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 -stikforbindelser: 3 x M.2 |
|---|
| Interface | 1 x TOSLINK, 2 x USB 3.2 Gen 2, 1 x audio linje-ud - mini-jack, 1 x mikrofon - mini-jack, 3 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x audio linje-ind - mini-jack, 1 x HDMI, 1 x USB-C Gen2, 1 x LAN (Gigabit Ethernet), 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x audio linje-ud (bagtil) - mini-jack |
|---|
| Interne interfaces | 1 x audio - intern stik, 4 x USB 3.2 Gen 1 - intern stik, 1 x USB-C Gen2, 4 x USB 2.0 - intern stik |
|---|
| Software inkluderet | cFosSpeed, Norton Internet Security, GIGABYTE 3D OSD, Smart TimeLock, @BIOS, EasyTune, GIGABYTE App Center, Cloud Station, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE Smart HUD, GIGABYTE Smart Fan 5, XSplit Broadcaster (1 års licens), GIGABYTE Fast Boot, Xpress Install, GIGABYTE USB Blocker, XSplit Gamecaster (1 års licens), GIGABYTE Smart Survey |
|---|
