| Produktlinje | ASUS |
|---|---|

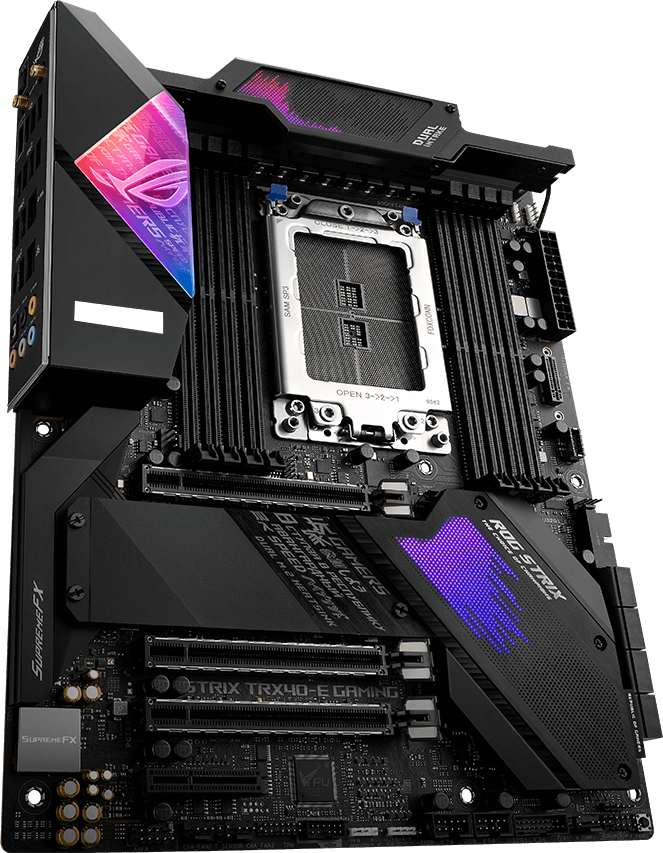

| Model | ROG Strix TRX40-E Gaming |
| Producentens garanti (måneder) | 36 |
| EAN | 4718017537100 |
| RAM Slots | 8 DIMM åbninger |
|---|---|
| Processor-socket | Socket sTRX4 |
| Chipsættype | AMD TRX40 |
| Kompatible processorer | Ryzen ThreadRipper |
| Model | ATX |
| Kommentarer om kompatible processorer | Understøtter 3. Generation Ryzen ThreadRipper |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |

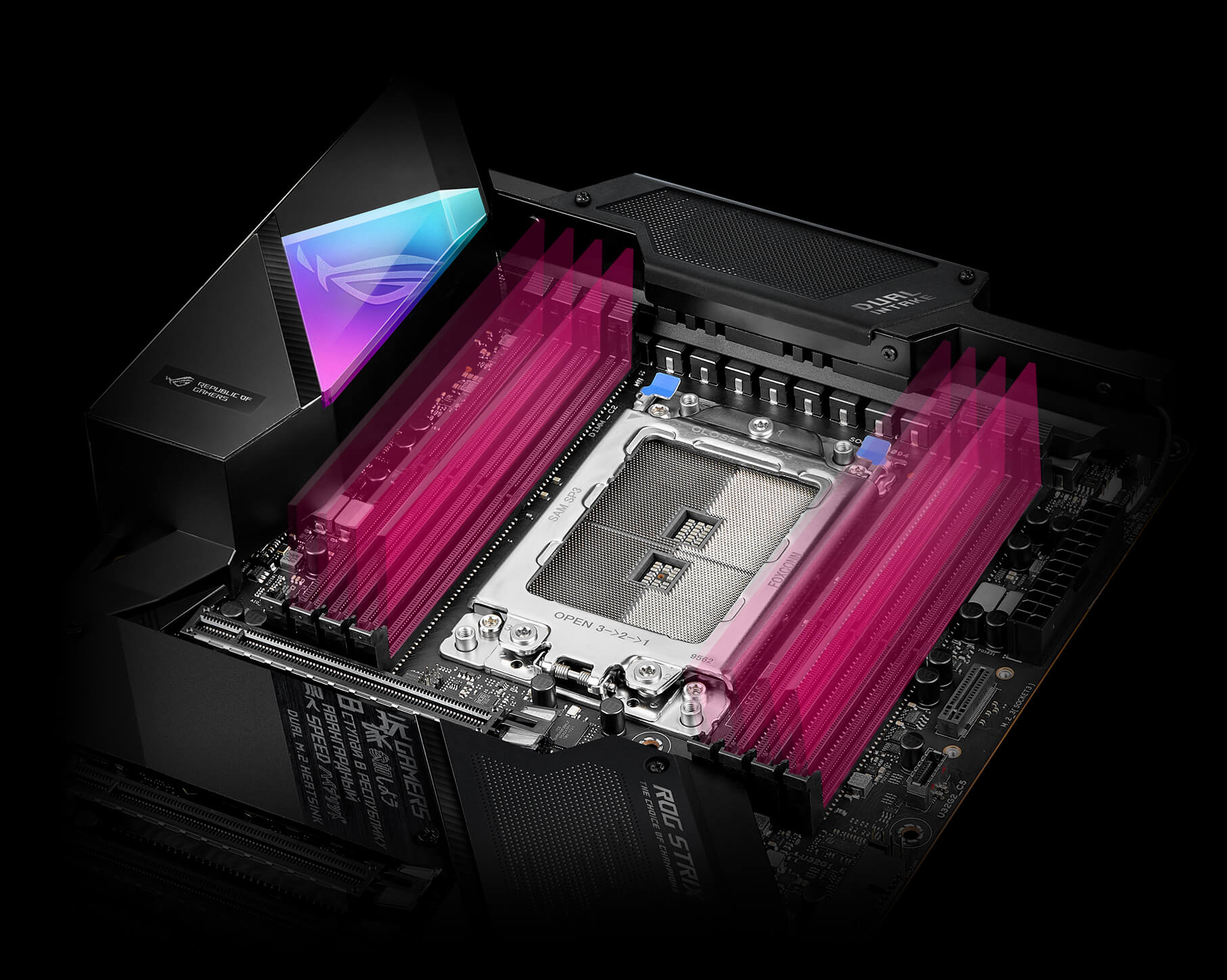

| Understøttet RAM-teknologi | DDR4 SDRAM |
| RAM-hastighed understøttet | 2800 MHz, 4400 MHz (O.C.), 2666 MHz, 4333 MHz (O.C.), 4133 MHz (O.C.), 2400 MHz, 3466 MHz (O.C.), 3200 MHz, 4600 MHz (O.C.), 3800 MHz (O.C.), 4266 MHz (O.C.), 2133 MHz, 3733 MHz (O.C.), 4666 MHz (O.C.), 3400 MHz (O.C.) |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | WfM 2.0 understøttet, SMBIOS 3,2 support, UEFI BIOS, USB BIOS Flashback, ACPI 6,2 support |
| Hardware egenskaber | SupremeFX Shielding teknologi, Præmonteret I/O-skjold, Jack retasking, ASUS Q-Design, ASUS TPU (TurboV Processing Unit), ASUS ProCool II, FlexKey-knap, NVIDIA 2-way SLI Technology Support, ASUS Node, Q-DIMM, Sonic Studio Link, Sonic Radar III, Q-Code, Sonic Studio III, Dual Intelligent Processors 5, ASUS Enhanced DRAM Overcurrent Protection, ASUS DIGI+ VRM, AURA RGB Lighting Control, ESD Guards, AMD CrossFireX-teknologisupport, LANGuard, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 4, Audio jack detektions teknologi, ASUS SafeSlot, ASUS 1.3" LiveDash, ASUS Q-Connector |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB-C Gen 2 + 7 x USB 3.2 Gen 2 + 4 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 |

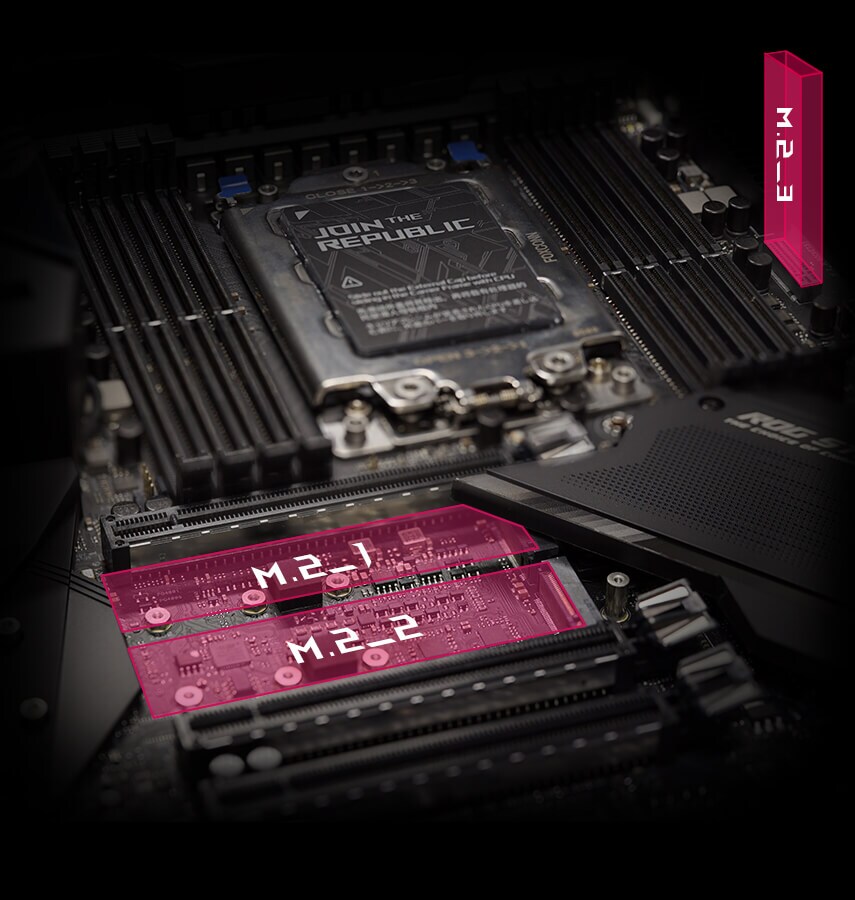

| Lagringsporte | 8 x SATA-600 , 3 x M.2 |
| USB/FireWire | USB 3.2 Gen 2, USB-C Gen2 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| Egenskaber | Quad kanal hukommelses arkitektur |
|---|
| Type | Ingen |
|---|
| Audio | High Definition Audio (8 kanaler) |
|---|---|
| Audio codec | SupremeFX (S1220) |
| Type | Lydkort |
| Overensstemmelsesstandarder | DTS Sound Unbound, High Definition Audio |
| Netværk controller | Intel I211-AT / Realtek RTL8125-CG / Intel AX200 |
|---|---|
| Dataforbindelsesprotokol | IEEE 802.11a, Gigabit Ethernet, 802.11ax, 2.5 Gigabit Ethernet, Fast Ethernet, IEEE 802.11n, IEEE 802.11g, Bluetooth 5.0, Ethernet, IEEE 802.11b |
| Netværk | Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11a/b/g/n/ax |
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | Plug and Play |
| Ekspansionsåbninger | 8 x DIMM 288-pins, 3 x PCIe 4.0 x16, 1 x CPU, 1 x PCIe 4.0 x16 (x4-modus) |
|---|
| Grænseflade (lagring) | PCIe 4.0 -stikforbindelser: 2 x M.2, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - 1 enheder, SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - 8 enheder |
|---|

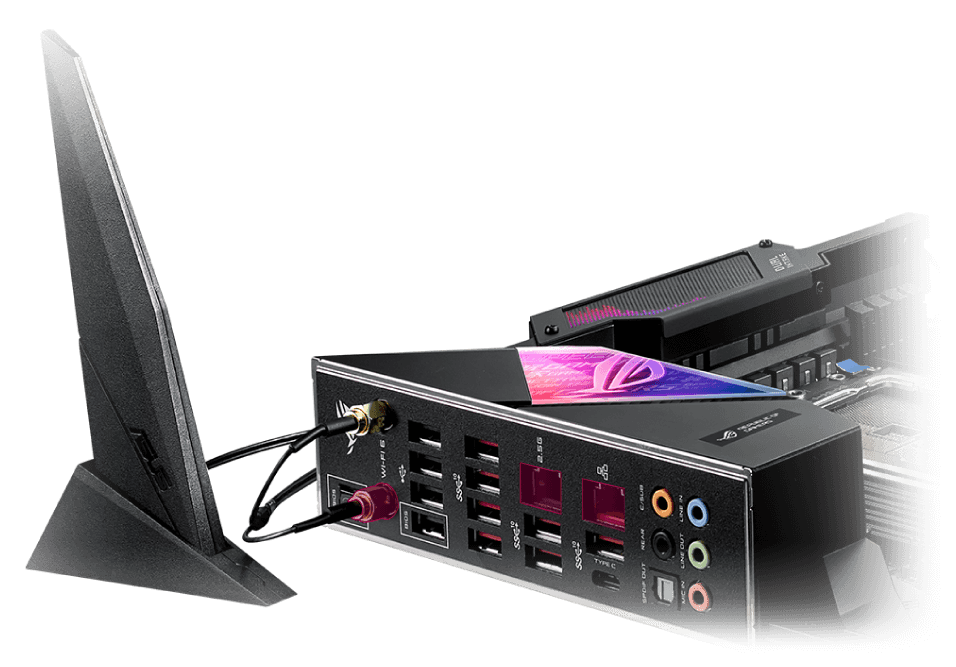

| Interface | 1 x USB-C Gen2, 1 x LAN (Gigabit Ethernet), 1 x LAN (2.5Gigabit Ethernet), 1 x audio linje-ud - mini-jack, 1 x mikrofon - mini-jack, 1 x TOSLINK, 1 x audio linje-ud (centrum/subwoofer) - mini-jack, 1 x audio linje-ind - mini-jack, 7 x USB 3.2 Gen 2, 4 x USB 2.0, 1 x audio linje-ud (bagtil) - mini-jack |
|---|
| Interne interfaces | 1 x højttaler - intern stik, 1 x USB-C Gen2 - intern stik, 4 x USB 3.2 Gen 1 - intern stik, 1 x audio - intern stik, 4 x USB 2.0 - intern stik |
|---|
| Software inkluderet | Sonic Studio Virtual Mixer, ASUS Turbo App, ROG GameFirst V, ASUS ROG RAMCache III, ASUS EZ Update, Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, Antivirus (OEM version), Overwolf, ASUS AI Charger+ |
|---|
