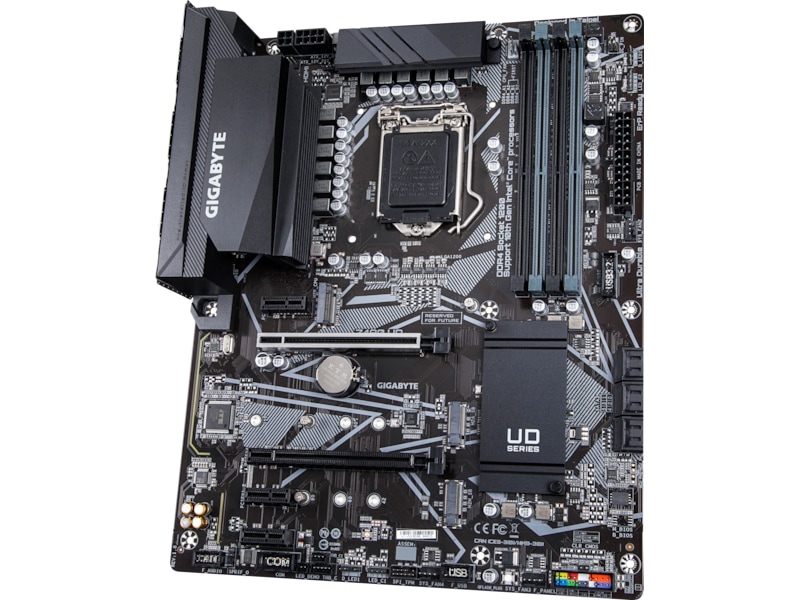

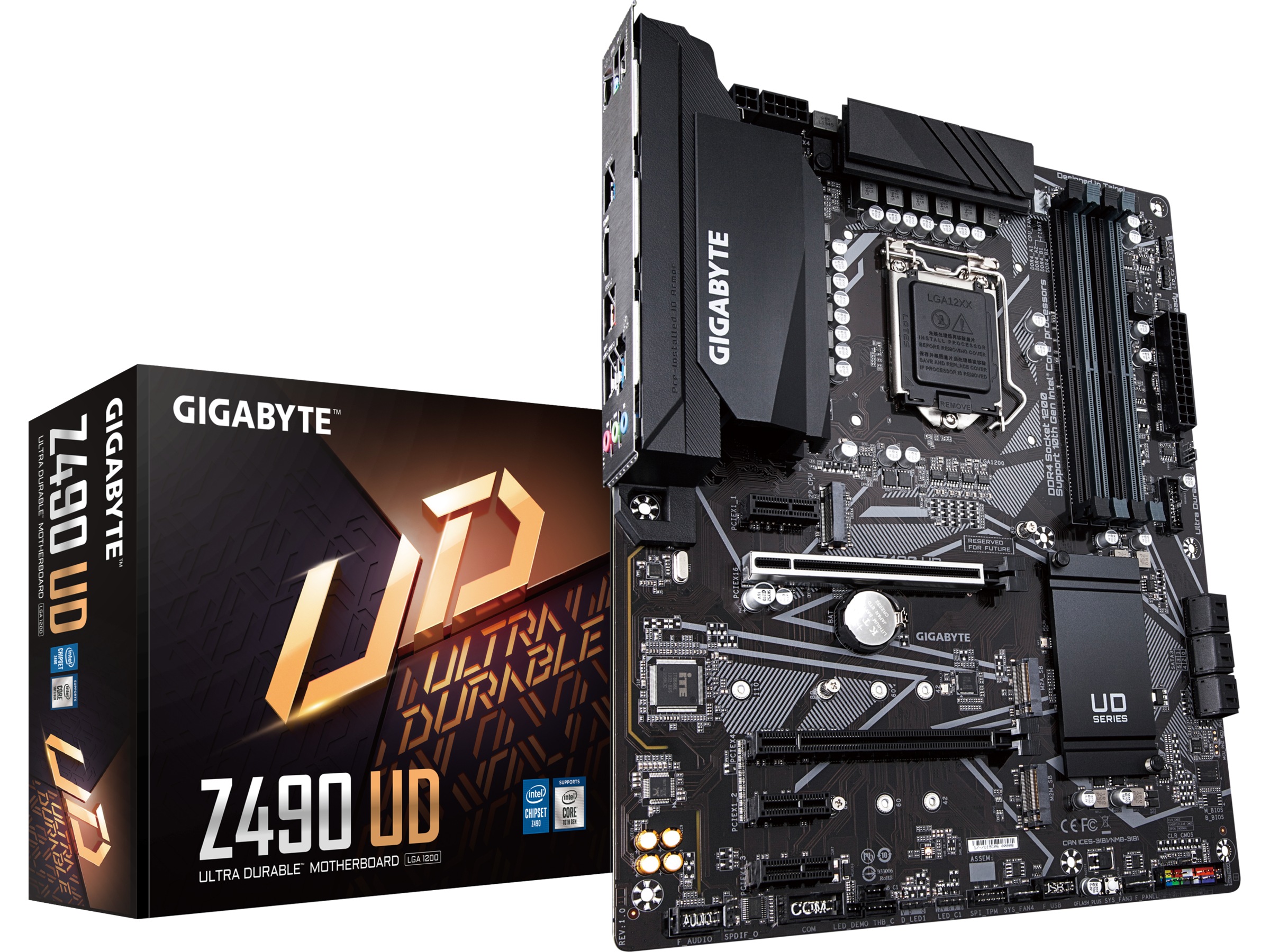

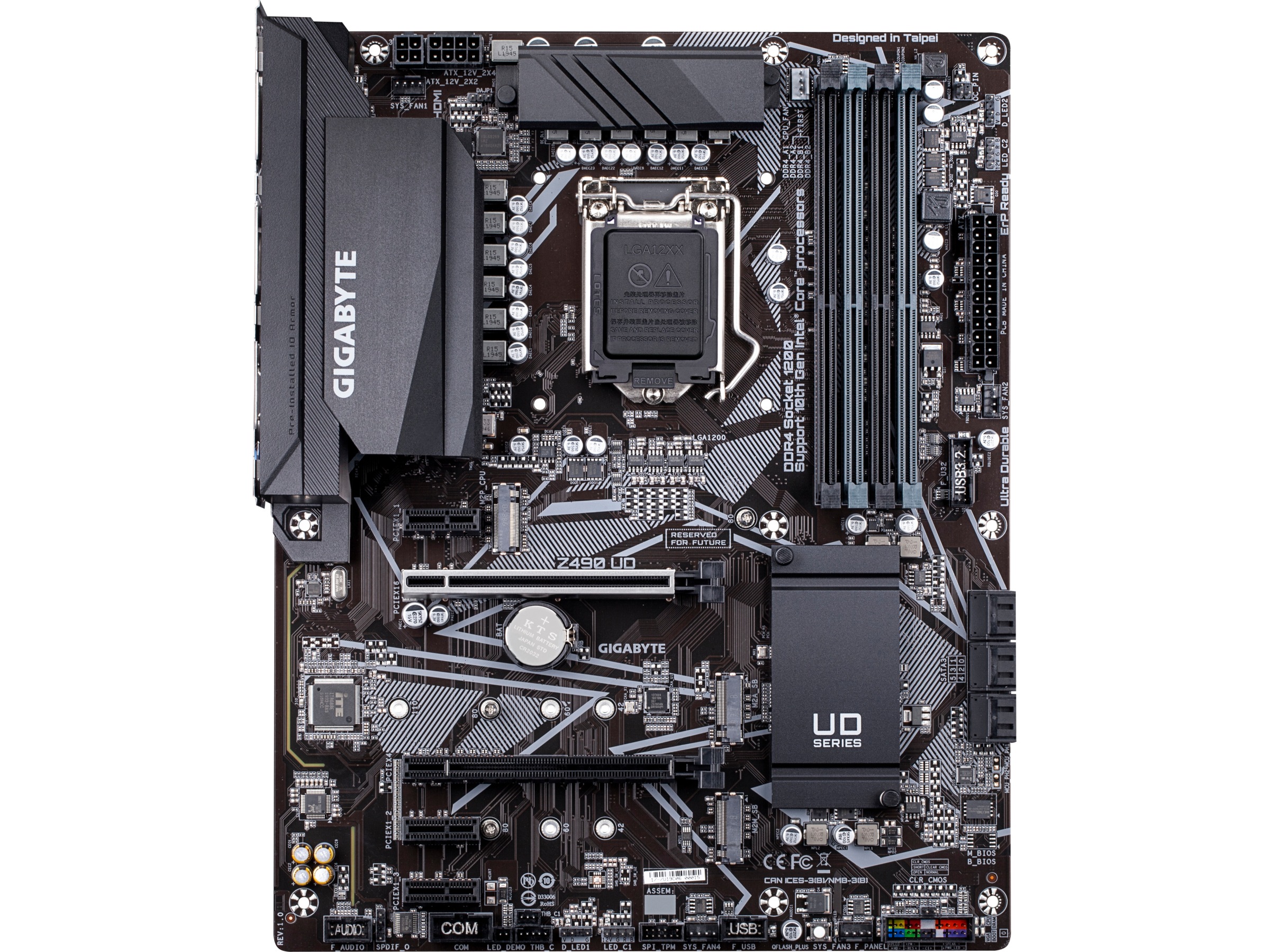

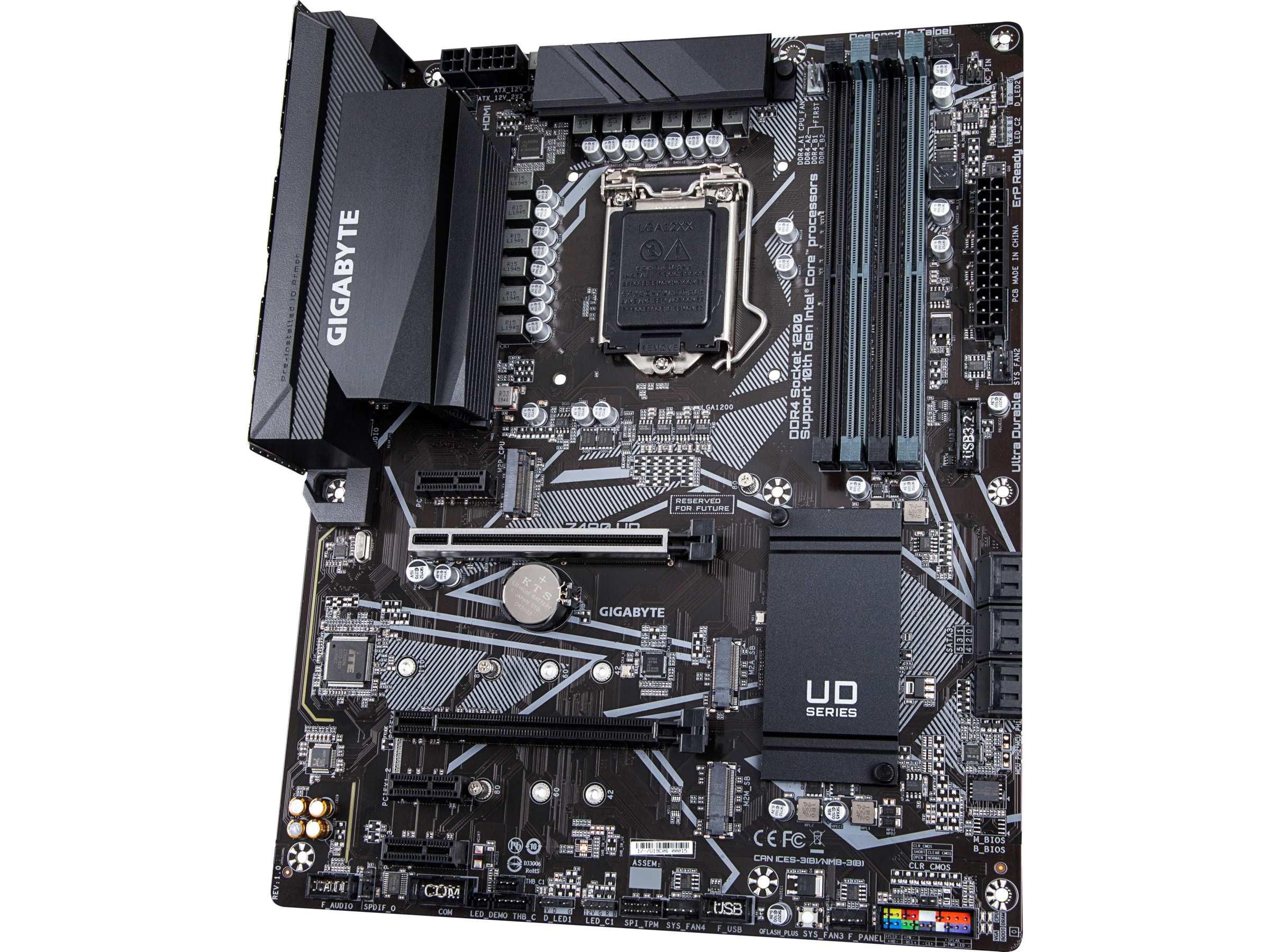

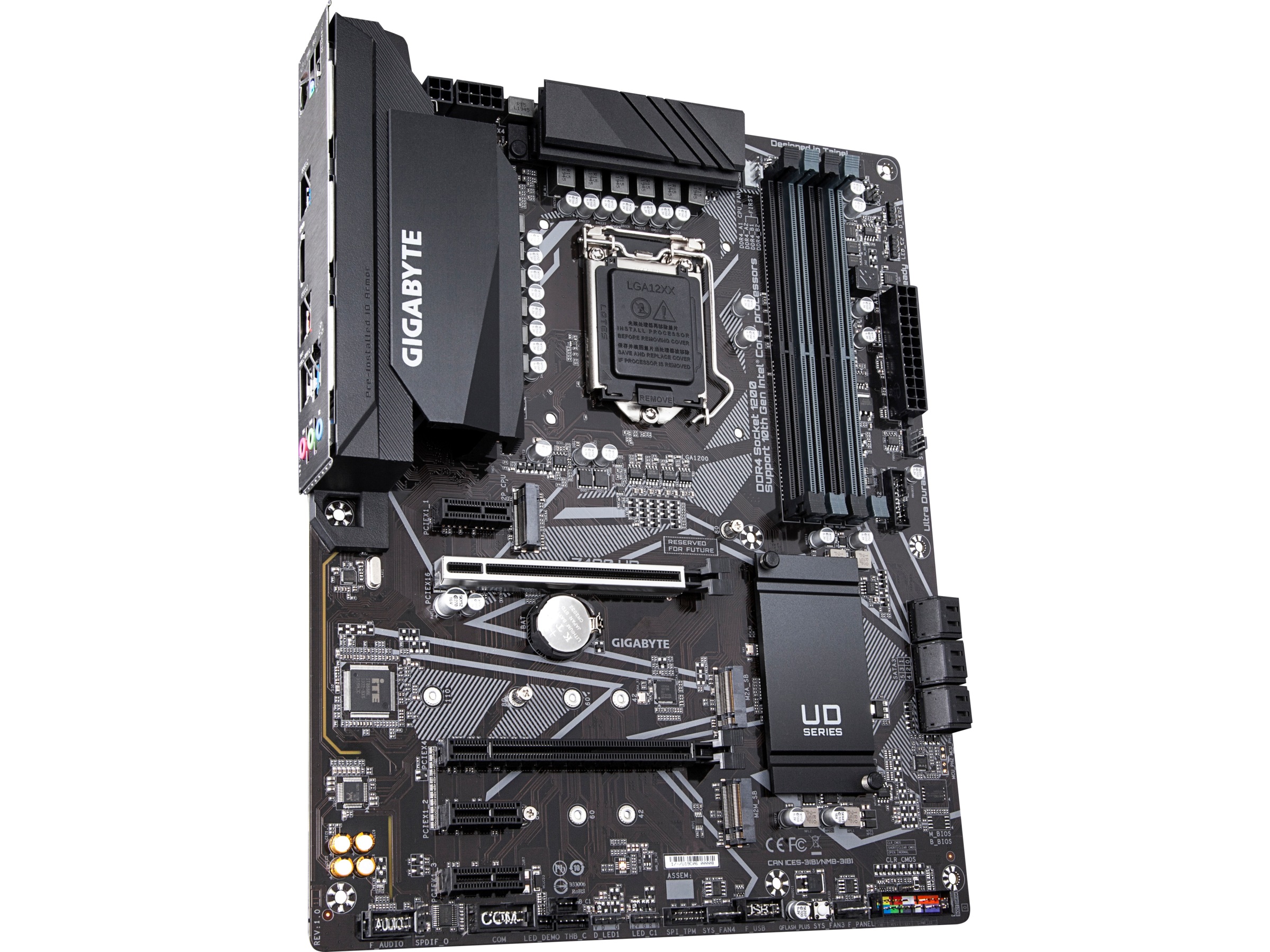

| Model | Z490 UD |
|---|---|
| Produktlinje | Gigabyte |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331808518 |
| Model | ATX |
|---|---|
| Chipsættype | Intel Z490 |
| Kommentarer om kompatible processorer | Understøtter 10. Generation Intel Core / Pentium / Celeron |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| RAM Slots | 4 DIMM åbninger |
| Processor-socket | LGA1200 sokkel |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC (drift i ikke-ECC tilstand) |
| Strømkontakter | 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| Kompatible processorer | Core i3, Celeron, Core i9, Core i5, Core i7, Pentium |
| RAM-hastighed understøttet | 3866 MHz (O.C.), 3333 MHz (O.C.), 4500 MHz (O.C.), 3666 MHz (O.C.), 2666 MHz, 2800 MHz, 3800 MHz (O.C.), 2133 MHz, 4400 MHz (O.C.), 4133 MHz (O.C.), 3600 MHz (O.C.), 3466 MHz (O.C.), 2400 MHz, 3733 MHz (O.C.), 4000 MHz (O.C.), 3200 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 3400 MHz (O.C.), 3000 MHz (O.C.), 2933 MHz, 3300 MHz (O.C.) |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Hardwareovervågning | CPU kernetemperatur, Systemspænding, Takometer til chassis-blæser, Takometer til CPU-blæser, Blæserfejlvarsel, Chassis temperatur, Beskyttelse mod CPU overophedning, CPU kerne-spænding |
| BIOS-egenskaber | DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, UEFI BIOS, ACPI 5.0 support |
| Hardware egenskaber | Solid Pin Power Connectors, Advanced Thermal Design with Enlarge Heatsink, Q-Flash Plus, Intel Optane Memory Ready, Audio Noise Guard, CEC 2019 Ready, Ultra Durable, 11+1 Phase Power Design, GIGABYTE Double Locking Bracket, AMD Quad CrossFireX-teknologisupport, AMD CrossFireX-teknologisupport, Anti-Sulfur Design, MOS Heatsink, Ultra Durable PCIe Armor, RGB FUSION 2.0, On/Off Charge, Præmonteret I/O-skjold, GIGABYTE Smart Fan 5 |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB 3.2 Gen 2 + 5 x USB 3.2 Gen 1 + 2 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 2 x USB 3.2 Gen 1 + 2 x USB 2.0 |
| Lagringsporte | 6 x SATA-600 (RAID), 2 x M.2 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| USB/FireWire | USB 3.2 Gen 2, USB 3.2 Gen 1 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Maks. allokeret RAM-størrelse | 512 MB |
|---|
| Type | Lydkort |
|---|---|
| Overensstemmelsesstandarder | High Definition Audio |
| Audio | High Definition Audio (8 kanaler) |
| Audio codec | Realtek ALC887 |
| Netværk | Gigabit Ethernet |
|---|---|
| Dataforbindelsesprotokol | Gigabit Ethernet |
| Produkttype | Bundkort |
|---|
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), Understøttede ECC-moduler fungerer i ikke-ECC-tilstand |
|---|
| Ekspansionsåbninger | 4 x DIMM 288-pins, 1 x CPU, 3 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4-modus), 1 x PCIe 3.0 x16 |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe -stikforbindelser: 1 x M.2, PCIe -stikforbindelser: 1 x M.2 |
|---|

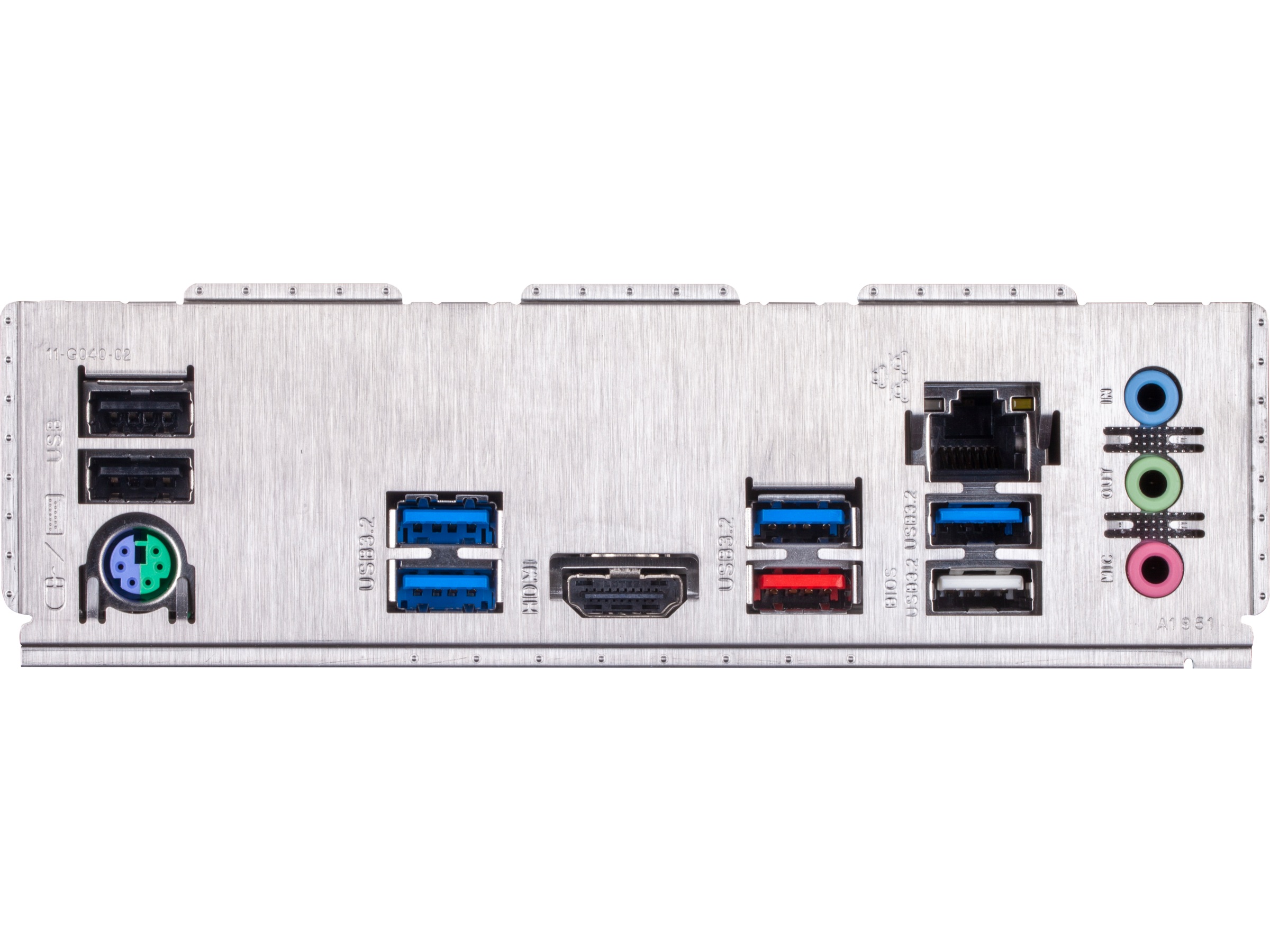

| Interface | 1 x audio linje-ud - mini-jack, 1 x audio linje-ind - mini-jack, 5 x USB 3.2 Gen 1, 1 x LAN (Gigabit Ethernet), 1 x USB 3.2 Gen 2, 1 x HDMI, 1 x mikrofon - mini-jack, 2 x USB 2.0, 1 x PS/2-tastatur/mus |
|---|
| Interne interfaces | 2 x USB 3.2 Gen 1 - intern stik, 2 x Thunderbolt - intern stik, 1 x seriel - intern stik, 1 x SPDIF ud - intern stik, 2 x USB 2.0 - intern stik, 1 x audio - intern stik |
|---|
| Software inkluderet | Xpress Install, @BIOS, EasyTune, Realtek Gaming LAN Bandwidth Control, GIGABYTE Fast Boot, Norton Internet Security, GIGABYTE Smart Backup, GIGABYTE App Center |
|---|
