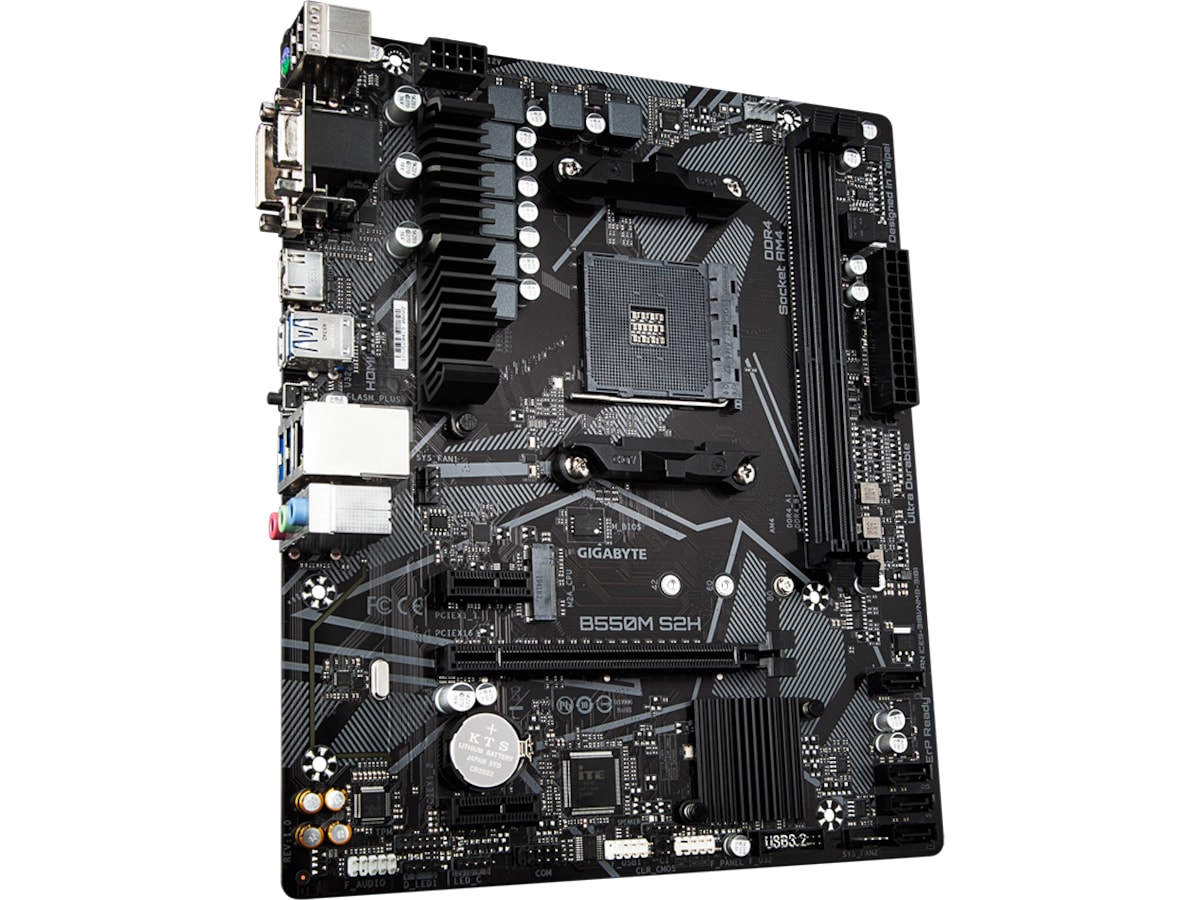

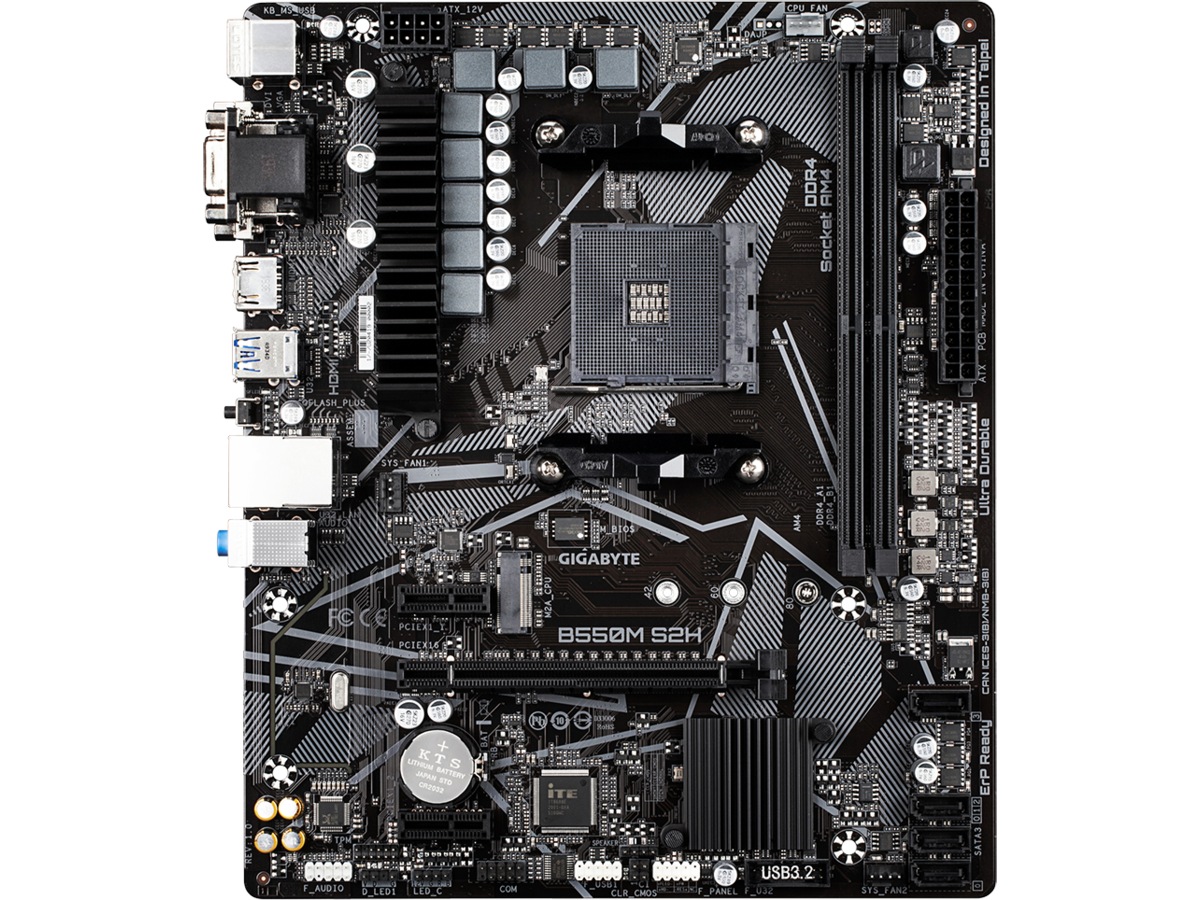

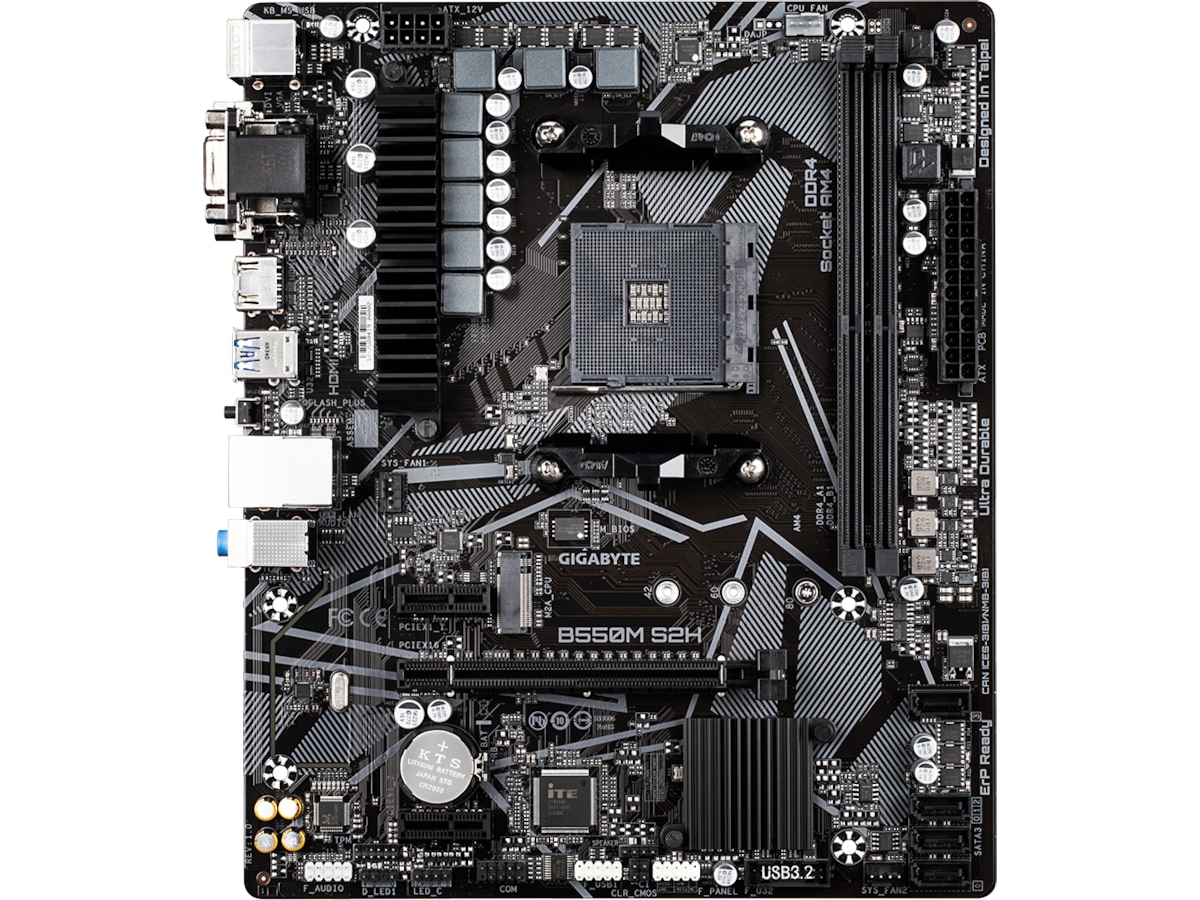

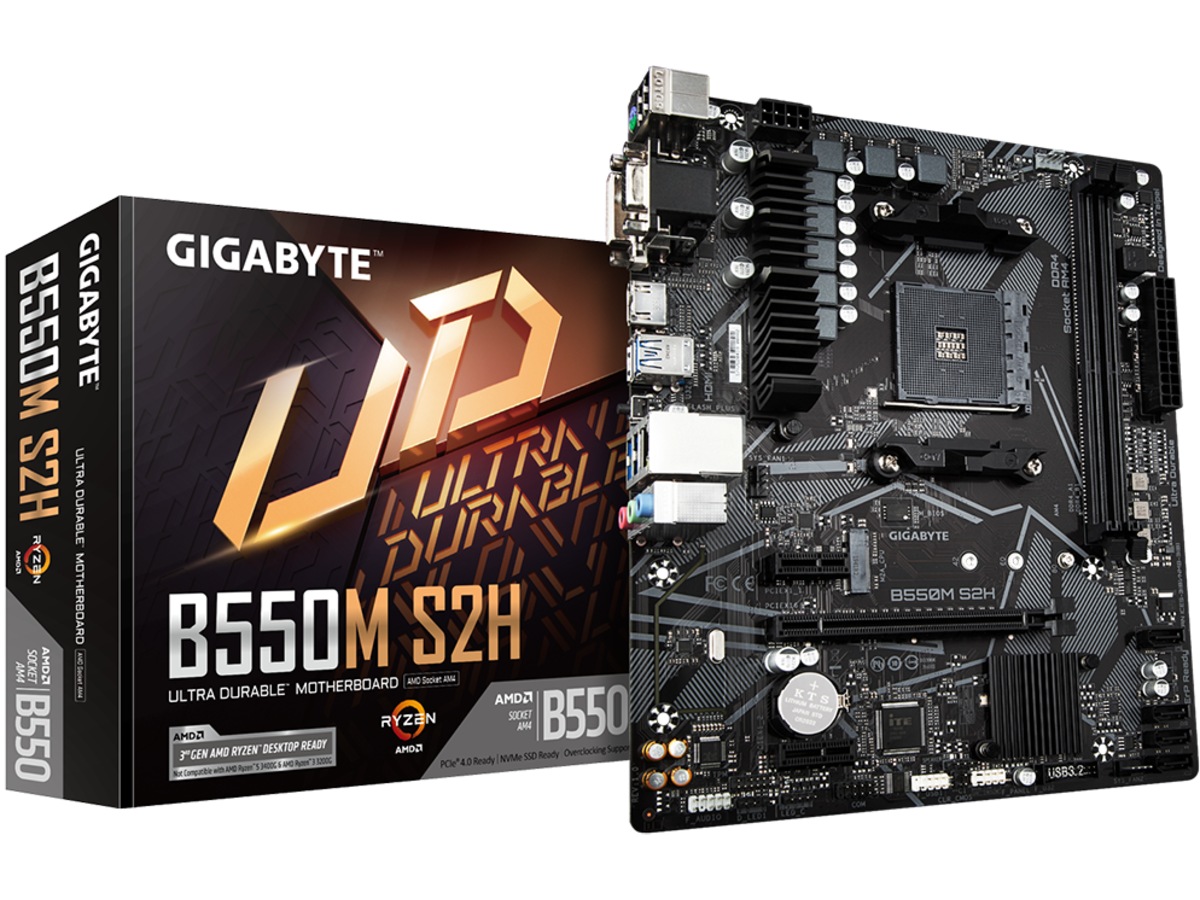

| Model | B550M S2H |
|---|---|
| Produktlinje | Gigabyte |
| Producentens garanti (måneder) | 36 |
| EAN | 4719331809591 |
| Chipsættype | AMD B550 |
|---|---|
| RAM Slots | 2 DIMM slots |
| Kompatible processorer | Ryzen |
| Model | Micro ATX |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Processor-socket | Socket AM4 |
| Understøttet RAM-teknologi | DDR4 SDRAM |
| Kommentarer om kompatible processorer | Understøtter 3. Generation Ryzen /3. Generation Ryzen med Radeon Graphics |
| RAM-hastighed understøttet | 2400 MHz, 4000 MHz (O.C.), 2133 MHz, 3333 MHz (O.C.), 3200 MHz, 2667 MHz, 4400 MHz (O.C.), 4600 MHz (O.C.), 5000 MHz (O.C.), 4866 MHz (O.C.), 3600 MHz (O.C.), 2933 MHz |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC |
| Strømkontakter | 8-pin ATX12V-kontakt, 24-pin hovedstrøm-konnektor |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| Hardware egenskaber | Q-Flash Plus, Ultra Durable, Anti-Sulfur Design, Audio Noise Guard med Path Lighting, On/Off Charge, GIGABYTE Smart Fan 5, Solid Pin Power Connectors, RGB FUSION 2.0, 5+3 Phase Power Design, Game Boost, GIGABYTE Double Locking Bracket |
| Hardwareovervågning | CPU kerne-spænding, Takometer til chassis-blæser, Beskyttelse mod CPU overophedning, Systemspænding, CPU kernetemperatur, Chassis temperatur, Takometer til CPU-blæser |
| BIOS-egenskaber | ACPI 5.0 support, WfM 2.0 understøttet, DMI 2.7 support, SMBIOS 2.7 support, UEFI BIOS |
| USB / FireWire portkonfiguration (samlekasser) | 2 x USB 3.2 Gen 1 + 2 x USB 2.0 |
|---|---|
| USB/FireWire | USB 3.2 Gen 1 |
| USB / FireWire portkonfiguration (aktiv) | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Maks. allokeret RAM-størrelse | 16 GB |
|---|
| Overensstemmelsesstandarder | High Definition Audio |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Type | Lydkort |
| Audio codec | Realtek ALC887 |
| Netværk | Gigabit Ethernet |
|---|---|
| Dataforbindelsesprotokol | Ethernet, Gigabit Ethernet, Fast Ethernet |
| Produkttype | Bundkort |
|---|
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) |
|---|
| Ekspansionsåbninger | 2 x DIMM 288-pins, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU), PCIe 3.0 x16 tilstand (med 3. Generation Ryzen med Radeon Graphics CPU)), 2 x PCIe 3.0 x1, 1 x CPU |
|---|
| Grænseflade (lagring) | SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 |
|---|

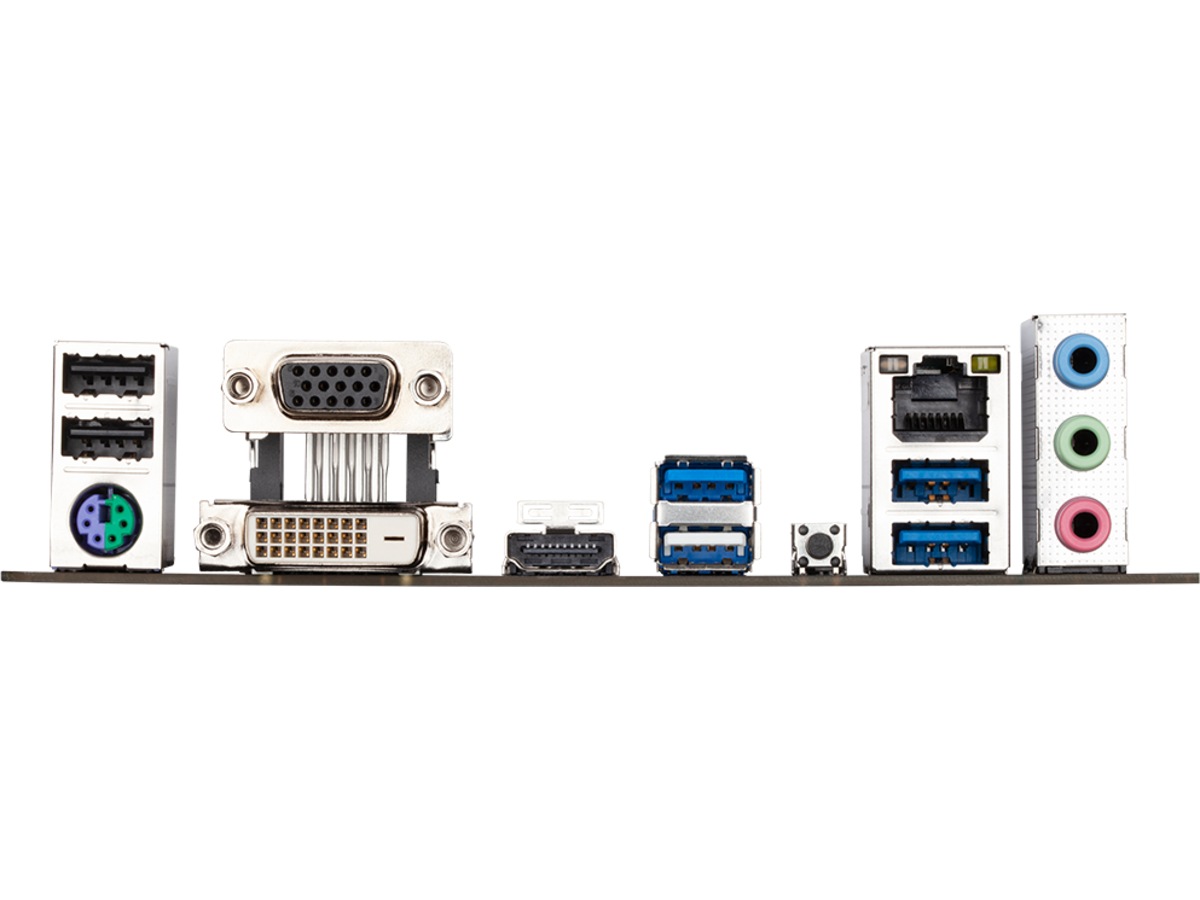

| Interface | 1 x audio linje-ud - mini-jack, 1 x HDMI, 1 x LAN (Gigabit Ethernet), 1 x mikrofon - mini-jack, 1 x DVI-D, 2 x USB 2.0, 1 x VGA, 1 x audio linje-ind - mini-jack, 1 x PS/2-tastatur/mus, 4 x USB 3.2 Gen 1 |
|---|
| Interne interfaces | 1 x audio - intern stik, 1 x seriel - intern stik, 2 x USB 2.0 - intern stik, 2 x USB 3.2 Gen 1 - intern stik, 1 x højttaler - intern stik |
|---|
| Software inkluderet | GIGABYTE Fast Boot, GIGABYTE Smart Backup, Xpress Install, EasyTune, Norton Internet Security, Realtek Gaming LAN Bandwidth Control, GIGABYTE App Center, @BIOS |
|---|
