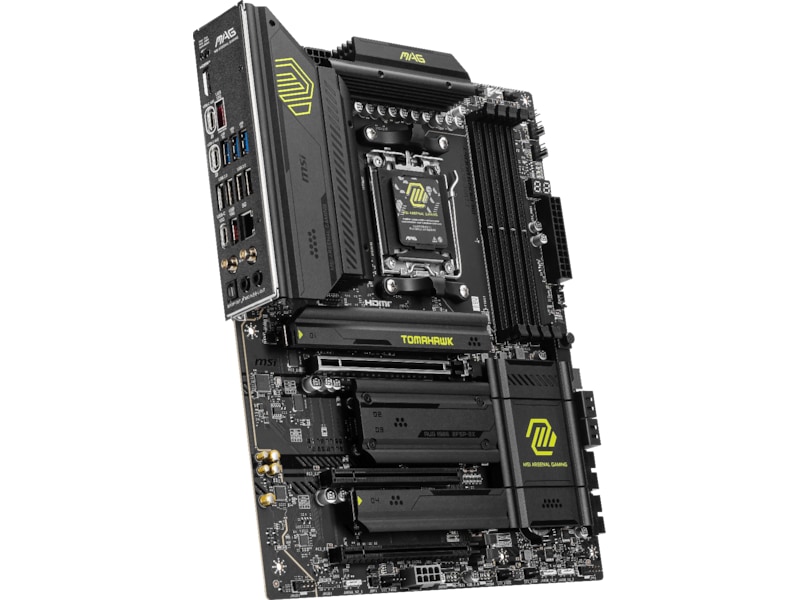

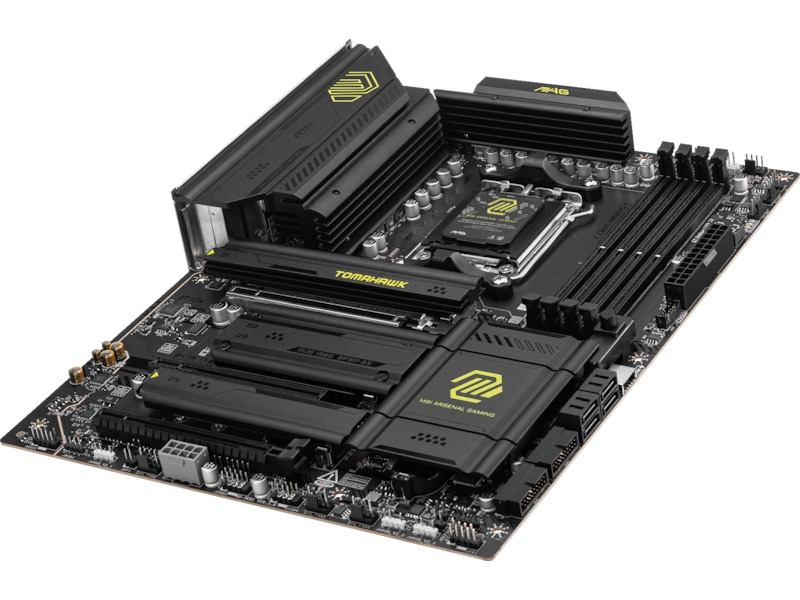

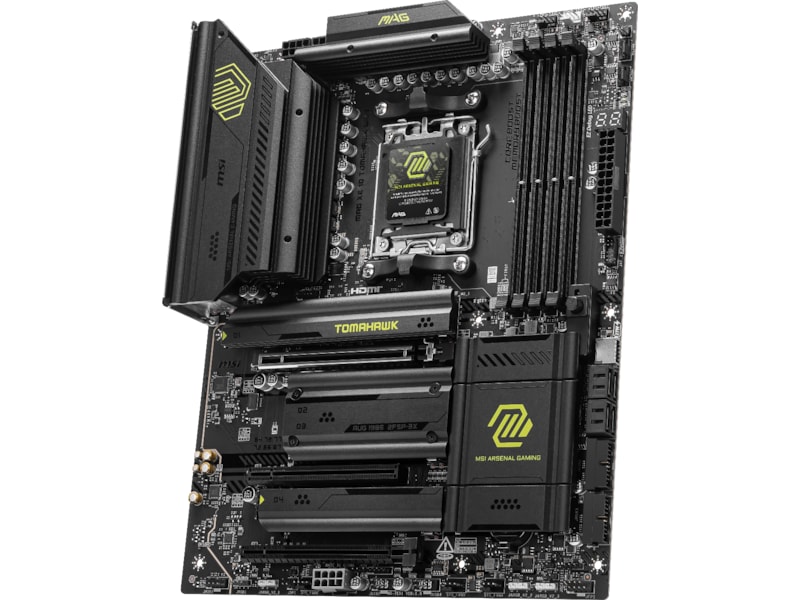

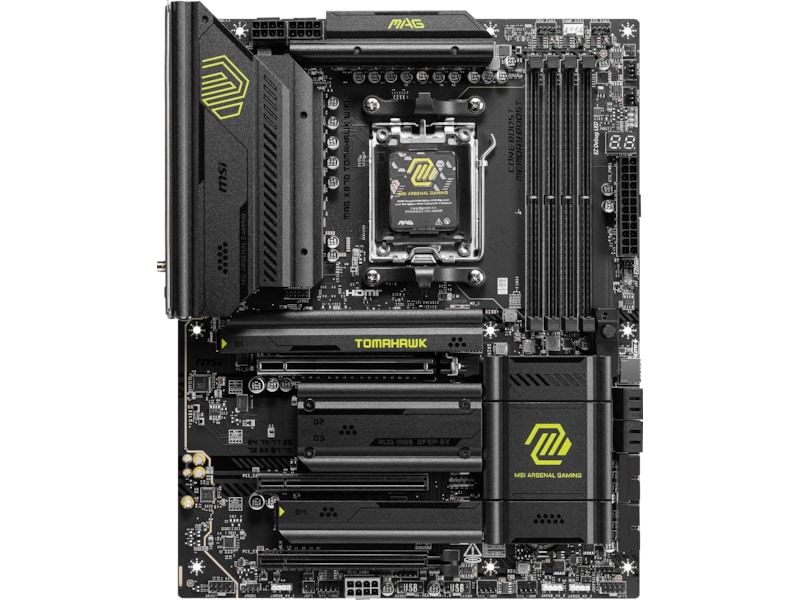

| Model | MAG X870 TOMAHAWK WIFI |
|---|---|
| Produktlinje | MSI |
| Producentens garanti (måneder) | 36 |
| EAN | 4711377254557 |
| Chipsættype | AMD X870 |
|---|---|
| RAM Slots | 4 DIMM åbninger |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Processor-socket | Socket AM5 |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Model | ATX |
| Kommentarer om kompatible processorer | Understøtter Ryzen 7000/8000/9000 Serien |
| I/O Controller | Nuvoton NCT6687-R |
| RAM-hastighed understøttet | 3200 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 3300 MHz (O.C.), 4200 MHz (O.C.), 3900 MHz (O.C.), 3000 MHz (O.C.), 2500 MHz, 3500 MHz (O.C.), 3800 MHz (O.C.), 2700 MHz, 3400 MHz (O.C.), 2400 MHz, 2800 MHz (O.C.), 4100 Mhz (O.C), 3700 MHz (O.C.), 3100 MHz (O.C.), 2900 MHz (O.C.), 2600 MHz |
| Strømkontakter | 2 x 8-pins ATX12V stikforbindelser, 24-pin hovedstrøm-konnektor, 8-pins PCI Express strøm-stikforbindelse |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | UEFI BIOS, MSI ClickBIOS, SMBIOS 3,7 support, ACPI 6,5 support |
| Hardware egenskaber | 8 Layer PCB, M.2 Shield FROZR, EZ Debug LED, MSI Steel Armor II, Super Charger, Flash BIOS-knap, Enlarged Chipset Heatsink, Clear CMOS Button, MSI Core Boost, Præmonteret I/O-skjold, MSI AI Engine, AMD Precision Boost Overdrive (PBO), EZ PCIe frigivelse, MSI Audio Boost 5, 2oz Copper PCB, DIY Friendly Design, CUDIMM støtte, MSI Memory Boost, Frozr AI Cooling, EZ Conn-Design, Lightning gen5-løsning, EZ M.2 Sheild FROZR II, 14+2+1 Phase Power Design, Extended Heatsink Design, EZ M.2 Clip II, MSI Mystic Light, EZ LED control |
| Lagringsporte | 4 x SATA-600 (RAID), 4 x M.2 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 2 x USB4 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| USB/FireWire | USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB4 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Audio codec | Realtek ALC4080 |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Overensstemmelsesstandarder | High Definition Audio |
| Type | Lydkort |
| Netværk controller | Realtek RTL8126CG |
|---|---|
| Netværk | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet |
| Dataforbindelsesprotokol | 5 Gigabit Ethernet, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), Fast Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11n, Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4 |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
|---|
| Produkttype | Bundkort |
|---|---|
| Overensstemmelsesstandarder | DisplayPort 1.4 |
| Inkluderet tilbehør | 1 to 3 EZ Conn-Cable, EZ-frontpanelkabel, Kabelmærkat, 3 x EZ M.2-klemme, USB-drev, Wi-Fi-antenne, EZ M.2 clipfjerner |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi |
|---|
| Ekspansionsåbninger | 1 x M.2 socket (2280/22.110 M.2 Key M-åbning), 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x1, 1 x M.2 socket (Key E), 1 x PCIe 4.0 x4, 1 x CPU, 3 x M.2 socket (2260/2280 M.2 Key M-åbning), 4 x DIMM 288-pins |
|---|
| Grænseflade (lagring) | PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA |
|---|

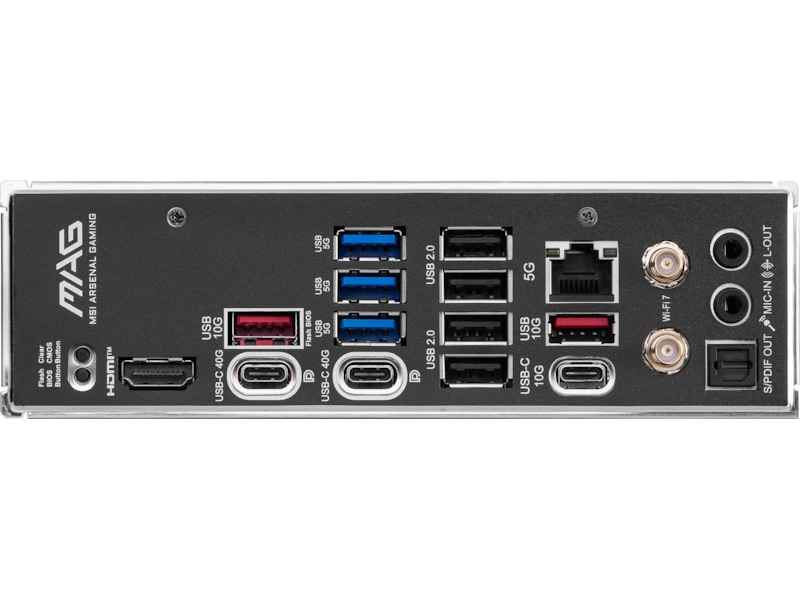

| Interface | 4 x USB 2.0, 2 x USB 3.2 Gen 2, 1 x mikrofon - mini-jack, 3 x USB 3.2 Gen 1, 2 x antenne, 1 x LAN (5Gigabit Ethernet), 1 x audio linje-ud - mini-jack, 1 x HDMI, 1 x SPDIF-ud, 1 x USB-C 3.2 Gen 2, 2 x USB4 |
|---|
| Interne interfaces | 4 x USB 3.2 Gen 1 - intern stik, 1 x audio - intern stik, 1 x USB-C 3.2 Gen 2x2 - intern stik, 4 x USB 2.0 - intern stik, 1 x SPI - intern stik |
|---|
| Software inkluderet | MSI Center, MSI CPU-Z, Adobe Creative Cloud (gratis prøve), MSI App Player, Norton 360, AIDA64 Extreme - MSI Edition, Drivers & Utilities |
|---|
