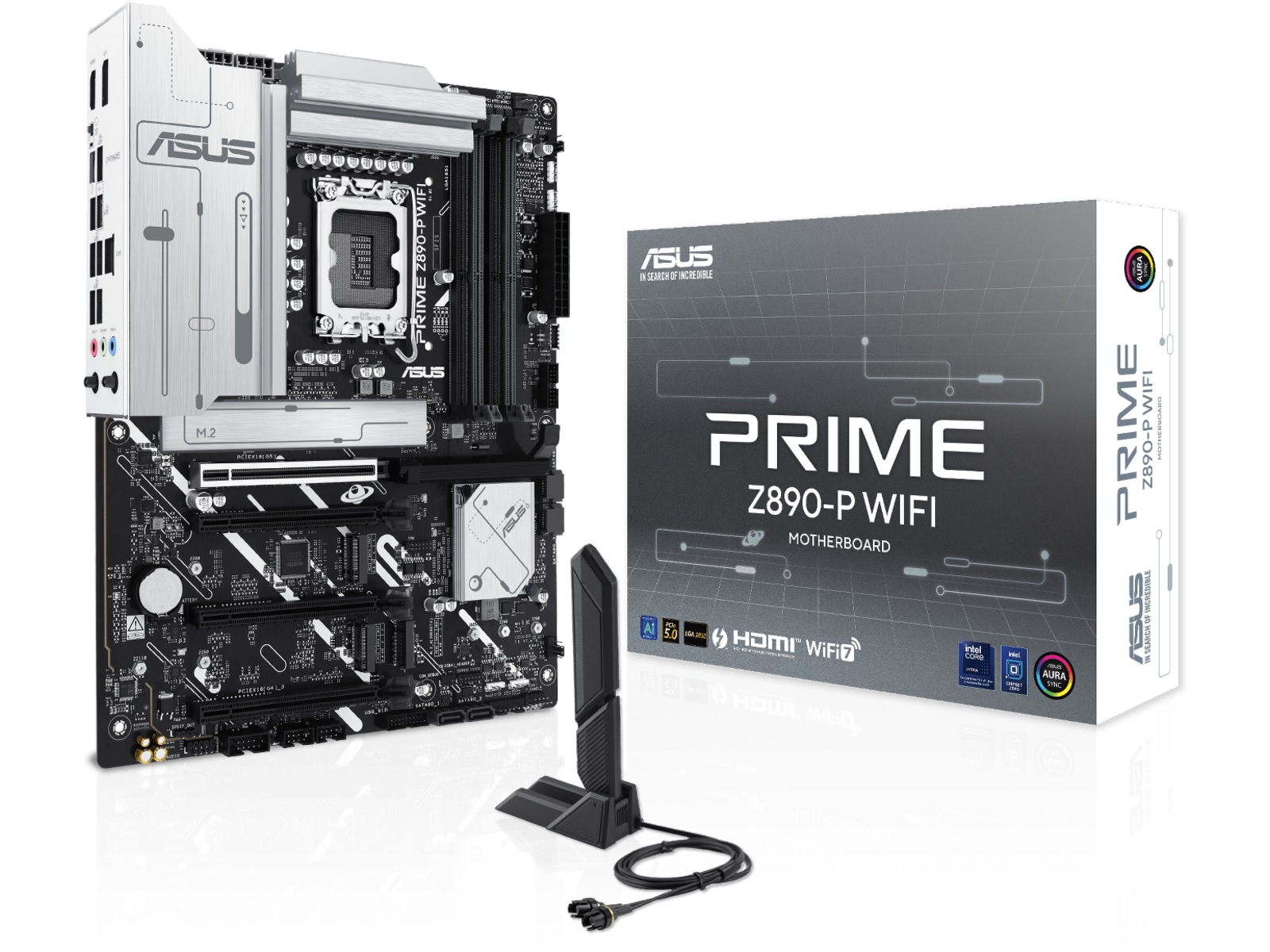

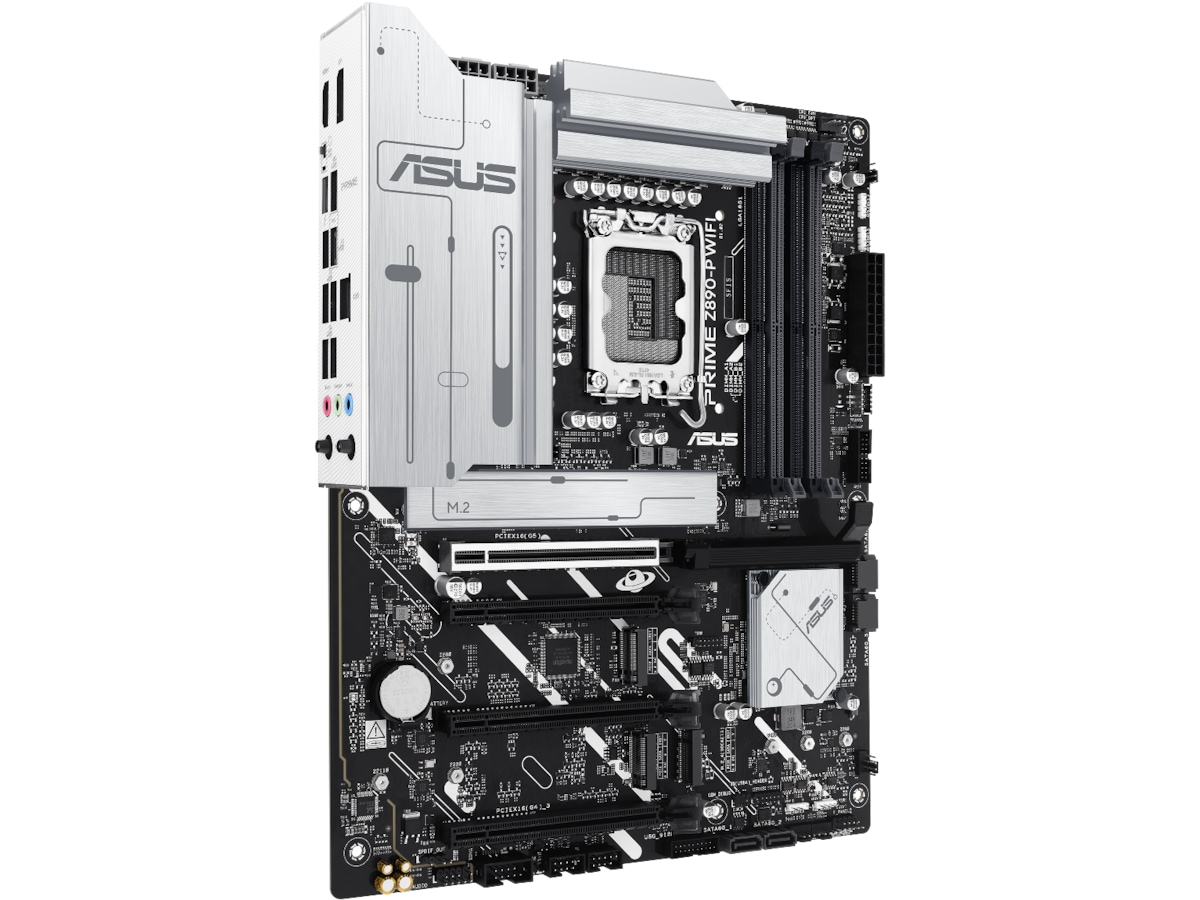

| Model | PRIME Z890-P WIFI |
|---|---|
| Produktlinje | ASUS |
| Producentens garanti (måneder) | 24 |
| EAN | 4711387754818 |
| Chipsættype | Intel Z890 |
|---|---|
| RAM Slots | 4 DIMM åbninger |
| Kommentarer om kompatible processorer | Understøtter Intel Core Ultra-processorer (Serie 2) |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Processor-socket | LGA1851 sokkel |
| RAM-hastighed understøttet | 4333 MHz (O.C.) |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Model | ATX |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser |
| BIOS-type (Basic Input/Output System) | AMI |
|---|---|
| BIOS-egenskaber | ASUS UEFI BIOS EZ Mode, ASUS EZ Flash, UEFI BIOS |
| Sov/ Vågn | Vågn på PME, Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber | 6 Layer PCB, ASUS ProCool, ASUS Overvoltage Protection, Chipset-kølelegeme, Q-LED Core, Q-DIMM, ASUS EZ DIY, BIOS FlashBack-knap, Intel Turbo Boost Max Technology 3.0, ASUS SafeSlot, Præmonteret I/O-skjold, Q-Slot, ASUS 5X Protection III, Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS Stainless Steel Back I/O, Q-Antenna, AI Networking II, LANGuard, CUDIMM støtte, ASUS Q-Design, ASUS DIGI+ VRM, Q-Dashboard, ASUS Enhanced Memory Profile (AEMP) III, 14+1+2+1 Phase Power Design, VRM kølelegemedesign, AI Cooling II, NPU Boost, PCIe Slot Q-Release, BIOS FlashBack LED, ASUS Aura Sync, Intel Turbo Boost Technology 2.0 |
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 |
|---|---|
| USB / FireWire portkonfiguration (aktiv) | 1 x USB4 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| Lagringsporte | 4 x SATA-600 (RAID), 4 x M.2 |
| USB/FireWire | USB 3.2 Gen 2, USB 3.2 Gen 1, USB4, USB-C 3.2 Gen 1 |
| Lagring | M.2 åbning, Serial ATA-600 (RAID) |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Audio | High Definition Audio (8 kanaler) |
|---|---|
| Overensstemmelsesstandarder | High Definition Audio |
| Type | Lydkort |

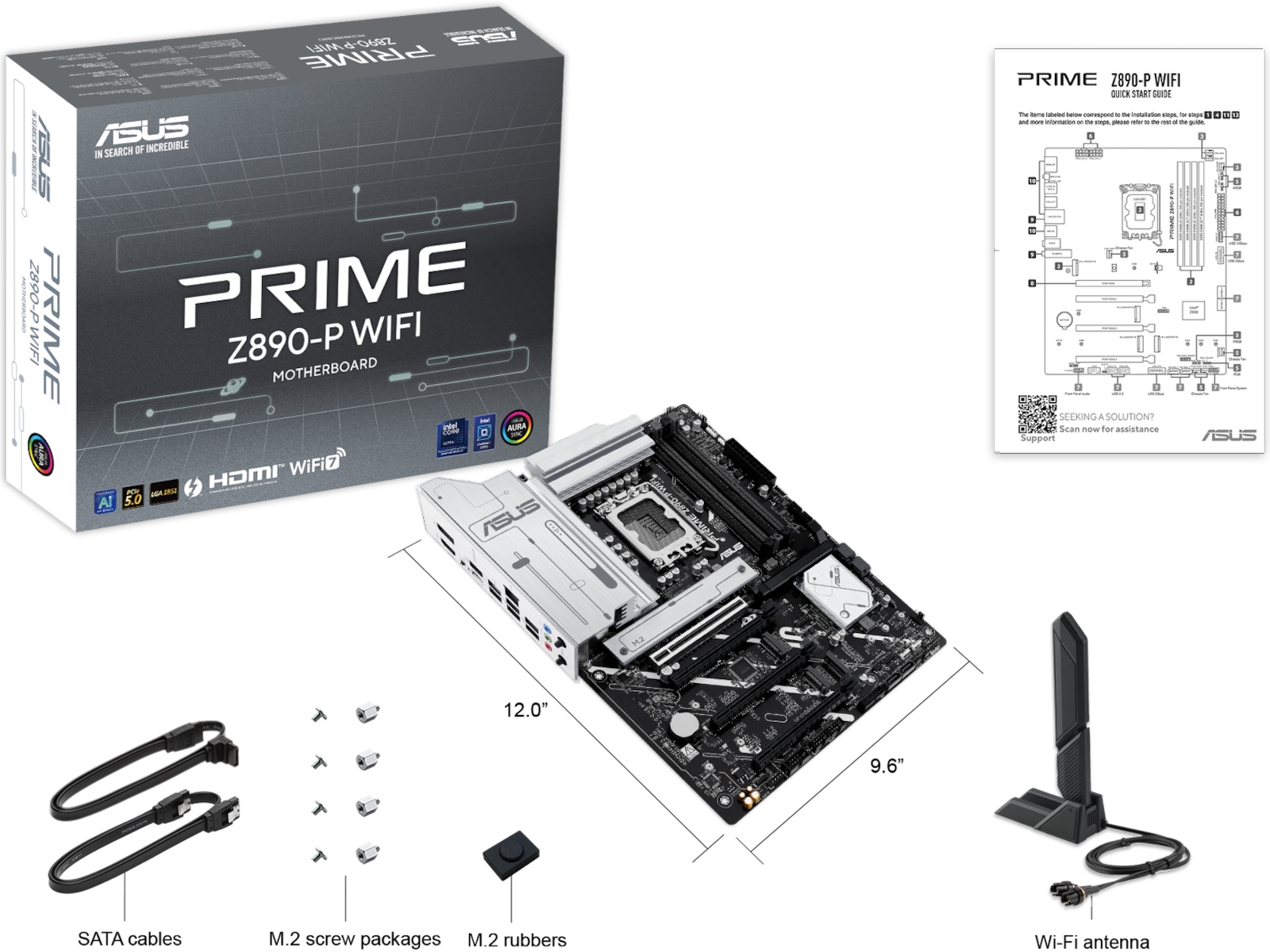

| Medfølgende ledninger | 2 x SATA Express-kabel |
|---|
| Overensstemmelsesstandarder | DisplayPort 1.4 |
|---|---|
| Produkttype | Bundkort |

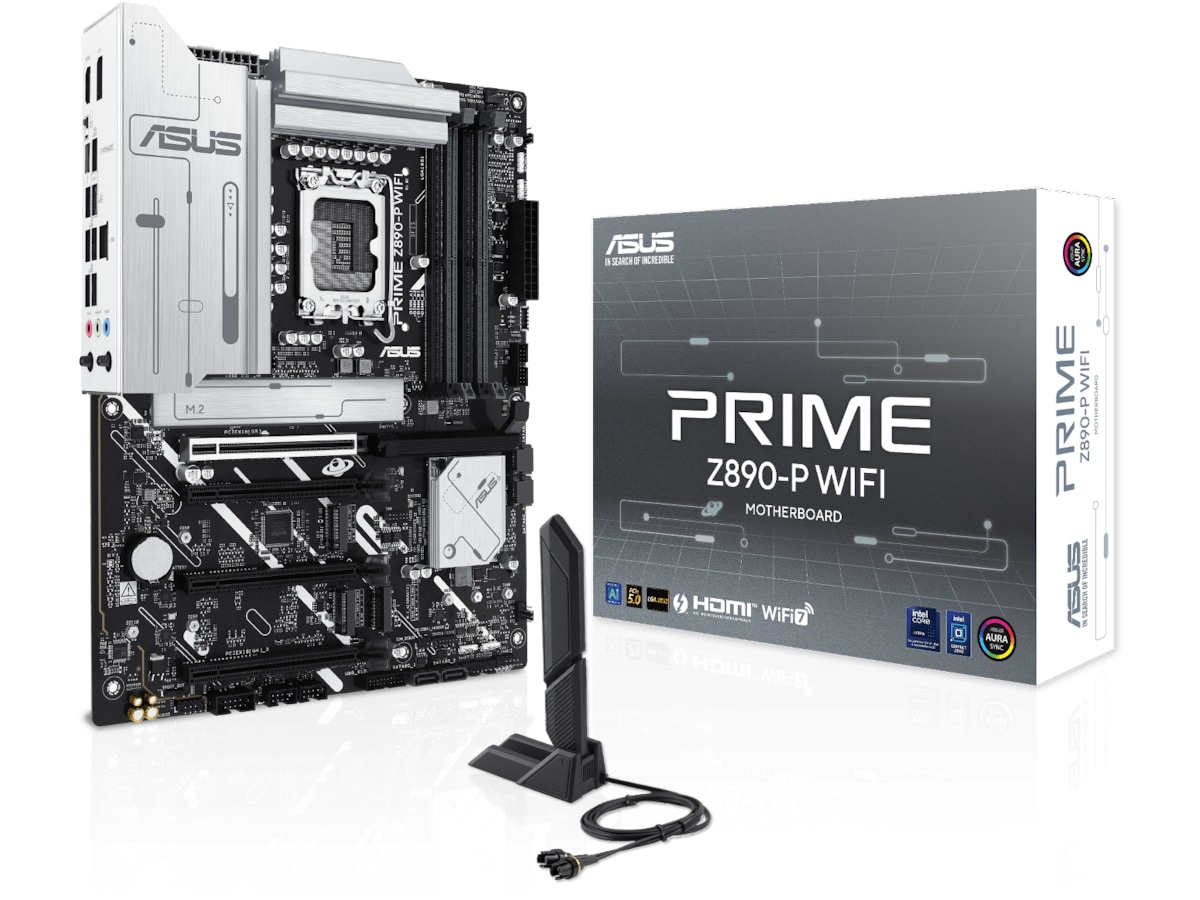

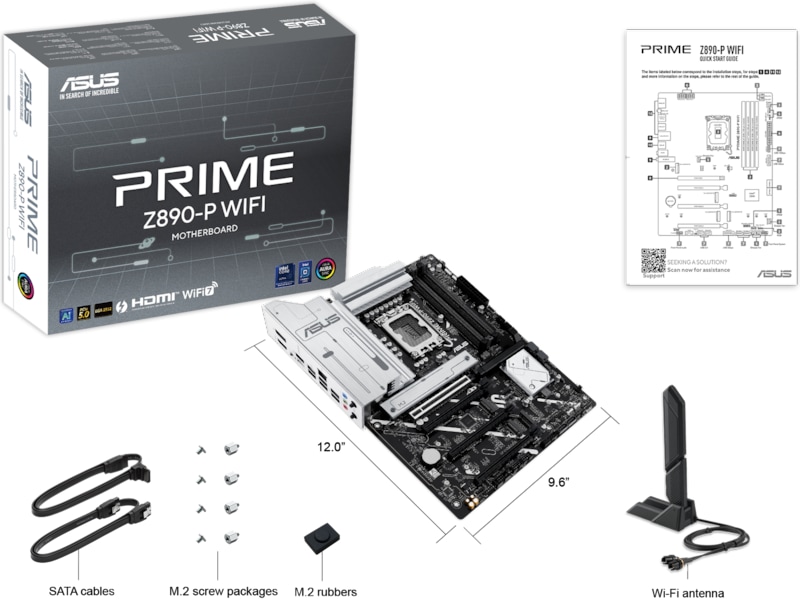

| Inkluderet tilbehør | ASUS Wi-Fi Q-antenna, 1 x M.2 gummipakke, 2 x M.2 skruepakke |
| Egenskaber | Intel Extreme Memory Profiles (XMP), Dobbelt kanal hukommelses arkitektur |
|---|
| Dataforbindelsesprotokol | IEEE 802.11b, IEEE 802.11a, Ethernet, Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), Gigabit Ethernet, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11ac, 2.5 Gigabit Ethernet, Fast Ethernet |
|---|---|
| Netværk | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet |
| Ekspansionsåbninger | 1 x PCIe 5.0 x16, 1 x M.2 socket (2280 M.2 åbning), 2 x PCIe 4.0 x16 (x4-modus), 1 x CPU, 4 x DIMM 288-pins, 2 x M.2 socket (2280/22.110 M.2 Key M-åbning), 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning), 1 x PCIe 4.0 x16 (x1 modus) |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA, PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

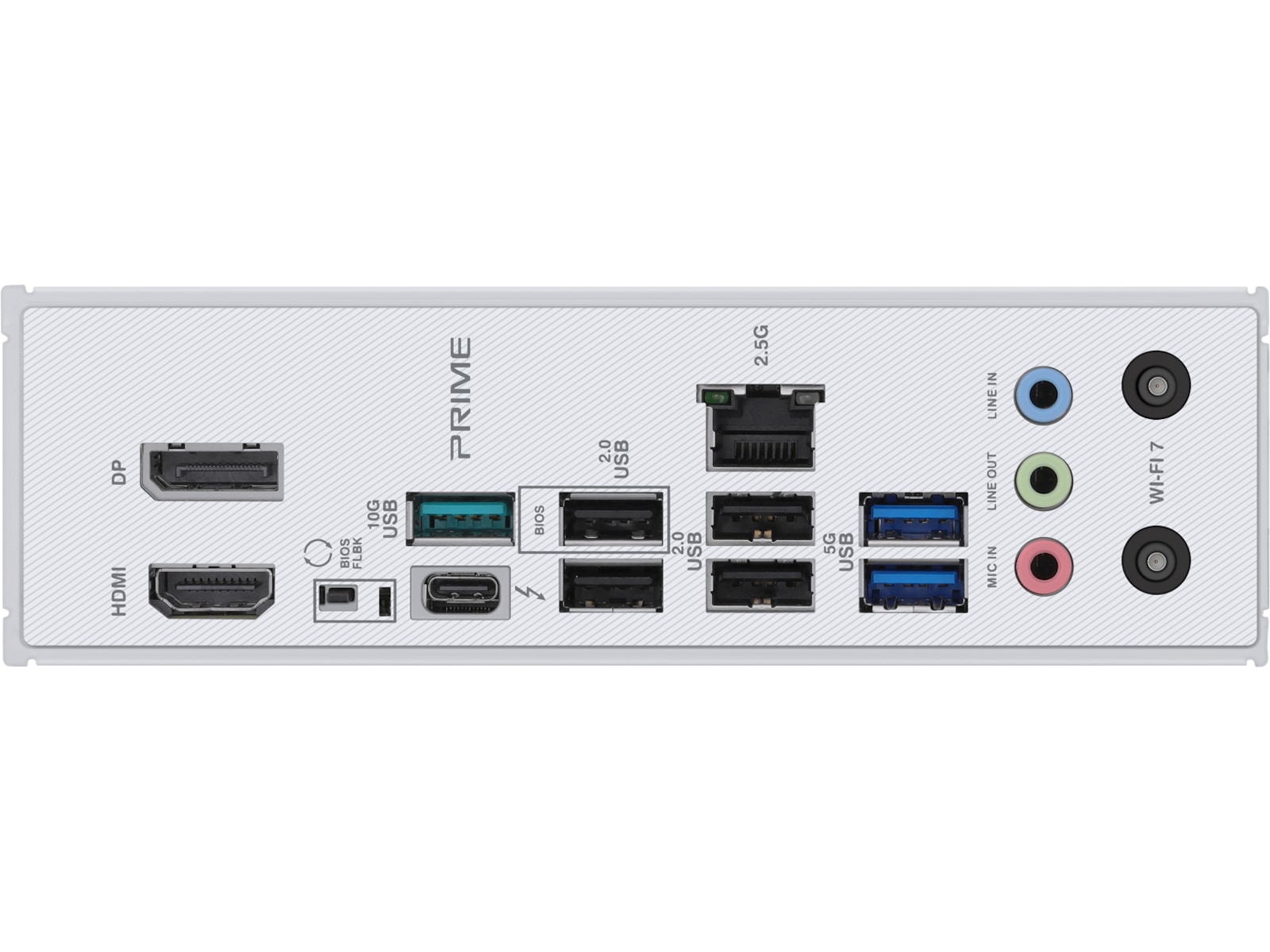

| Interface | 1 x HDMI, 1 x mikrofon - mini-jack, 4 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x audio linje-ud - mini-jack, 1 x Thunderbolt 4/DisplayPort/USB4, 1 x LAN (2.5Gigabit Ethernet), 1 x audio linje-ind - mini-jack, 1 x DisplayPort, 2 x antenne, 1 x USB 3.2 Gen 2 |
|---|
| Interne interfaces | 1 x seriel - intern stik, 1 x audio - intern stik, 1 x USB-C 3.2 Gen 2 - intern stik, 1 x Thunderbolt 4 - intern stik, 1 x SPI - intern stik, 4 x USB 2.0 - intern stik, 4 x USB 3.2 Gen 1 - intern stik, 1 x SPDIF ud - intern stik |
|---|
| Software inkluderet | TurboV Core, WinRAR (40 days trial), ASUS AI Advisor, ASUS CPU-Z, Norton 360 Deluxe (60 dages prøvetid), ASUS DriverHub, ASUS GlideX, Armoury Crate, ASUS Fan Xpert 4 |
|---|
