| Produktlinje | MSI |
|---|---|

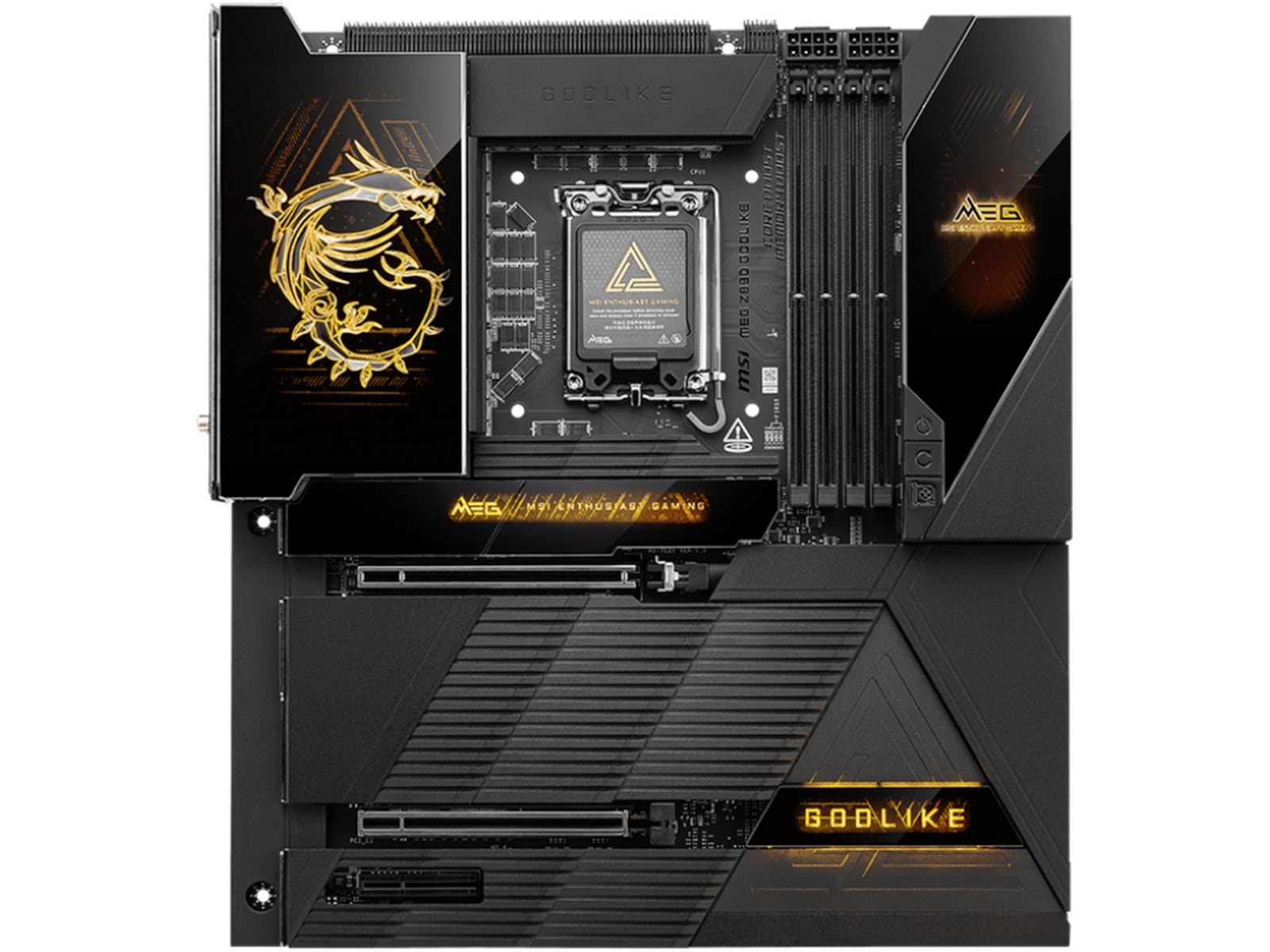

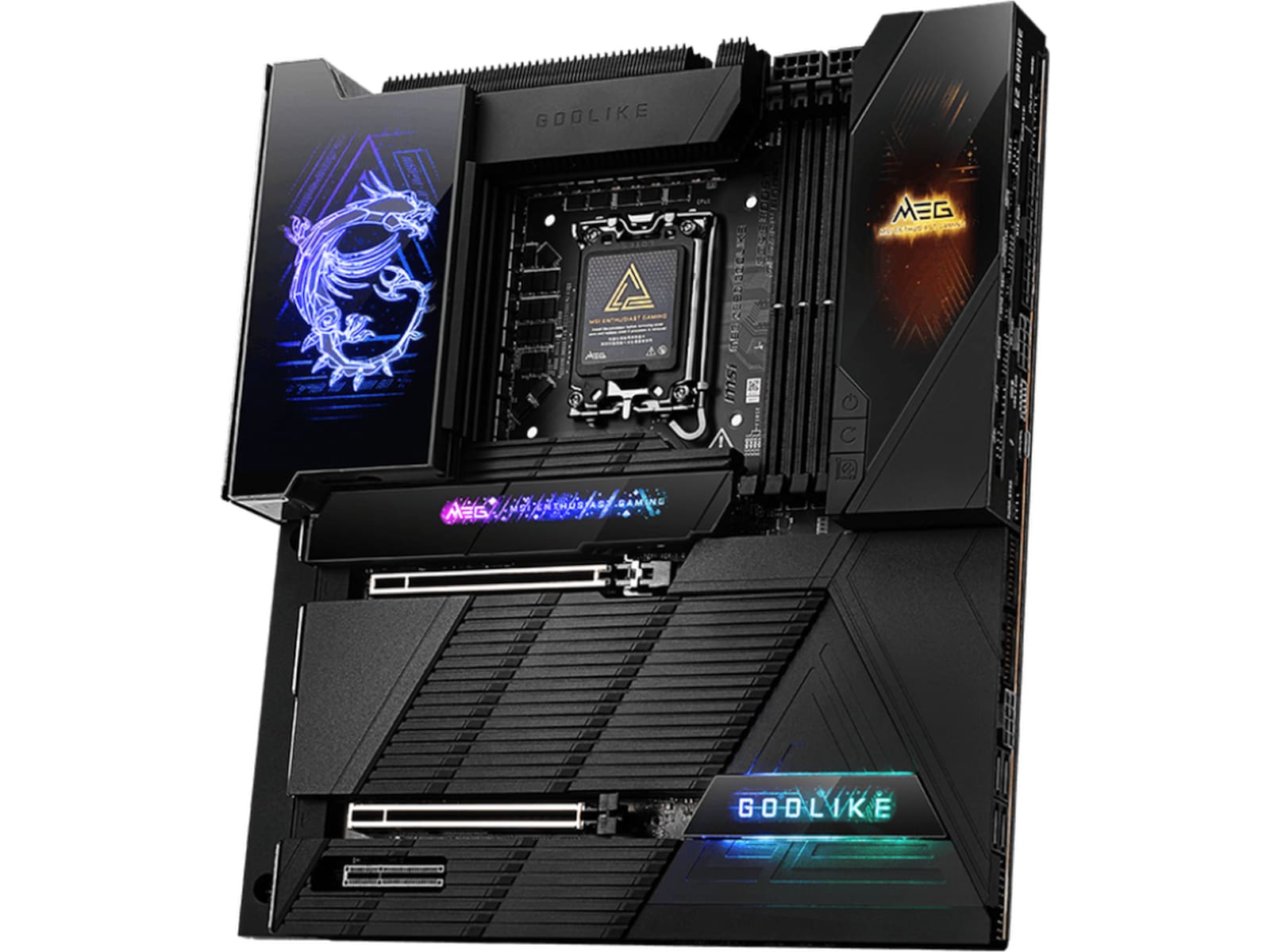

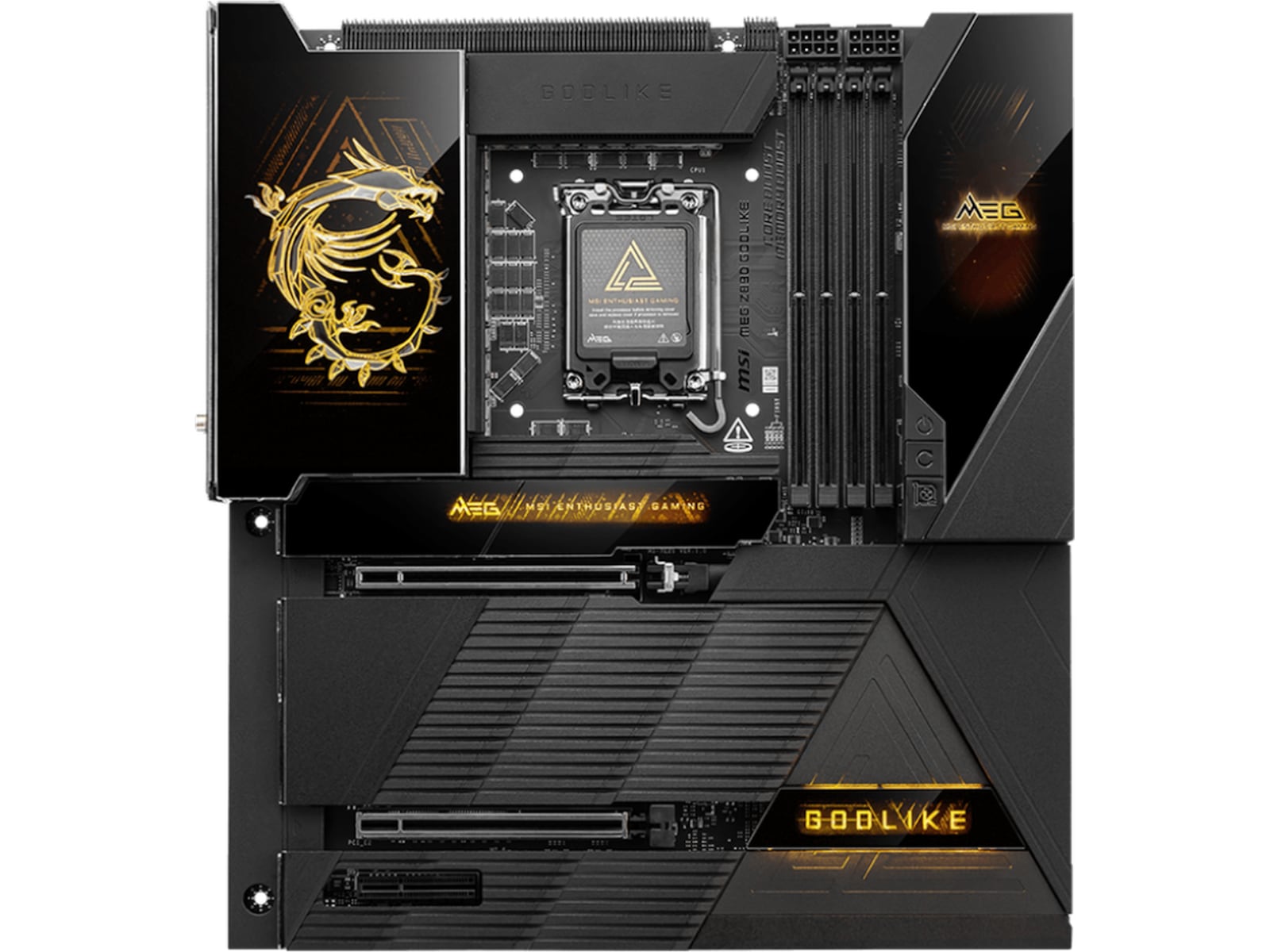

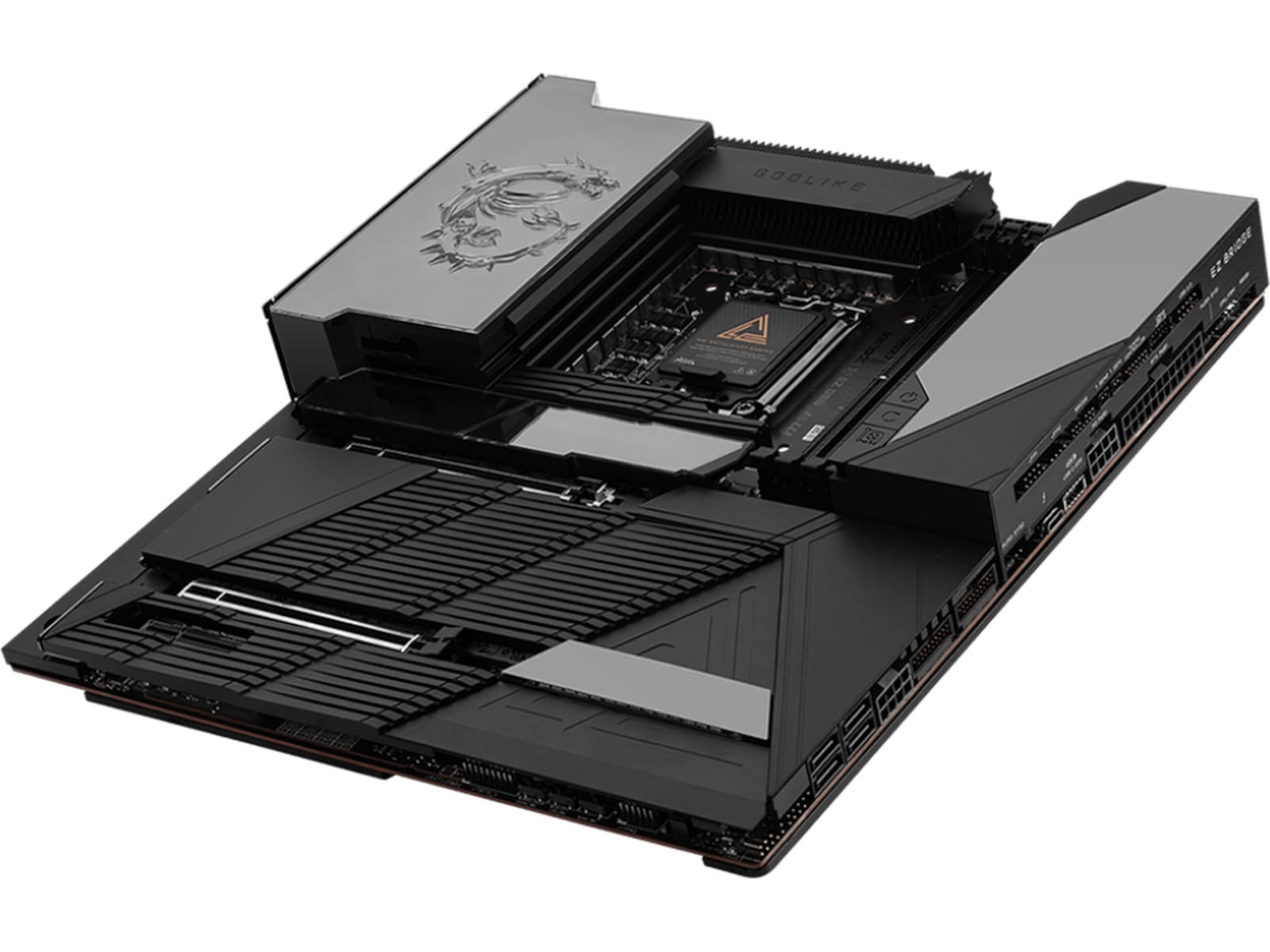

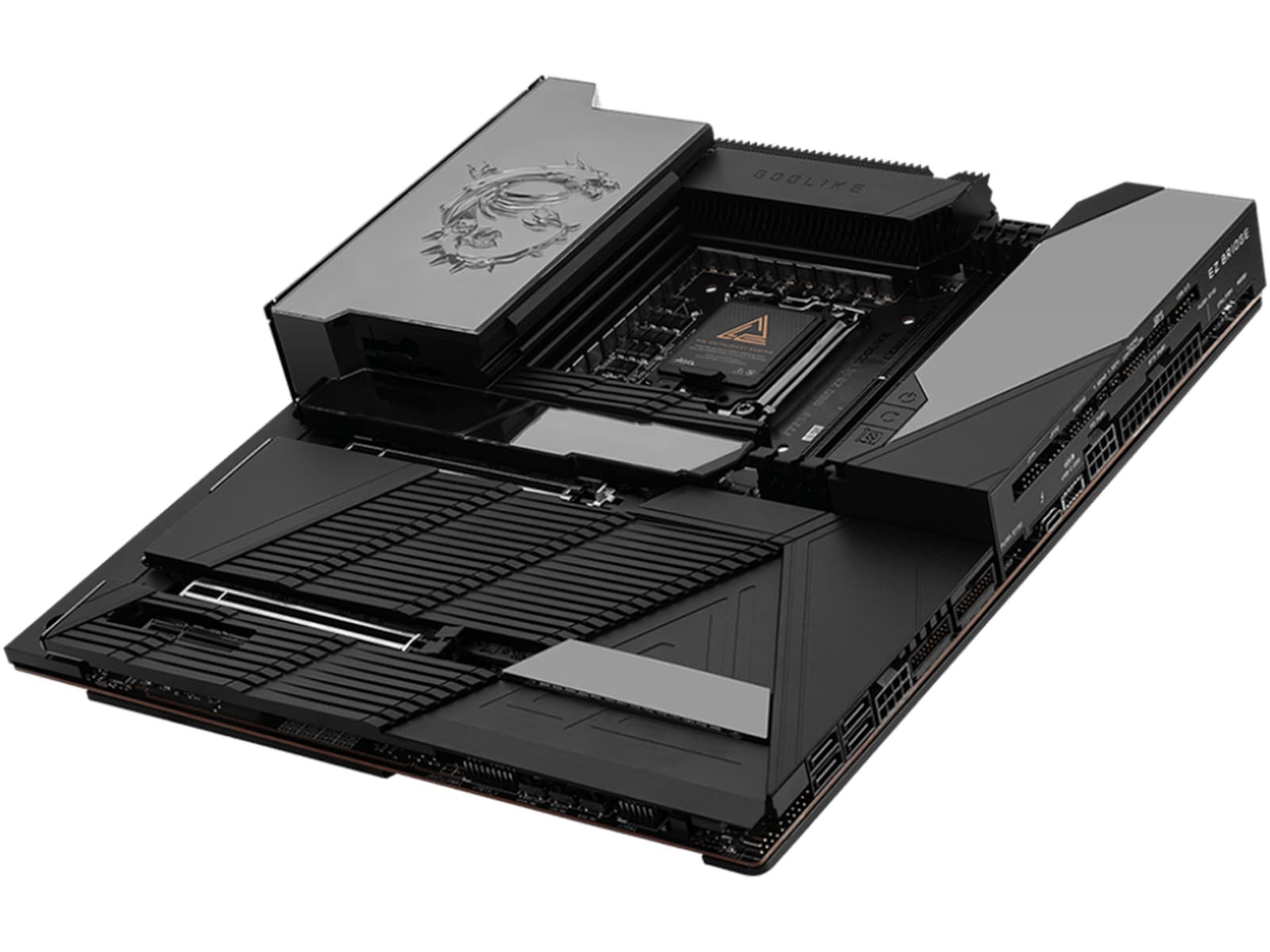

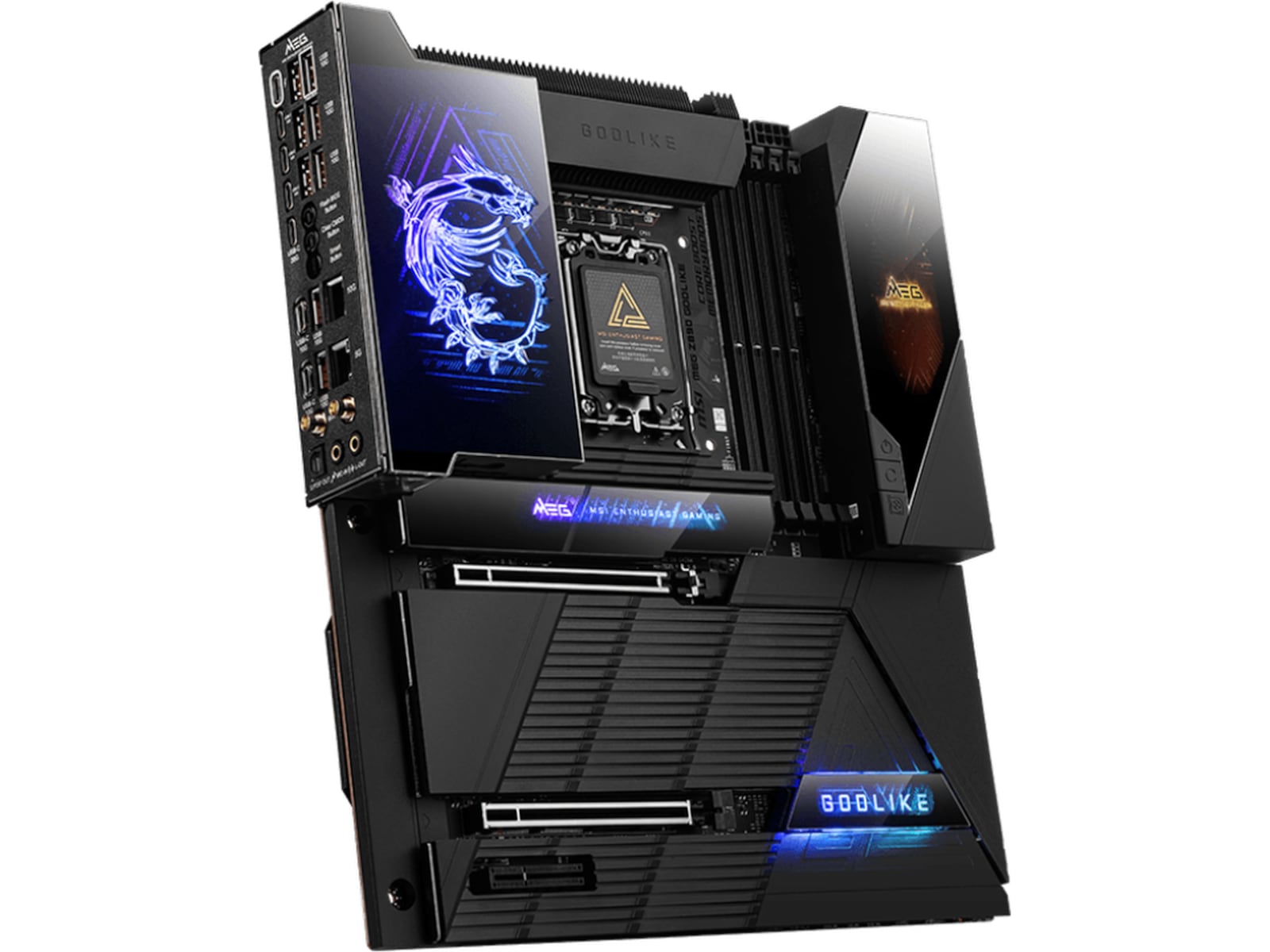

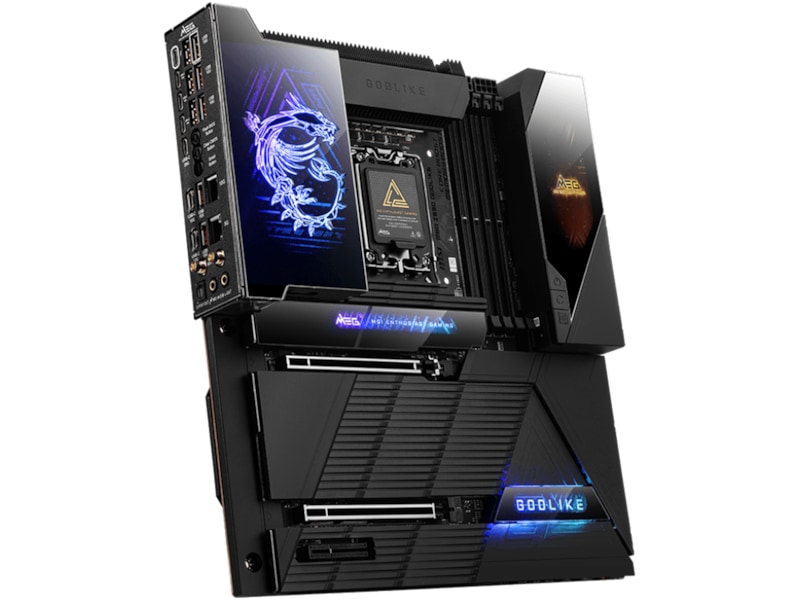

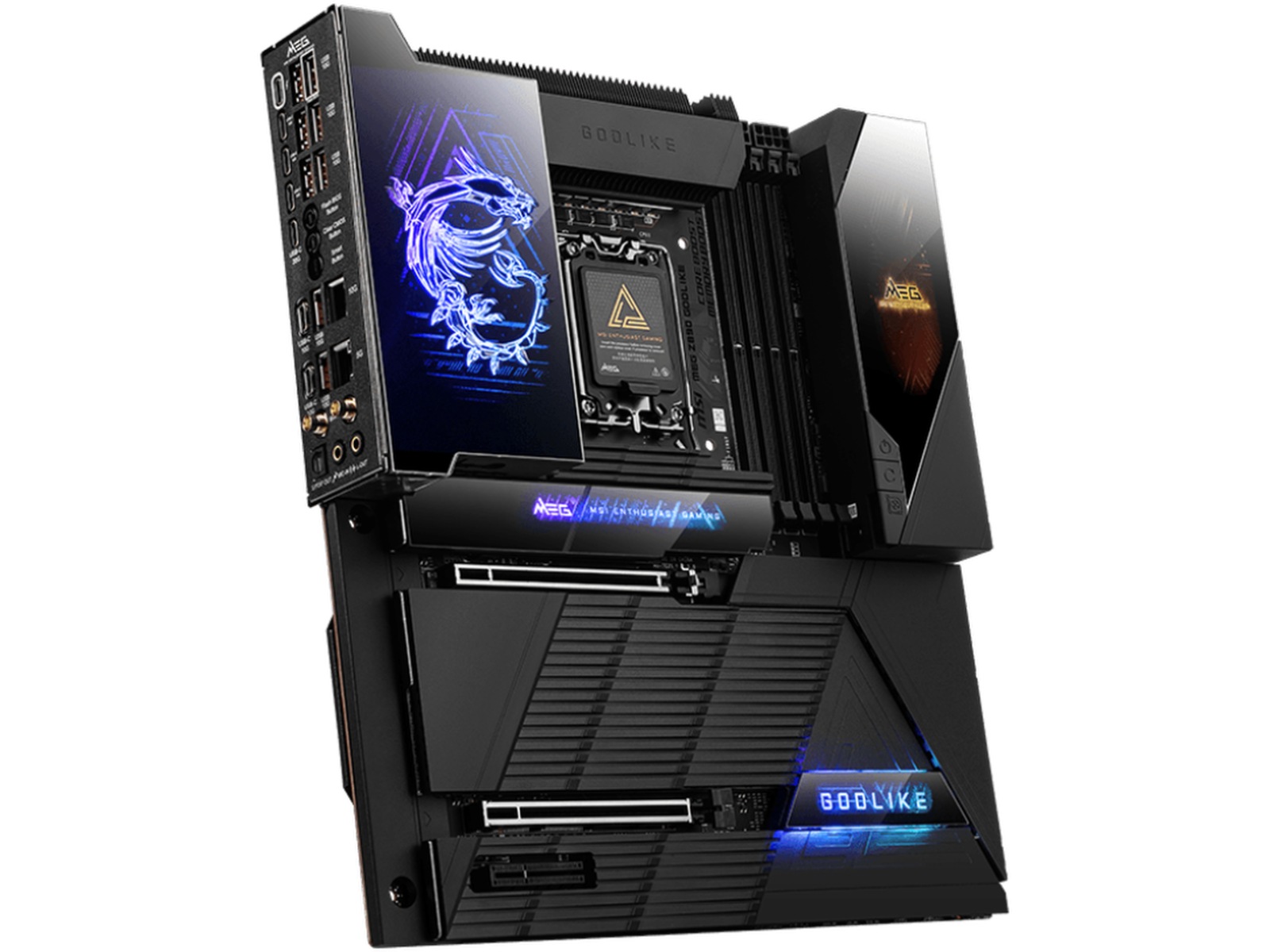

| Model | MEG Z890 GODLIKE |
| Producentens garanti (måneder) | 36 |
| EAN | 4711377260770 |
| Kommentarer om kompatible processorer | Understøtter Intel Core Ultra-processorer (Serie 2) |
|---|---|
| Chipsættype | Intel Z890 |
| Understøttet RAM-teknologi | DDR5 SDRAM |
| Understøttet RAM (registreret eller buffered) | Ikke bufferet |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Model | Udvidet ATX |
| Processor-socket | LGA1851 sokkel |
| RAM Slots | 4 DIMM åbninger |
| Strømkontakter | 2 x 8-pins ATX12V stikforbindelser, 8-pins PCI Express strøm-stikforbindelse, 24-pin hovedstrøm-konnektor |
| RAM-hastighed understøttet | 4600 MHz (O.C.), 2400 MHz, 3200 MHz, 3200 MHz (O.C.), 3600 MHz (O.C.) |
| Lagringsporte | 4 x SATA-600 (RAID), 8 x M.2 |
|---|---|
| USB / FireWire portkonfiguration (samlekasser) | 1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| USB / FireWire portkonfiguration (aktiv) | 1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 5 x USB-C 3.2 Gen 2 + 8 x USB 3.2 Gen 2 |
| Lagring | Serial ATA-600 (RAID), M.2 åbning |
| USB/FireWire | USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2 |
| Type | Grafik adapter (CPU påkrævet) |
|---|
| Type | Lydkort |
|---|---|
| Audio | High Definition Audio (8 kanaler) |
| Overensstemmelsesstandarder | High Definition Audio |
| Audio codec | Realtek ALC4082 / ESS ES9219Q |
| Netværk controller | Marvell AQC113CS / Intel Killer E5000B |
|---|---|
| Dataforbindelsesprotokol | IEEE 802.11n, IEEE 802.11a, 2.5 Gigabit Ethernet, Bluetooth 5.4, IEEE 802.11g, IEEE 802.11ax (Wi-Fi 6E), Fast Ethernet, IEEE 802.11b, IEEE 802.11ac, Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), Gigabit Ethernet |
| Netværk | 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet |
| Pakkedetaljer | Boks |
|---|---|
| Produkttype | Bundkort |
| Hardware egenskaber | MSI Audio Boost 5, Flash BIOS-knap, Clear CMOS Button, DIY Friendly Design, EZ LED control, 2oz Copper PCB, EZ M.2 Sheild FROZR II, Dr.MOS MOSFET, 10 Layer PCB, Frozr Heatsink Design, OC Engine, MSI Core Boost, EZ magnetisk M.2, 110 A Power Stage, Dynamic Dashboard III, Smart Button, 26+2+1+1 fase strømdesign, Frozr AI Cooling, MSI Memory Boost, EZ M.2 Clip II, EZ PCIe frigivelse, Debug LED, Dobbeltsidet M.2 Shield FROZR |
|---|
| Egenskaber | Intel Extreme Memory Profiles (XMP) 3.0, Dobbelt kanal hukommelses arkitektur |
|---|
| Ekspansionsåbninger | 4 x M.2 socket (2260/2280 M.2 Key M-åbning), 1 x M.2 socket (2242/2280 M.2 Key M-åbning), 1 x PCIe 5.0 x16, 1 x M.2 socket (Key E), 1 x M.2 socket (2280/22.110 M.2 Key M-åbning), 4 x DIMM 288-pins, 2 x M.2 socket (2280 M.2 Key M-åbning), 1 x PCIe 4.0 x4, 1 x CPU, 1 x PCIe 5.0 x8 (x8-modus) |
|---|
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -stikforbindelser: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

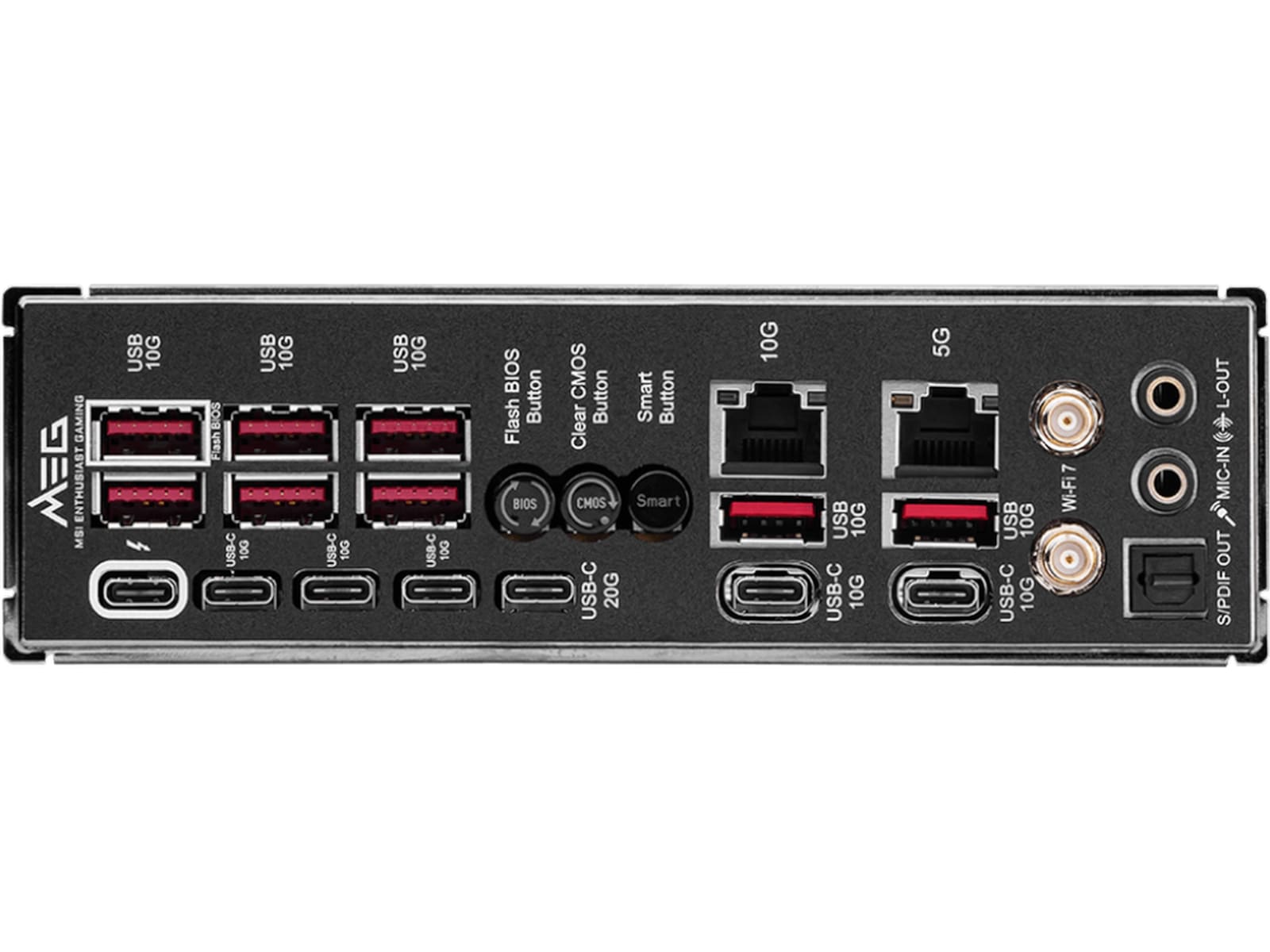

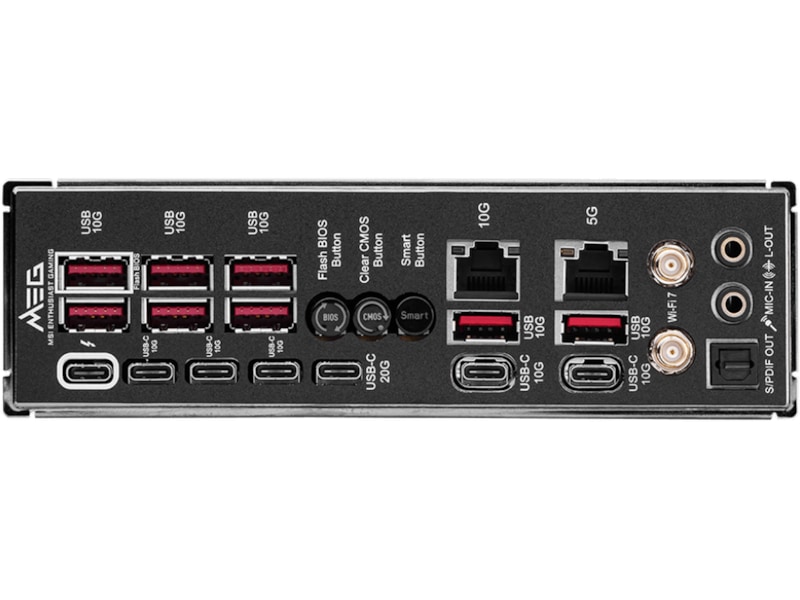

| Interface | 1 x Thunderbolt 4, 1 x USB-C 3.2 Gen2x2, 1 x audio linje-ud - mini-jack, 1 x mikrofon - mini-jack, 1 x LAN (5Gigabit Ethernet), 1 x SPDIF-ud, 8 x USB 3.2 Gen 2, 2 x antenne, 5 x USB-C 3.2 Gen 2, 1 x LAN (10Gigabit Ethernet) |
|---|
| Interne interfaces | 1 x USB-C 3.2 Gen 2x2 - intern stik, 4 x USB 2.0 - intern stik, 4 x USB 3.2 Gen 1 - intern stik, 1 x Thunderbolt 4 - intern stik, 1 x audio - intern stik, 1 x Thunderbolt 5 - intern stik, 1 x SPI - intern stik |
|---|
